HIKVISION 4CH HYBRID LIGHT CCTV KIT – CAT6
Complete kit overview
This Hikvision 4-channel Hybrid Light CCTV kit is perfect for small homes, shops and offices that need full-colour night-time footage without moving to IP. Using CAT6 cabling with passive video baluns provides a neat, structured installation while the Hybrid cameras deliver colour at night using built-in white LEDs. Paired with a reliable 4-channel Turbo HD DVR, this kit gives you consistent 1080p recording, smart detection and tidy cable management.

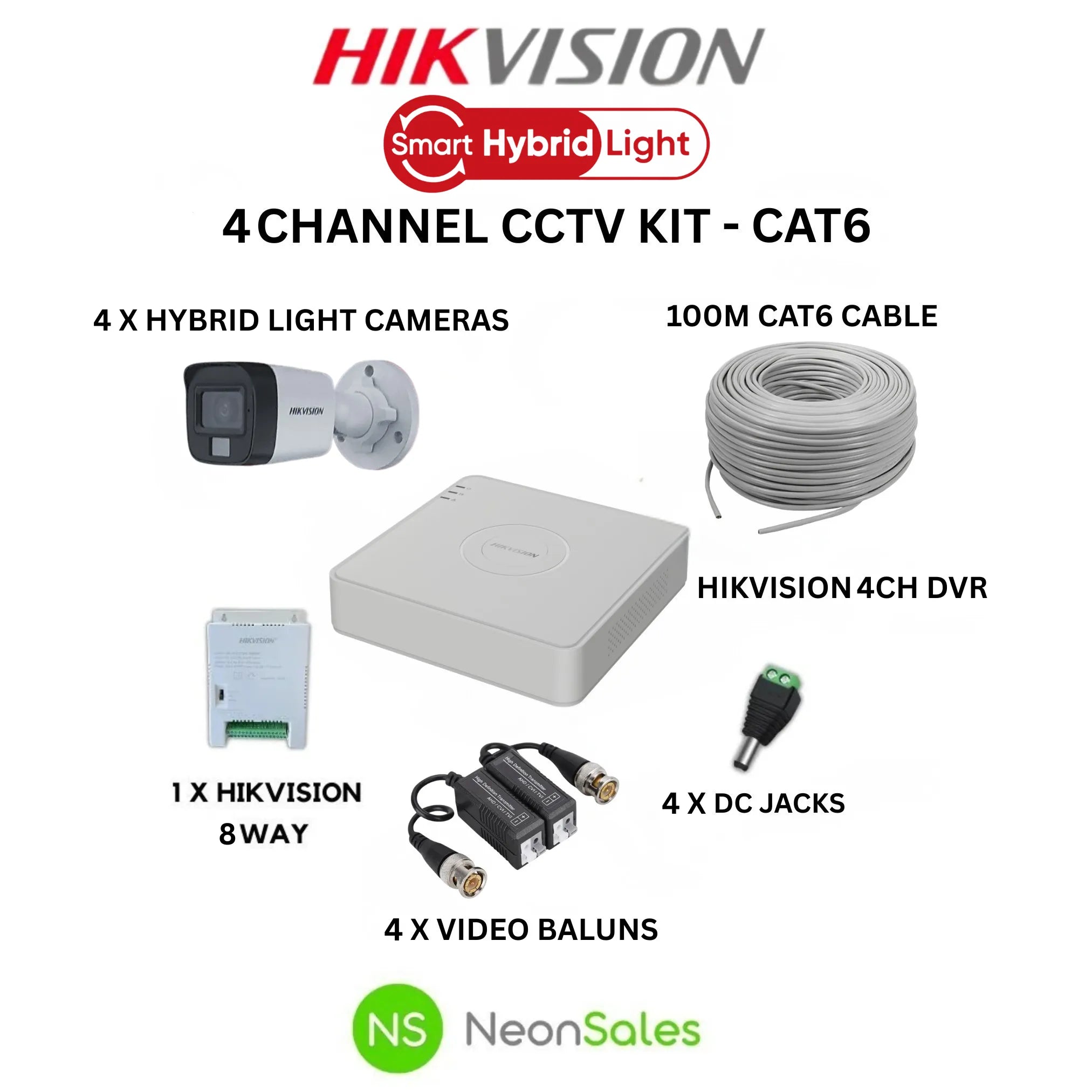

What’s included
- 4 × Hikvision 2MP Hybrid Light Bullet Cameras (2.8mm)
- 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
- 1 × 100m CAT6 Cable
- 4 × Full HD Passive Video Baluns
- 4 × Male DC Power Jacks
- 1 × 8-Way 12V CCTV Power Supply
Individual component breakdowns

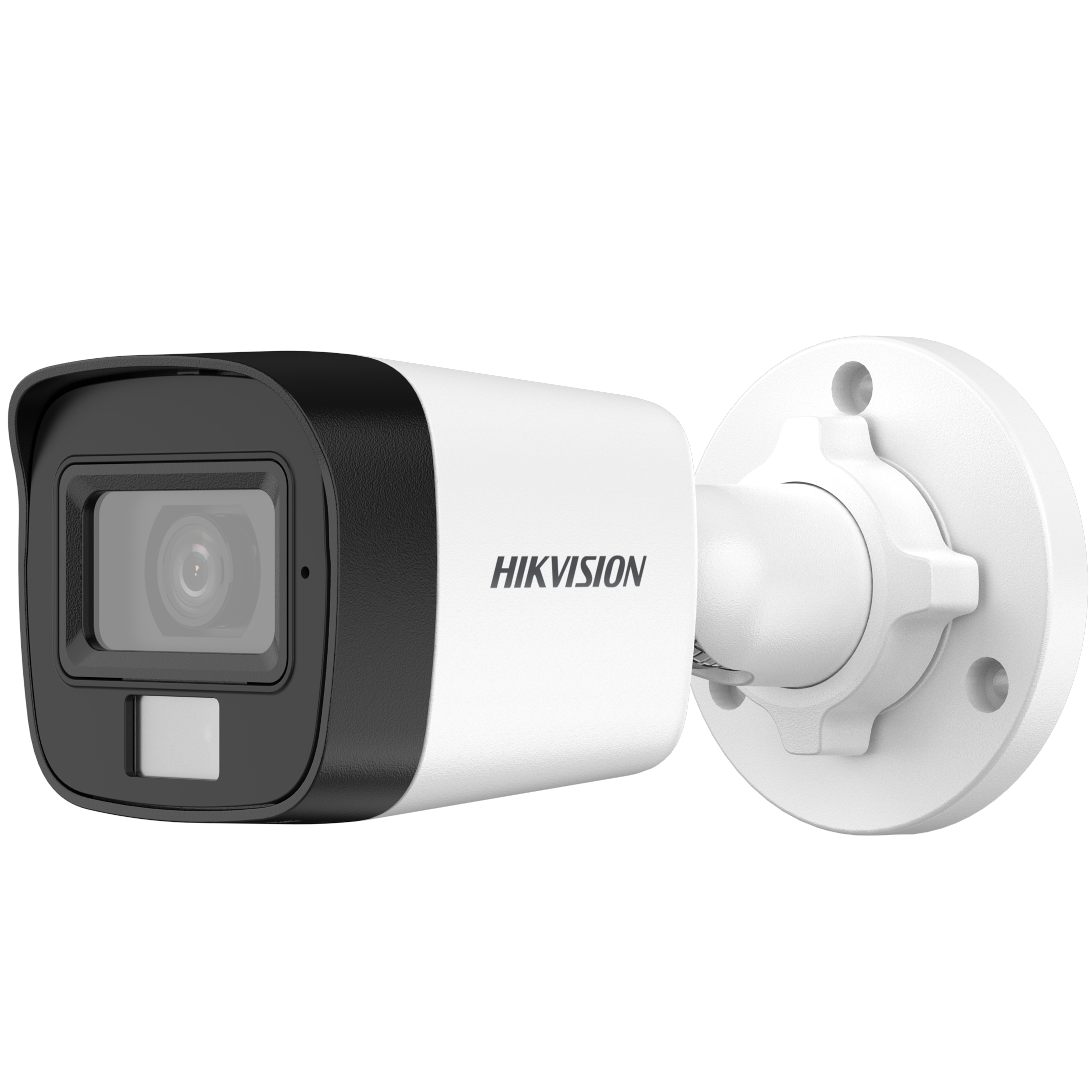

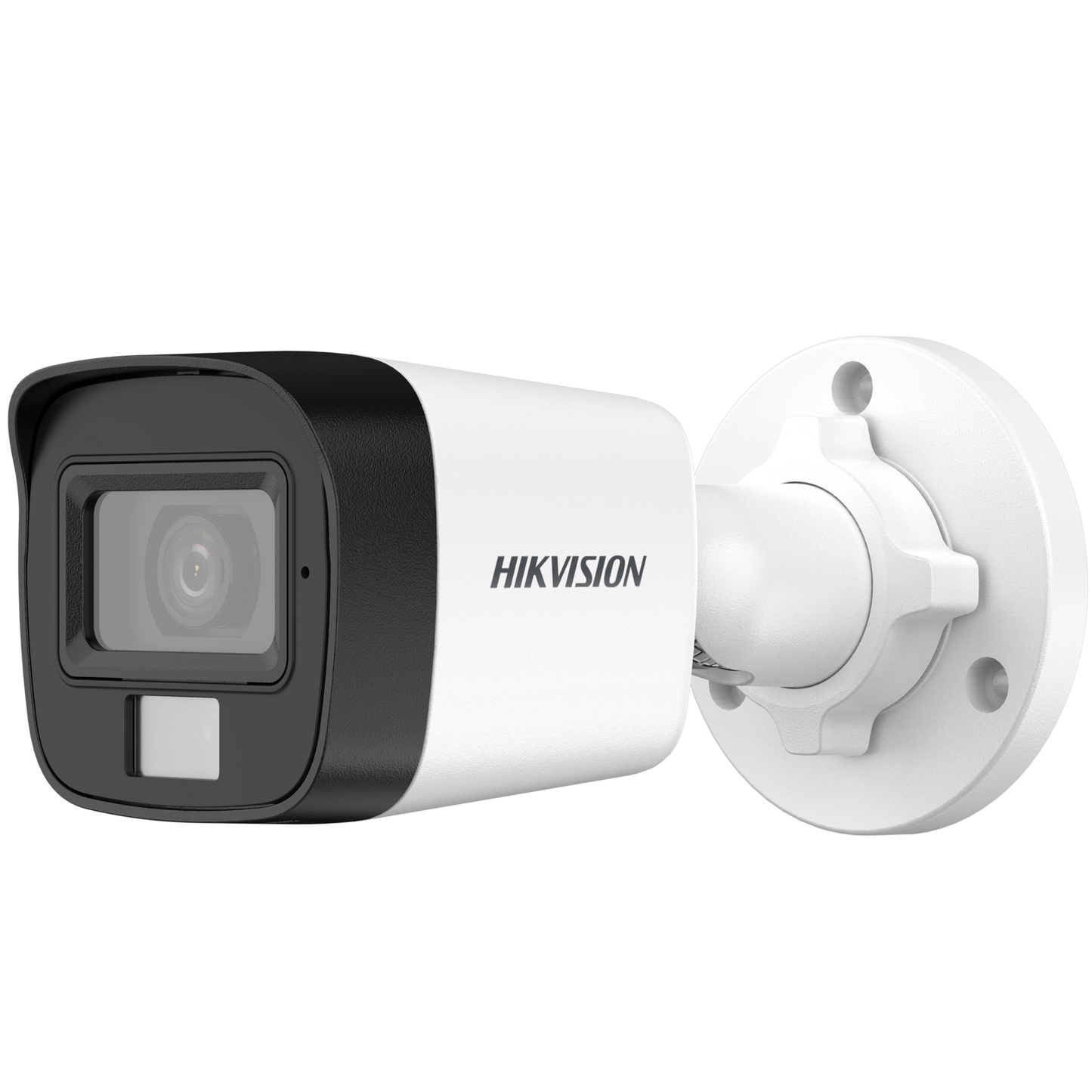

1. Hikvision 2MP Hybrid Light Bullet Camera (2.8mm)
Hybrid Light cameras combine Full HD imaging with built-in white LEDs, allowing full-colour footage in low light and IR fallback where needed. The 2.8mm lens gives wide coverage for entrances, driveways and small outdoor areas.
Specifications
- Resolution: 2MP (1920×1080)
- Lens: 2.8mm fixed
- Illumination: Hybrid white LED + IR (colour night vision with IR fallback)
- Video formats: TVI / AHD / CVI / CVBS (switchable)
- Image features: DWDR, BLC, 2D-DNR
- Ingress protection: IP67
- Operating temperature: −40°C to +60°C
- Power: 12V DC
2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)
Compact Turbo HD recorder supporting four analogue channels and one IP input. Offers efficient compression, HDMI/VGA outputs and smart detection features to reduce false alarms.
Specifications
- Channels: 4 analogue + 1 IP
- Supported formats: HDTVI, AHD, CVI, CVBS
- Video outputs: HDMI & VGA (1080p)
- Compression: H.265 Pro+ / H.265 / H.264
- Storage: 1 × SATA (up to 4TB)
- Smart detection: Motion Detection 2.0 (human/vehicle filtering)
- Network: 10/100 Mbps Ethernet
- Power: 12V DC
3. 100m CAT6 Cable
CAT6 cabling is used to carry HD analogue video via baluns and provides a future-proof backbone for IP upgrades. Neat to route in conduits and ideal for small installations.
Uses & Benefits
- Runs HD analogue video using baluns
- Suitable for future IP/PoE upgrades
- Neat routing through conduits and trays

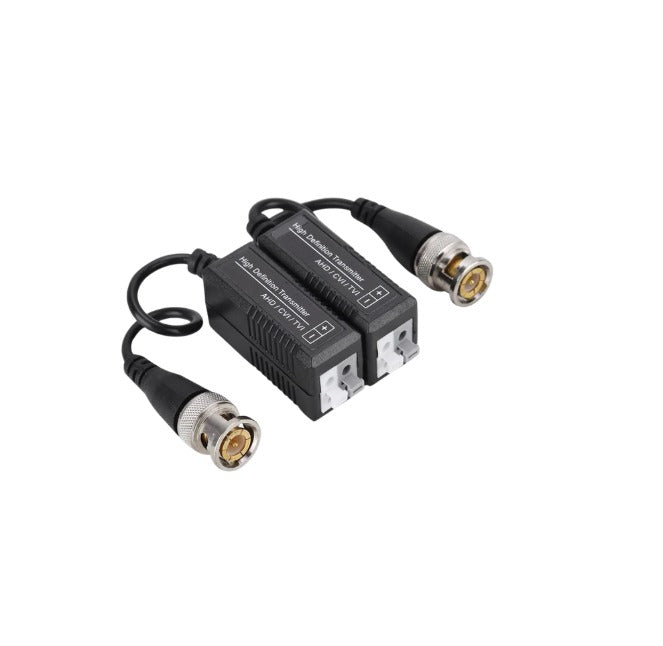

4. Full HD Passive Video Baluns (×4)
Passive baluns convert BNC video to run over CAT6 and back again at the DVR end. One balun is fitted at each end per camera.
Specifications
- Supports: AHD / CVI / TVI
- Range: Up to 300m (AHD/CVI); approx. 200m (TVI)
- Compatibility: CAT5/5e/6 UTP
- Protection: Built-in surge / EMI protection
- Connectors: BNC male → UTP screw terminal

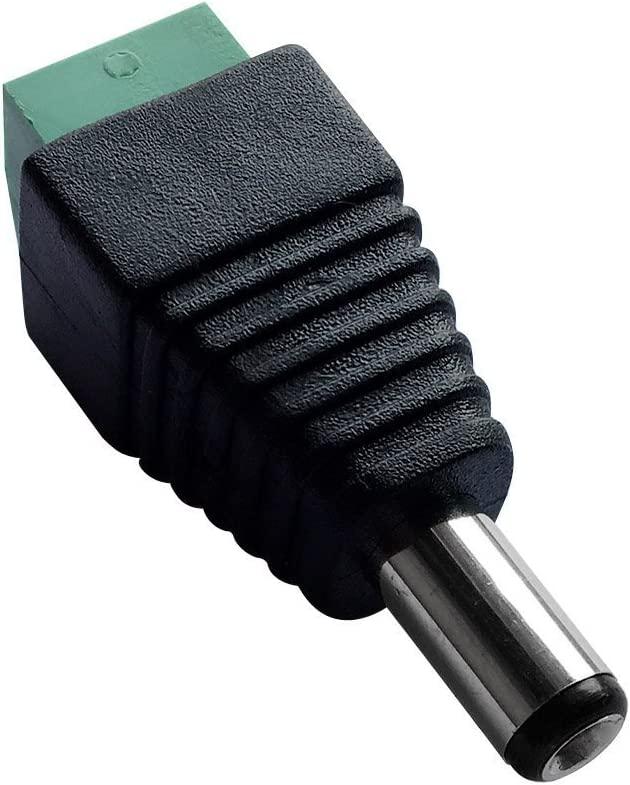

5. Male DC Power Jacks (×4)
Standard male DC barrel connectors used to deliver 12V DC to each camera from the power supply.
Specifications
- Type: Male DC barrel connector
- Voltage: 12V DC
6. 8-Way 12V CCTV Power Supply
Reliable multi-output power supply suitable for small installations — provides stable power to multiple cameras and built-in protections to guard against electrical faults.
Specifications
- Output: 12V DC
- Channels: 8 outputs (1A per channel typical)
- Protections: Over-voltage, over-current, short-circuit
Installation Notes
- Use one twisted pair per camera and match pair polarity across both baluns.
- Keep CAT6 runs away from mains wiring to reduce interference.
- Weatherproof outdoor connectors with silicone or boots.
- Install the HDD in the DVR before powering up and update firmware after setup.
- Enable Hik-Connect for remote viewing and alerts.
Below are some optional add-ons for your 4 Channel Kit :
-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)
Ready to buy
This 4-channel Hybrid Light CCTV kit over CAT6 offers full-colour night surveillance, neat cable management and reliable Hikvision performance — ideal for small residential and commercial properties.
