HIKVISION 4CH EXIR CCTV KIT – RG59
Complete kit overview
This Hikvision 4-channel EXIR CCTV kit is built for homes and small businesses that want reliable, high-quality security without overcomplication. The system combines Full HD imaging, dependable night-vision and weather-sealed cameras, backed by a smart 4-channel DVR that supports both analogue and IP inputs. The setup runs on RG59 coaxial cable for stable, interference-resistant wired connections — ideal for local installations across South Africa.

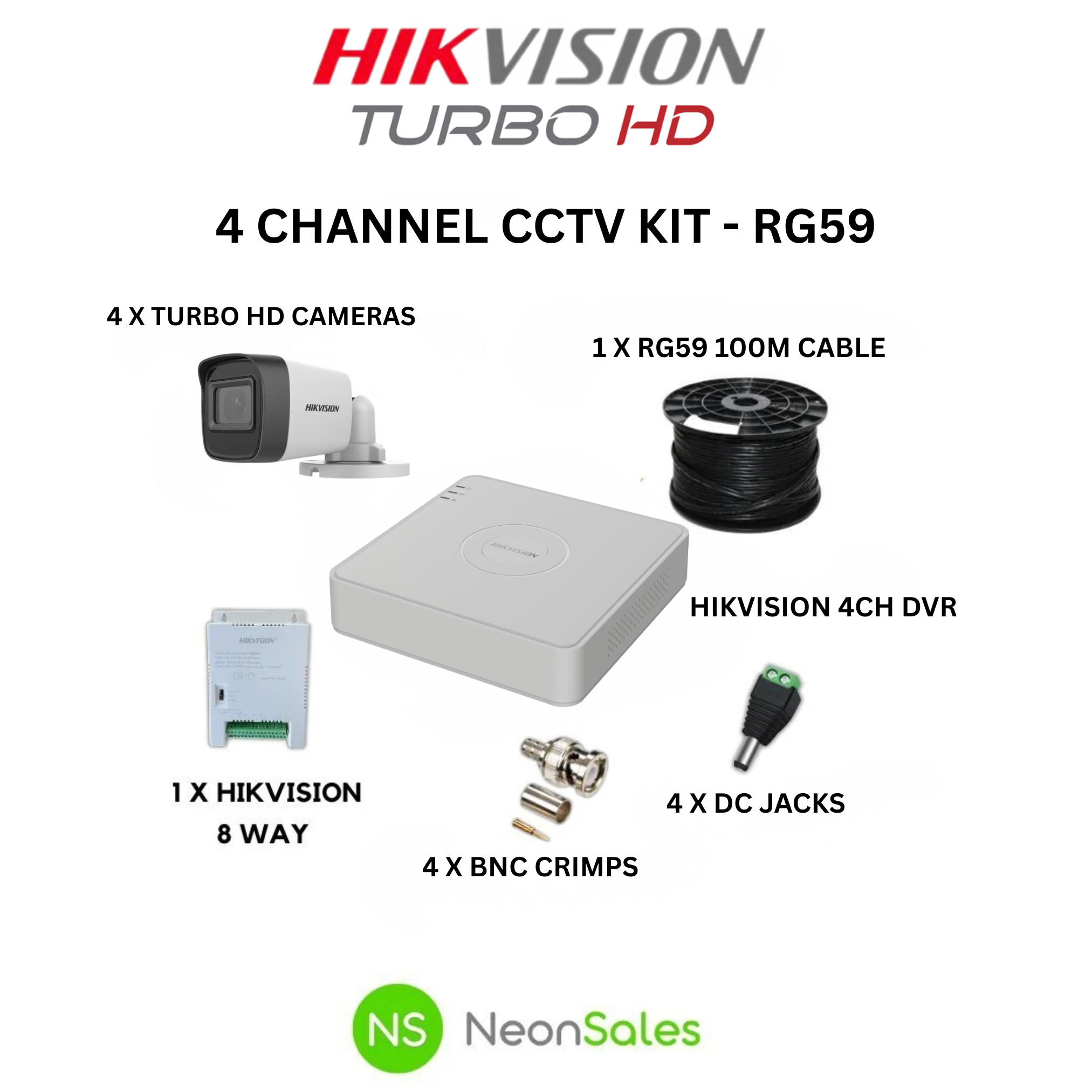

What’s included
- 4 × Hikvision 2MP EXIR Bullet Cameras (2.8mm)
- 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
- 1 × 100m Roll RG59 Coaxial Cable (CCA)
- 4 × BNC Crimp Connectors
- 4 × Male DC Power Jacks
- 1 × Hikvision 12V 5A CCTV Power Supply (DS-2FA1205-C8)
Why this kit?
With crisp 1080p recording, advanced motion detection and durable hardware, this kit provides the visibility and reliability you need to protect property, record vital footage and view remotely. It’s a balanced package for securing driveways, yards, garages, business frontages and indoor areas.
Individual component breakdowns

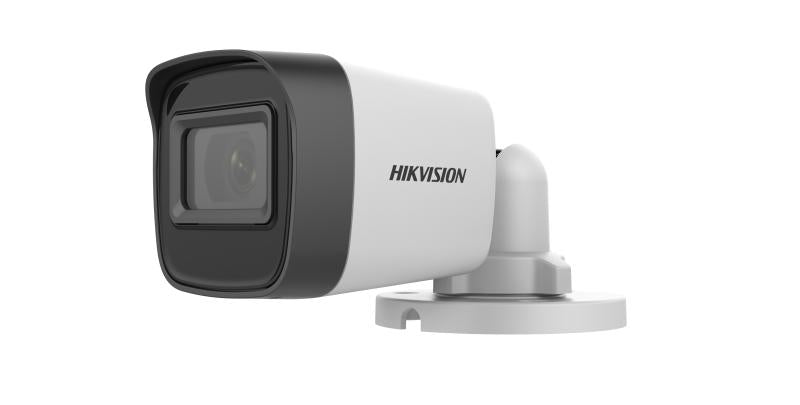

1. Hikvision 2MP EXIR Bullet Camera (2.8mm)
Compact Full HD bullet cameras with a wide field of view, strong daytime detail and EXIR infrared for clear night images. IP67-rated housing makes these cameras suitable for outdoor perimeter and entrance monitoring.
Specifications
- Resolution: 2MP (1920×1080)
- Lens: 2.8 mm fixed (wide-angle)
- Night vision: Up to 20 m EXIR
- Minimum illumination: 0.02 Lux; 0 Lux with IR
- Video formats: TVI / AHD / CVI / CVBS (switchable)
- Image features: DWDR, BLC, 2D-DNR
- Ingress protection: IP67
- Operating temperature: –40°C to +60°C
- Power: 12V DC

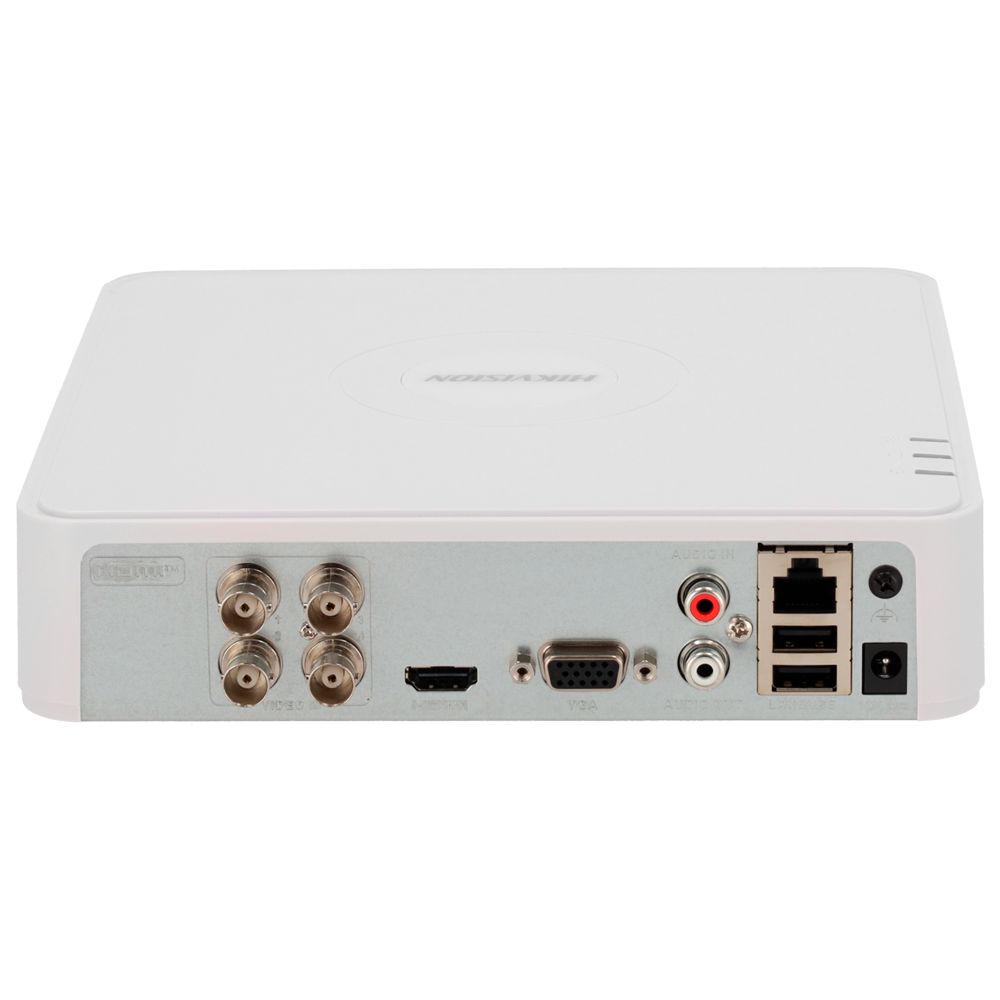

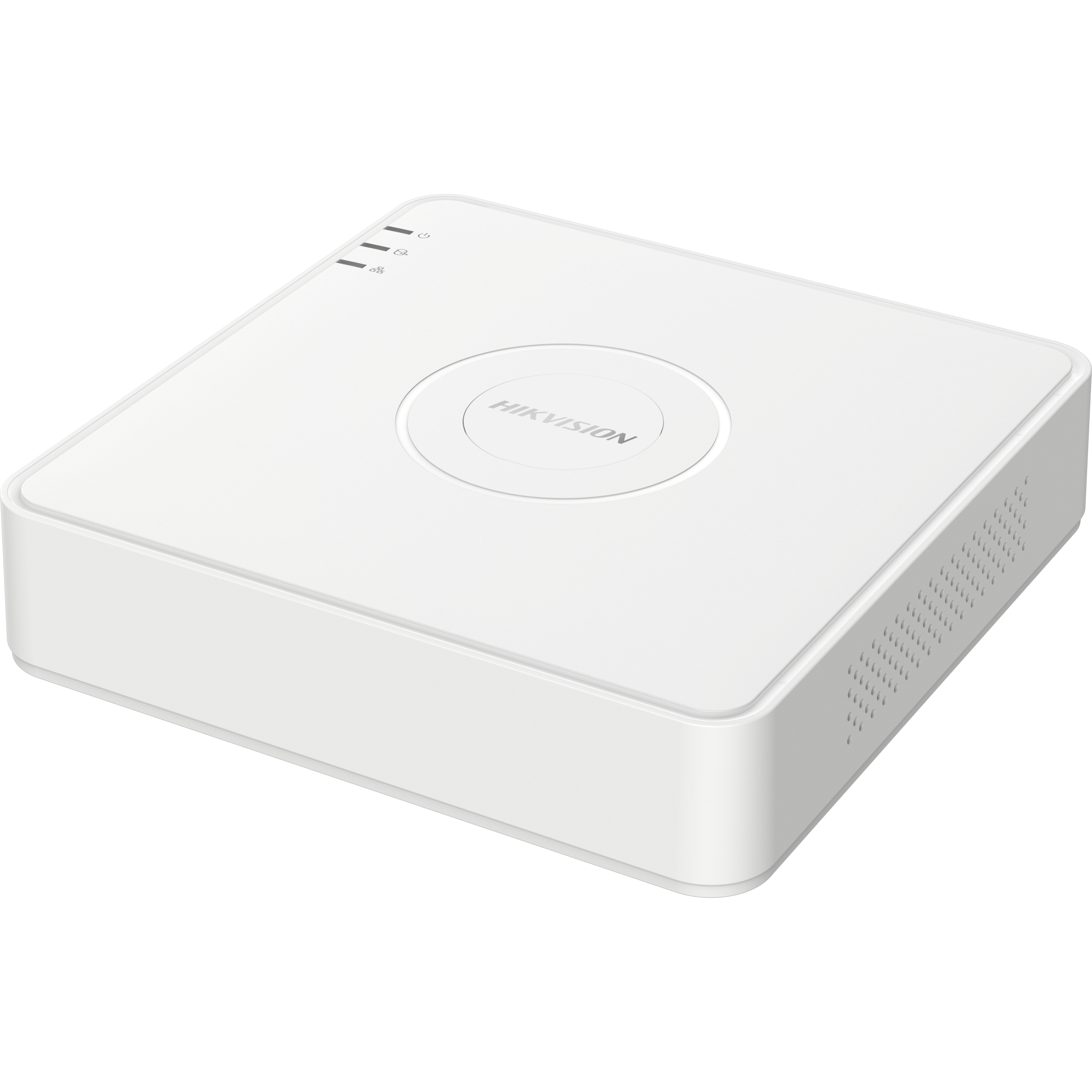

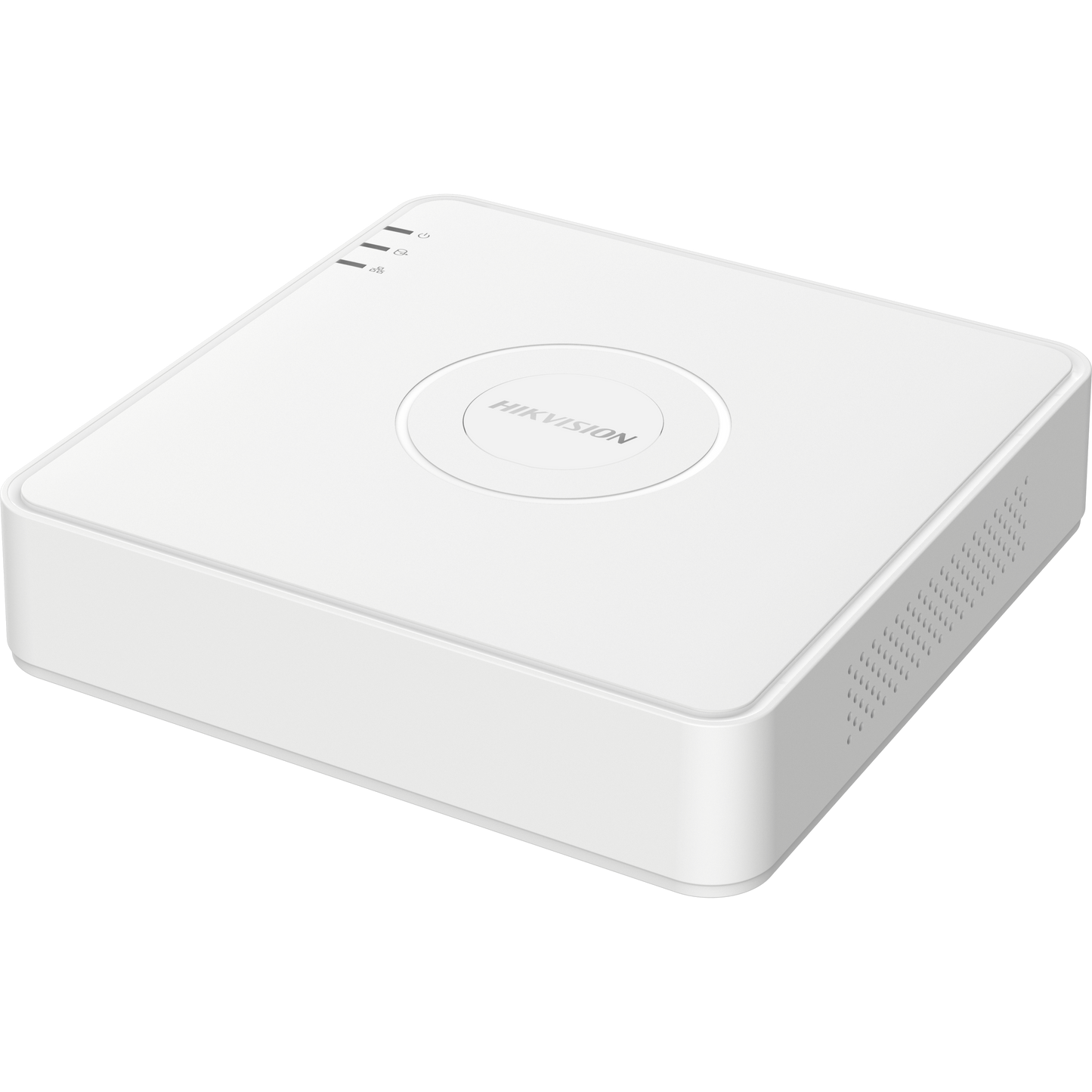

2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)
The DVR is the system’s control centre — supporting four analogue channels and an extra IP input for future expansion. It offers H.265 Pro+ compression, human/vehicle detection and HDMI/VGA outputs for local monitoring.
Specifications
- Channels: 4 Analogue + 1 IP (5 total inputs)
- Supported formats: HDTVI, AHD, CVI, CVBS
- Video output: HDMI & VGA (1080p)
- Compression: H.265 Pro+ / H.265 / H.264+ / H.264
- Storage: 1 × SATA HDD (up to 4TB)
- Smart features: Motion Detection 2.0 (human/vehicle filtering)
- Network: 10/100 Mbps Ethernet
- USB: 2 × USB 2.0
- Power: 12V DC
- Operating temperature: –10°C to +55°C

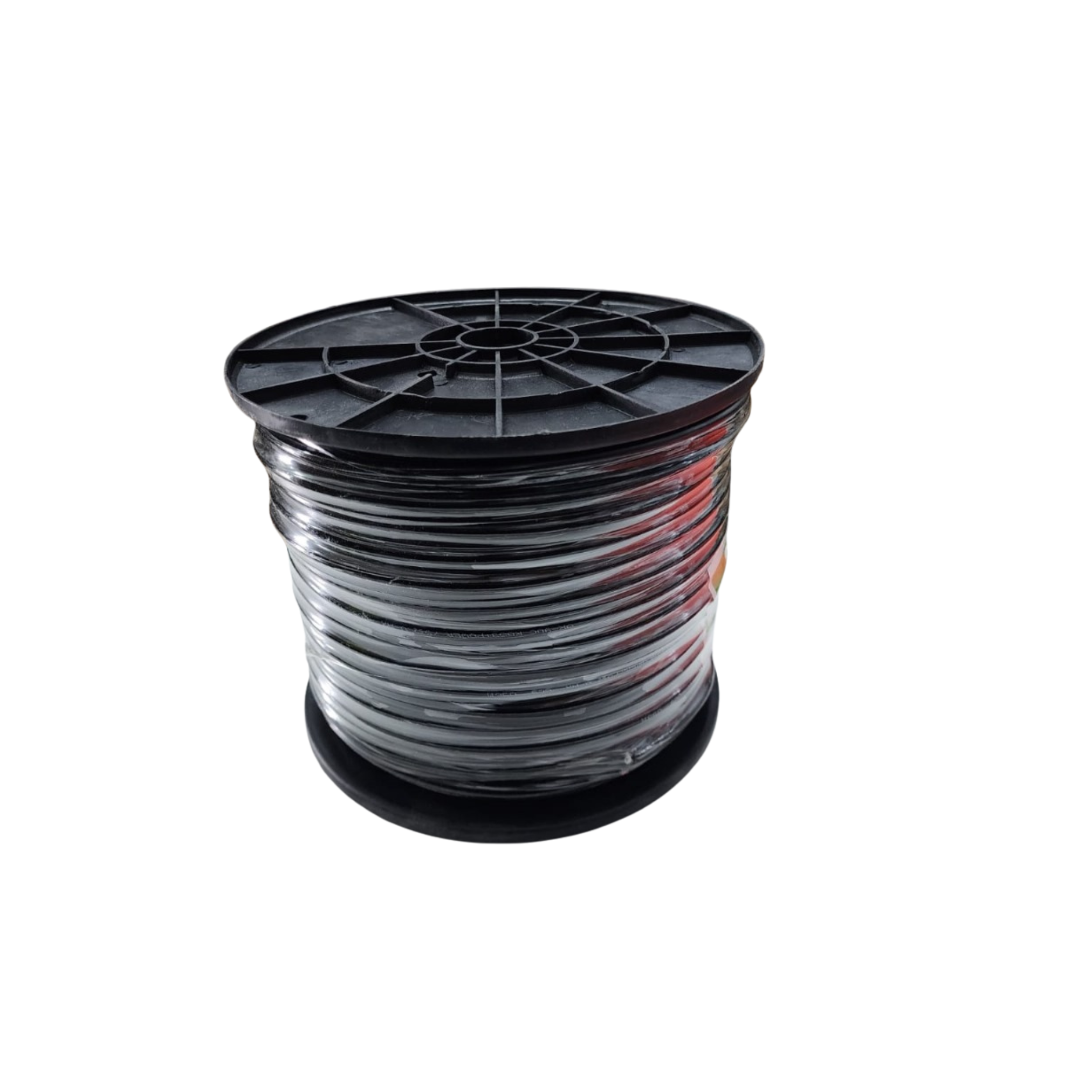

3. RG59 Coaxial Cable – 100m (CCA)
Standard 100 m roll of RG59 coaxial cable suitable for CCTV installations. Economical and widely used for analogue/HDTVI/CVI/AHD camera runs.
Specifications
- Cable type: RG59 (CCA conductor)
- Length: 100 m roll
- Impedance: 75 Ω
- Outer diameter: approx. 6 mm
- Suitable for: Analog CCTV, Turbo HD, TVI, CVI, AHD

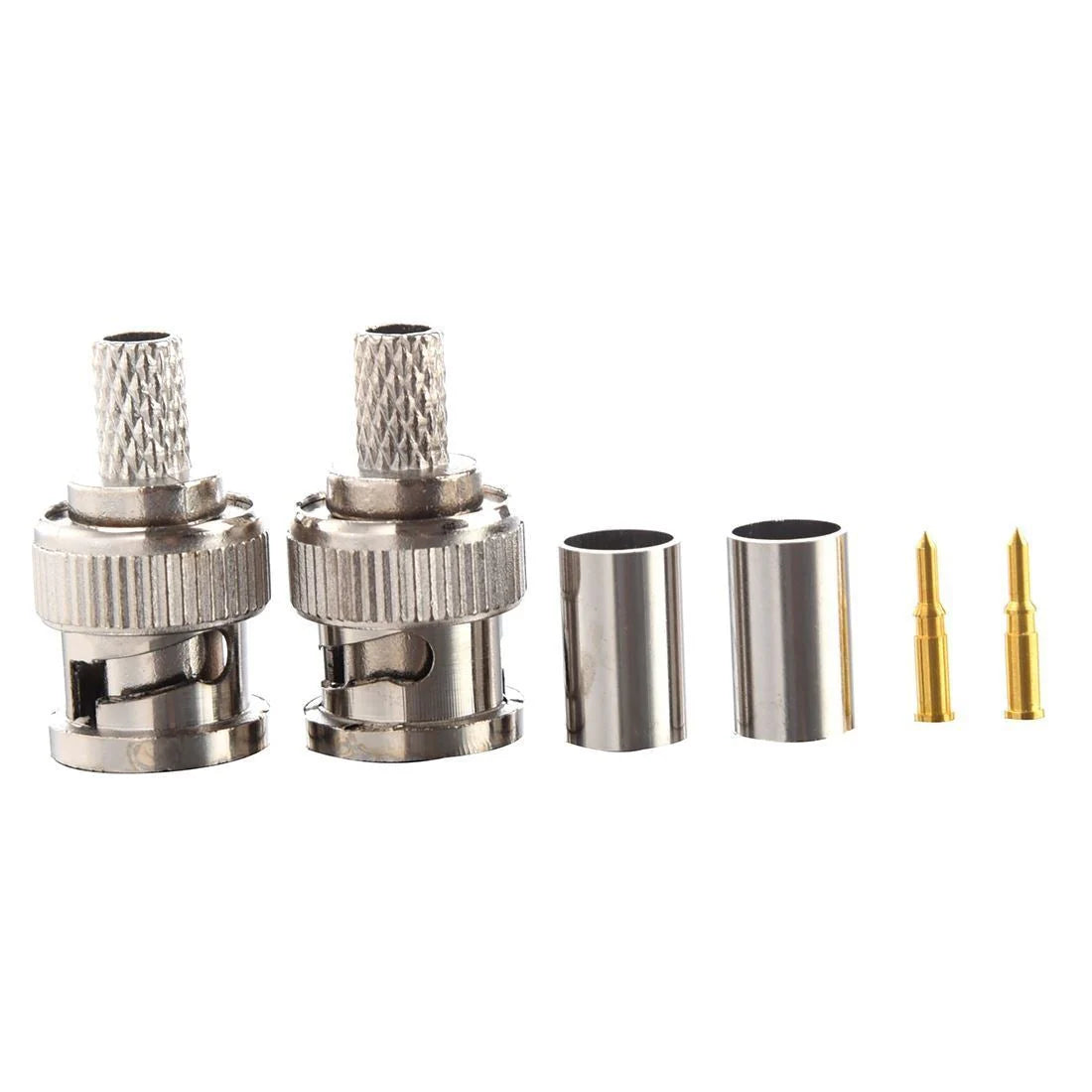

4. BNC Crimp Connectors (×4)
Professional crimp-style BNC connectors for secure video termination between RG59 cable and cameras/DVR.
Specifications
- Type: Male BNC (crimp)
- Cable compatibility: RG59 75 Ω
- Material: Nickel-plated body, gold-plated centre pin

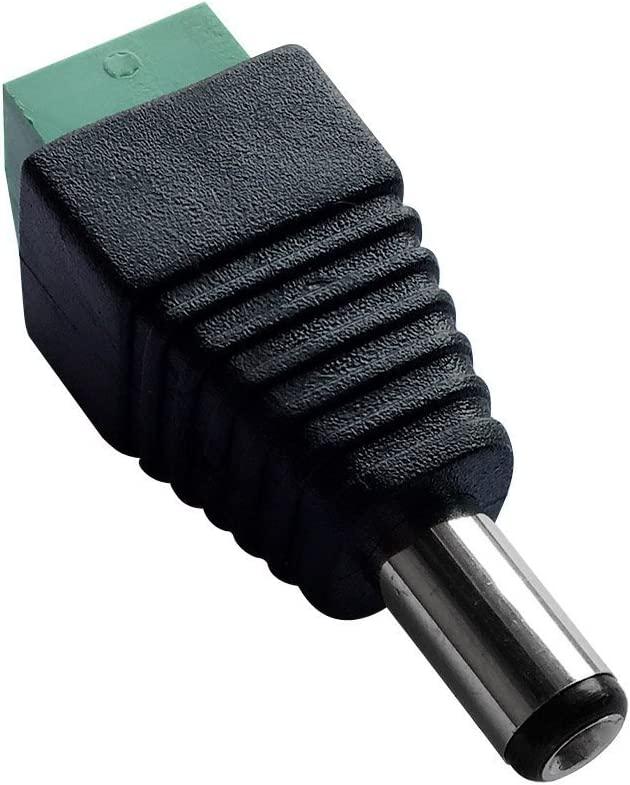

5. Male DC Power Jacks (×4)
Standard male DC barrel connectors used to supply 12V DC to each camera — robust and easy to service.
Specifications
- Type: Male DC barrel connector
- Rated voltage: 12V DC

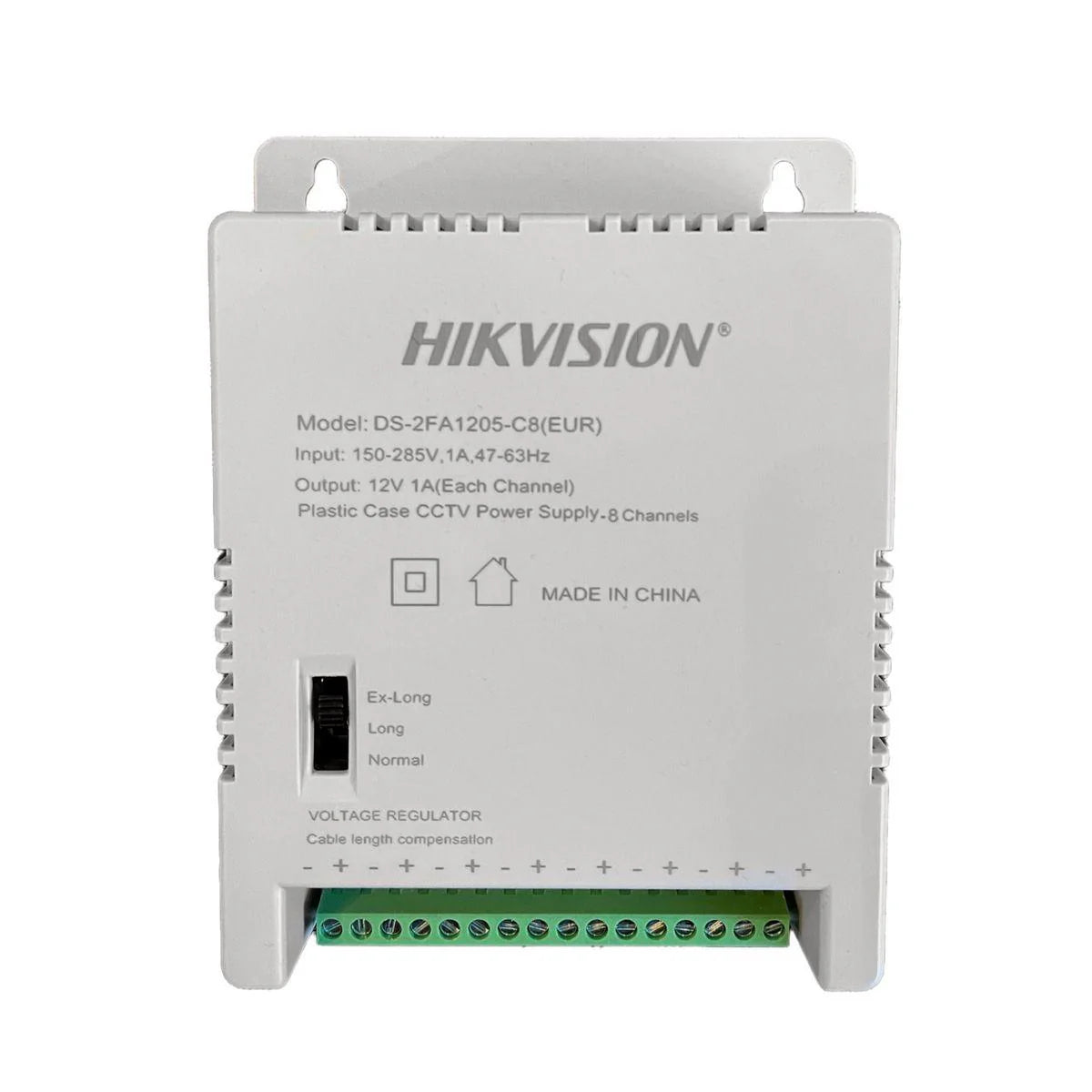

6. Hikvision 12V 5A CCTV Power Supply (DS-2FA1205-C8)
Multi-output power supply that delivers stable 12V DC to cameras with built-in protections against overloads and short circuits.
Specifications
- Output: 12V DC, 5A total
- Channels: 8 outputs (1A max per channel)
- Input voltage: 150–285V AC
- Protections: Over-voltage, over-current, short-circuit
Installation & tips
- Mount cameras at 2.5–3 m height and angle slightly downward to optimise coverage with the 2.8 mm lens.
- Keep RG59 runs under 100 m where possible to reduce signal attenuation; use proper conduit for outdoor runs.
- Terminate RG59 with quality crimp BNC connectors and protect outdoor joints with weather boots or silicone.
- Label camera feeds and power channels to simplify troubleshooting and future maintenance.
- Install the HDD in the DVR before powering up and update firmware after setup for best performance.
Below are some optional add-ons for your 4 Channel Kit :
-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)
Ready to buy
This kit is ready to install and ideal for anyone wanting a straightforward, reliable Full HD wired CCTV solution. Add it to your cart and secure your property with clear daytime detail and dependable night vision.
