HIKVISION 4CH EXIR CCTV KIT – CAT6
Complete kit overview
This Hikvision 4-channel EXIR CCTV kit is designed for installers and homeowners who prefer running CCTV over CAT6 cabling rather than coax. Using CAT6 with passive HD video baluns provides a neat, flexible and future-proof installation, with clear 1080p recording and strong EXIR night vision. Ideal for small homes, offices and retail spaces where tidy cable routing and upgrade potential matter.

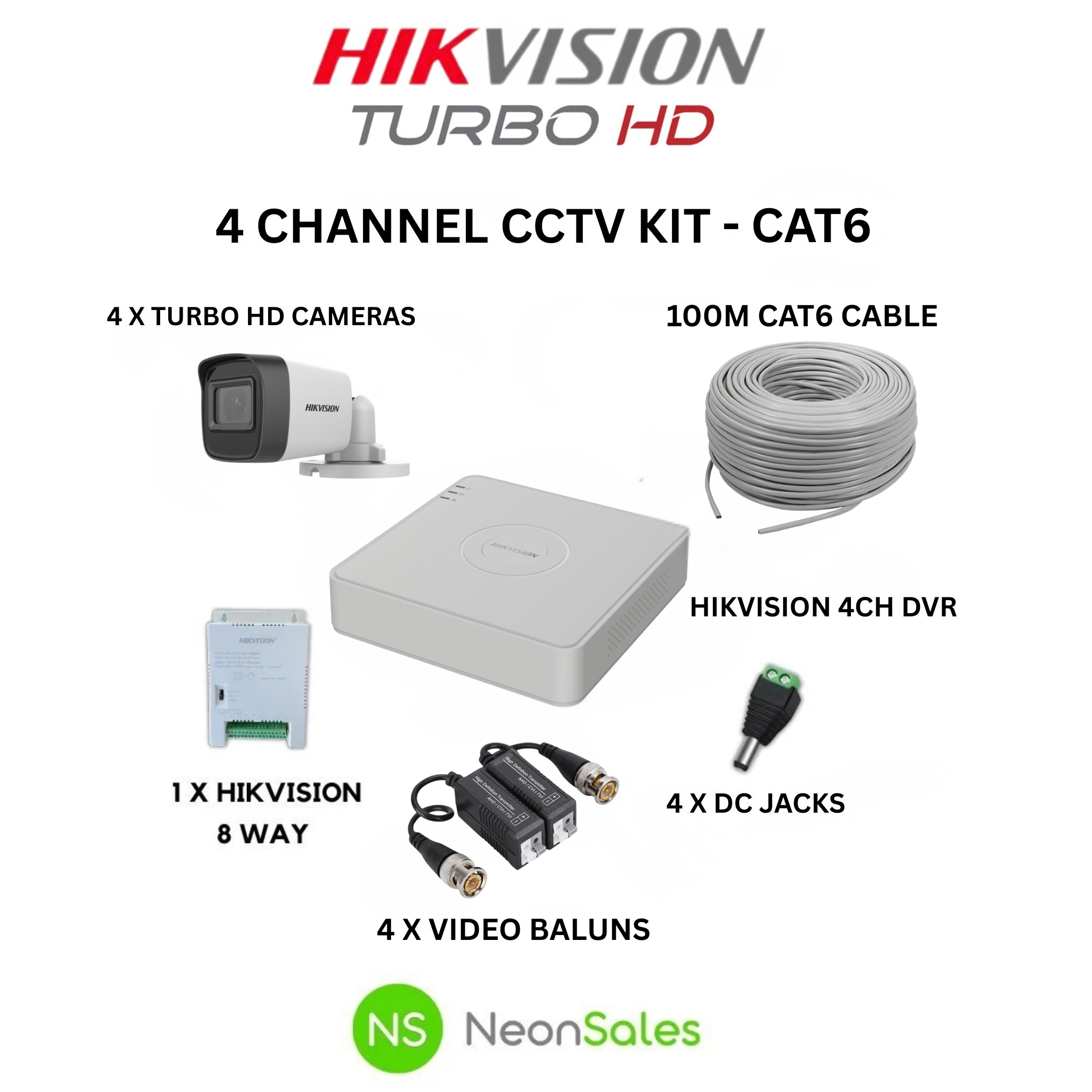

What’s included
- 4 × Hikvision 2MP EXIR Bullet Cameras (2.8mm)
- 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
- 1 × 100m CAT6 Cable
- 4 × Full HD Passive Video Baluns
- 4 × Male DC Power Jacks
- 1 × 8-Way 12V CCTV Power Supply
Individual component breakdowns

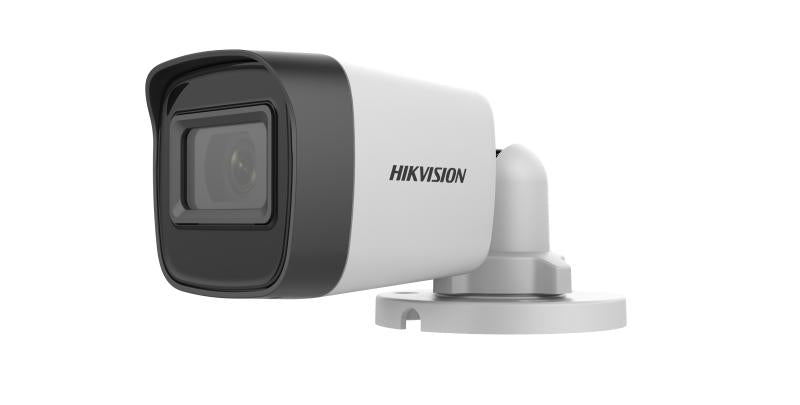

1. Hikvision 2MP EXIR Bullet Camera (2.8mm)
Reliable outdoor camera delivering crisp Full HD footage with wide coverage and EXIR night vision up to 20m. Built to withstand harsh conditions with an IP67 rating.
Specifications
- Resolution: 2MP (1920×1080)
- Lens: 2.8mm fixed
- Night Vision: Up to 20m EXIR
- Minimum Illumination: 0.02 Lux; 0 Lux with IR
- Formats: TVI / AHD / CVI / CVBS
- Image Enhancements: DWDR, BLC, 2D-DNR
- Ingress Protection: IP67
- Operating Range: −40°C to +60°C
- Power: 12V DC

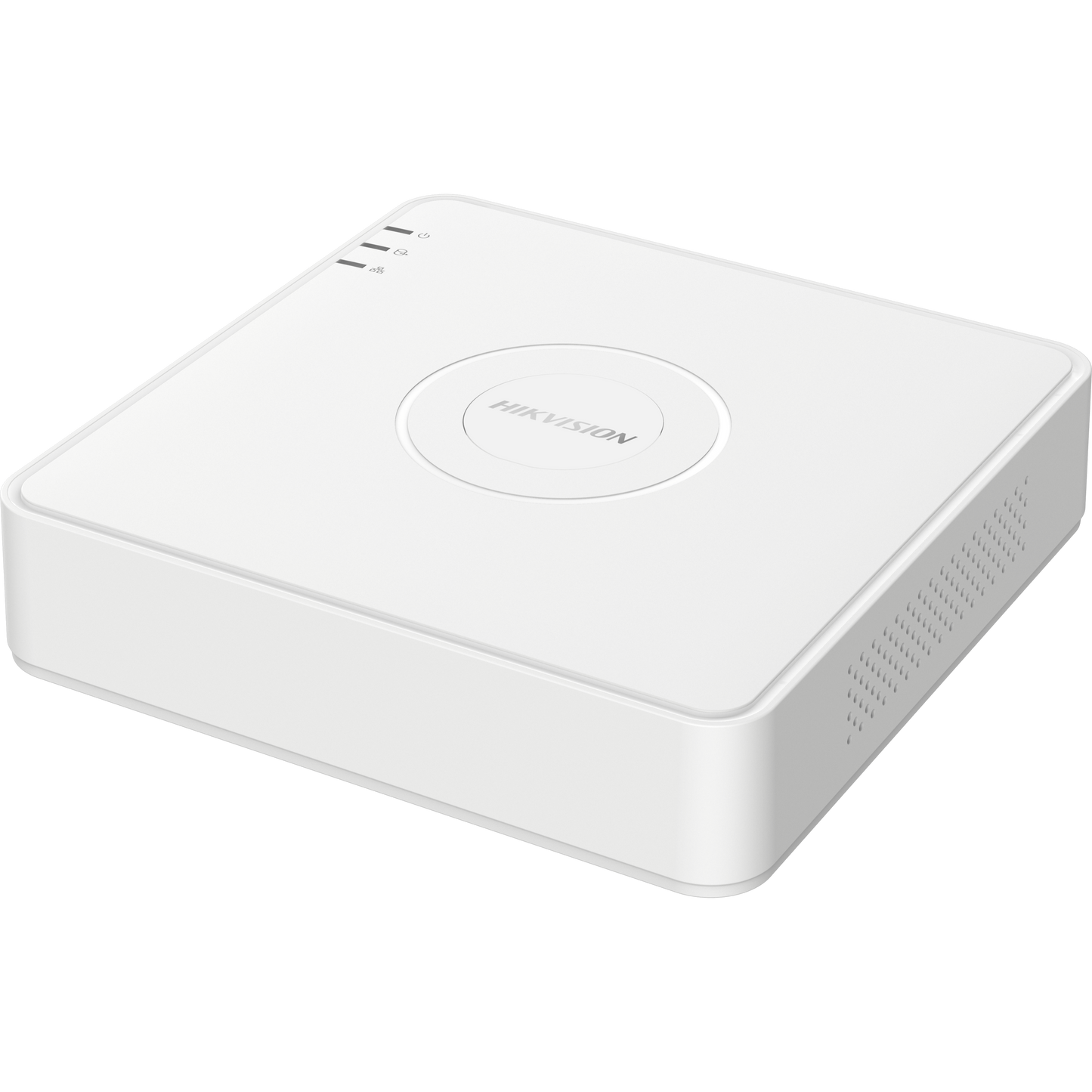

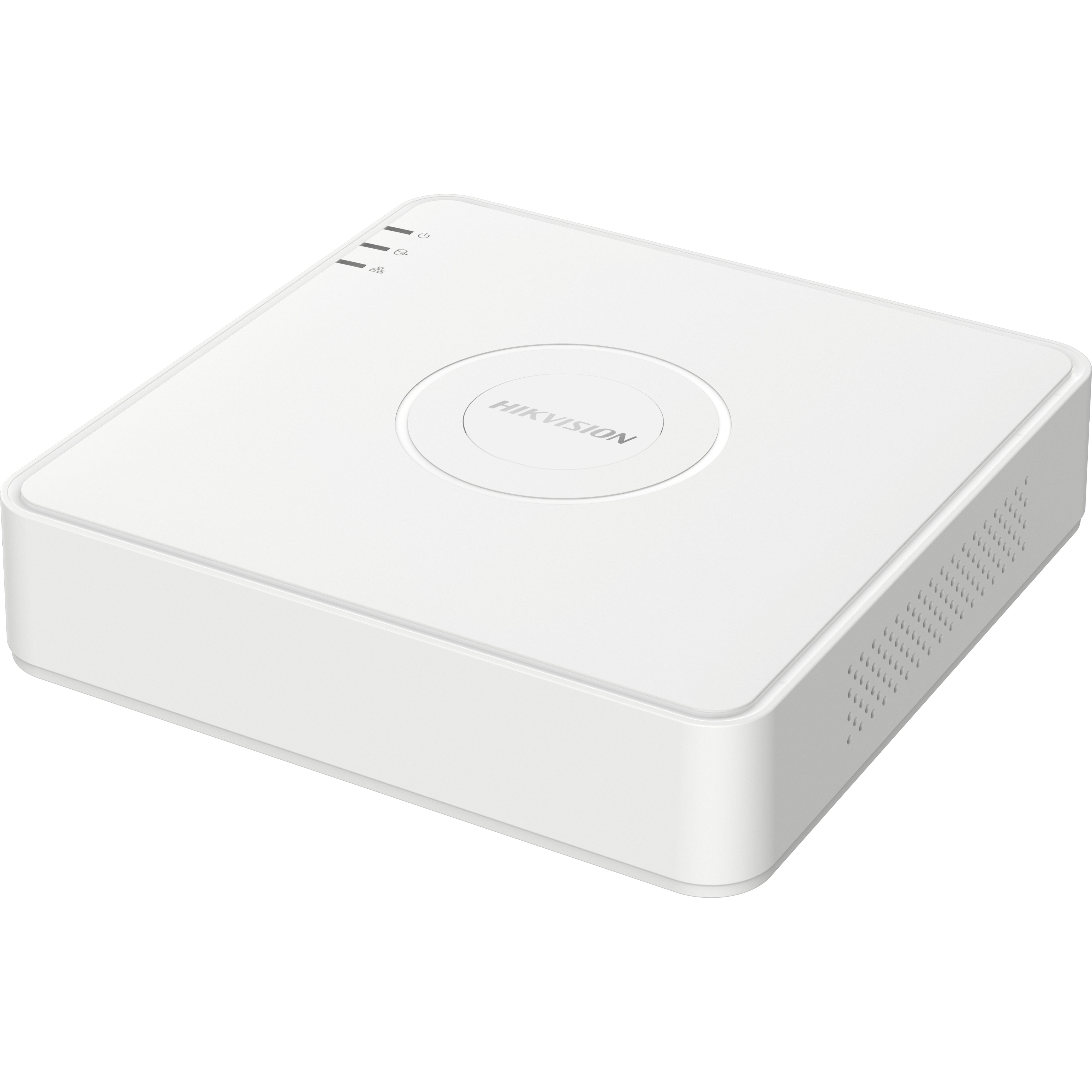

2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)
Smart recorder that supports four analogue channels plus an optional IP channel. Includes motion detection with human/vehicle filtering and efficient H.265 Pro+ compression.
Specifications
- Channels: 4 analogue + 1 IP
- Supported Formats: HDTVI, AHD, CVI, CVBS
- Video Outputs: HDMI & VGA (1080p)
- Compression: H.265 Pro+ / H.265 / H.264
- Storage: 1 × SATA (up to 4TB)
- Smart Detection: Human/vehicle filtering (Motion Detection 2.0)
- Network: 10/100 Mbps Ethernet
- Power: 12V DC

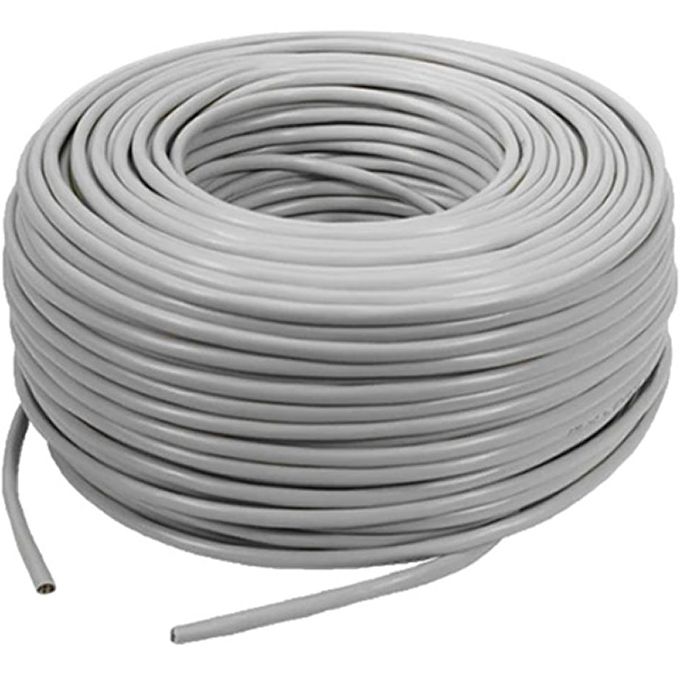

3. 100m CAT6 Cable
Simple, reliable CAT6 cable used for transmitting video via baluns or for future upgrades to IP systems. Easy to run and ideal for neat installations in trunking or conduit.
Uses & Benefits
- Supports HD analogue video over baluns and future IP upgrades
- Neat routing through conduits and cable trays
- Flexible solution for homes and businesses

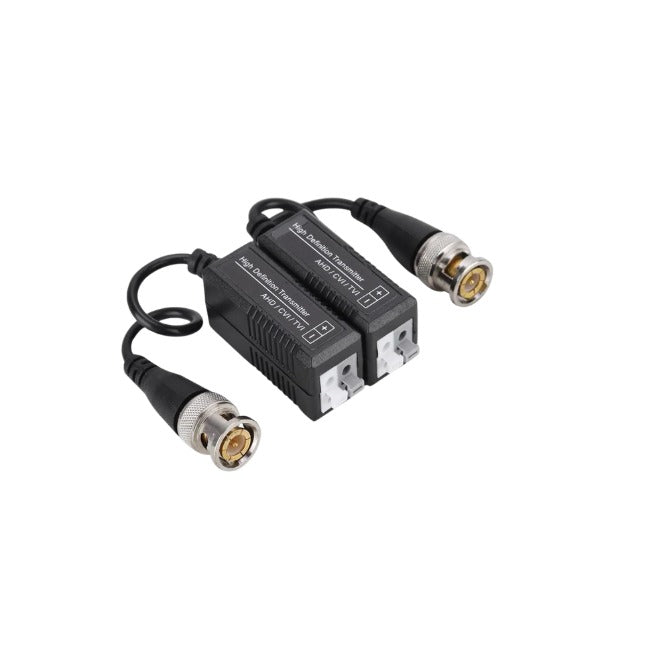

4. Full HD Passive Video Baluns (×4)
Converts the camera’s BNC video signal to run over CAT6 UTP cable using one twisted pair per channel—installed at the camera and DVR ends.
Specifications
- Supports: AHD / CVI / TVI
- Range: Up to 300m (AHD/CVI); approx. 200m (TVI)
- Compatibility: CAT5/5e/6 UTP
- Protection: Built-in surge / interference protection
- Connectors: BNC male → UTP screw terminal

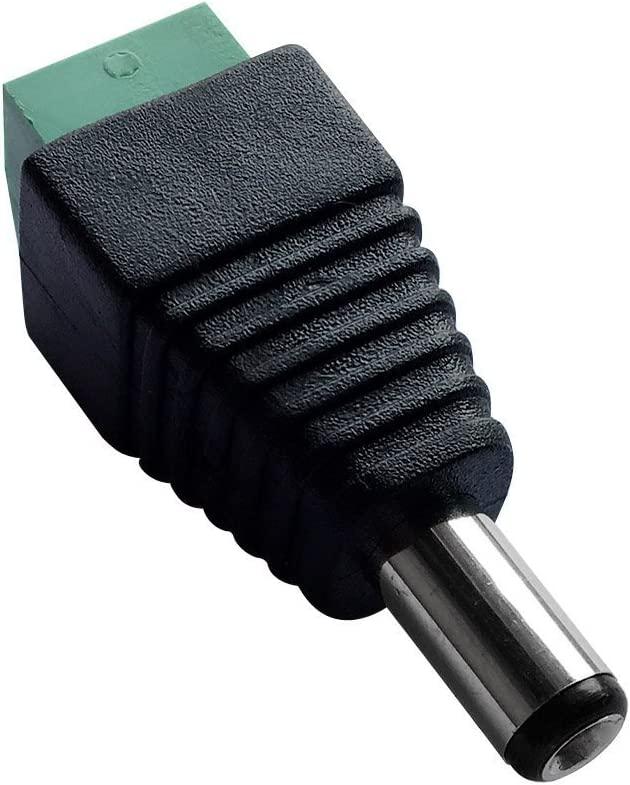

5. Male DC Power Jacks (×4)
Standard male DC barrel connectors used to deliver 12V DC from the PSU to each camera.
Specifications
- Type: Male DC barrel connector
- Voltage: 12V DC
6. 8-Way 12V CCTV Power Supply
Correct power supply for 4CH and 8CH CAT6 kits. Provides stable power for multiple cameras with built-in electrical protection.
Specifications
- Output: 12V DC
- Channels: 8 outputs (1A per channel typical)
- Protections: Over-voltage, over-current, short-circuit
Installation Notes (CAT6 Installations)
- Use one twisted pair per camera and match pair polarity on both baluns.
- Keep CAT6 runs separate from mains wiring to avoid interference.
- Protect outdoor connectors with weather boots or silicone sealant.
- Install HDD before powering up the DVR and update firmware after setup.
- Enable Hik-Connect for remote viewing and secure access.
Below are some optional add-ons for your 4 Channel Kit :
-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)
Ready to buy
This 4-channel Hikvision EXIR kit over CAT6 is perfect for clean, professional installations that want the flexibility of structured cabling plus reliable HD surveillance performance. Add to cart to lock in neat cable runs and dependable night vision.
