HIKVISION 4CH COLOURVU CCTV KIT – RG59
Complete kit overview
This Hikvision 4-channel ColourVu CCTV kit delivers bright, full-colour video around the clock. ColourVu technology uses an advanced low-light sensor and built-in warm illumination to keep footage colourful and detailed, even at night. Supplied with RG59 coaxial cable and a compact Turbo HD DVR, this kit is ideal for homes, small businesses and entry points that need clear forensic detail without a full system overhaul.

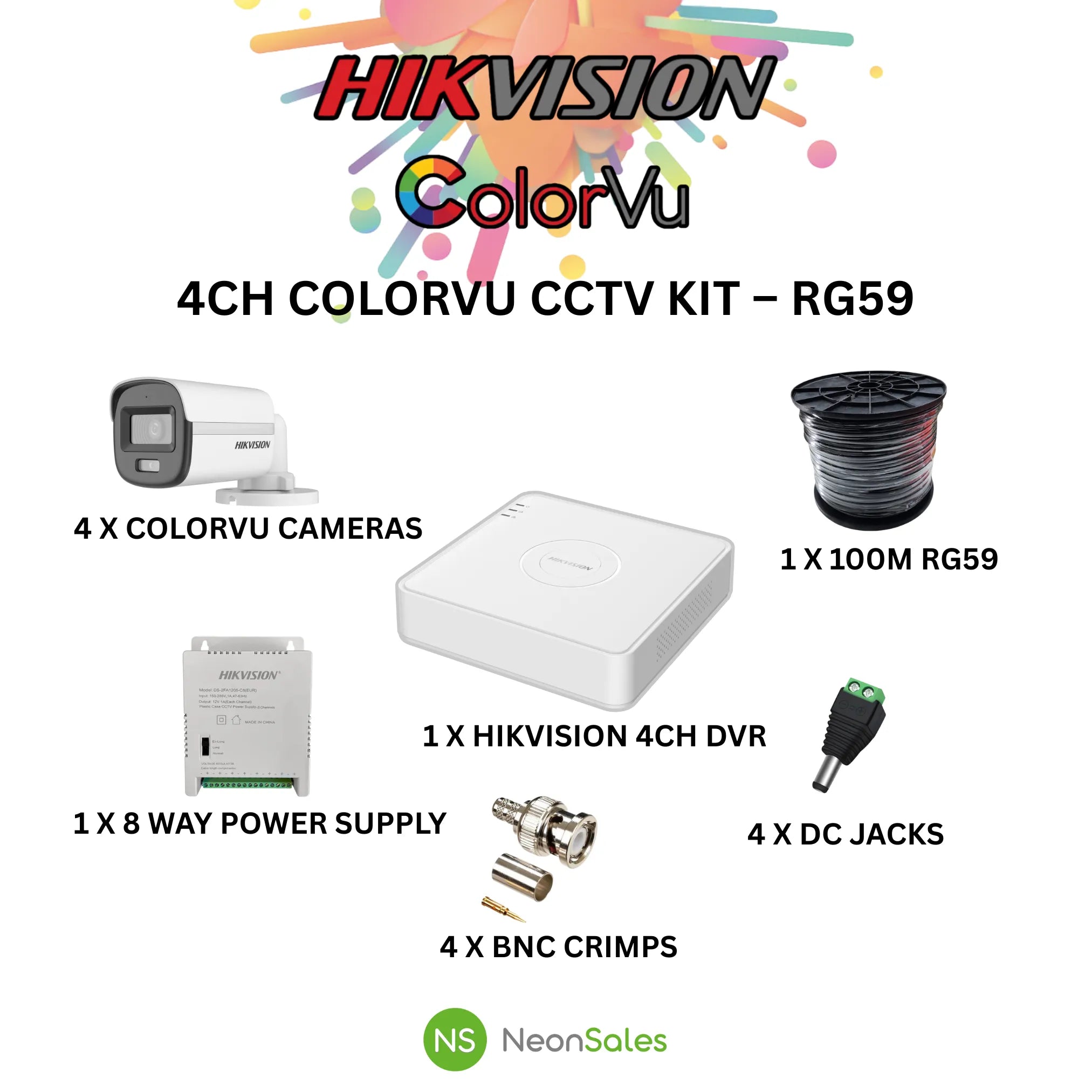

What’s included
- 4 × Hikvision 2MP ColourVu Bullet Cameras (2.8mm)
- 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
- 1 × 100m RG59 Coaxial Cable
- 4 × BNC Crimp Connectors (2S)
- 4 × Male DC Power Jacks
- 1 × 12V 5A CCTV Power Supply
Individual component breakdowns

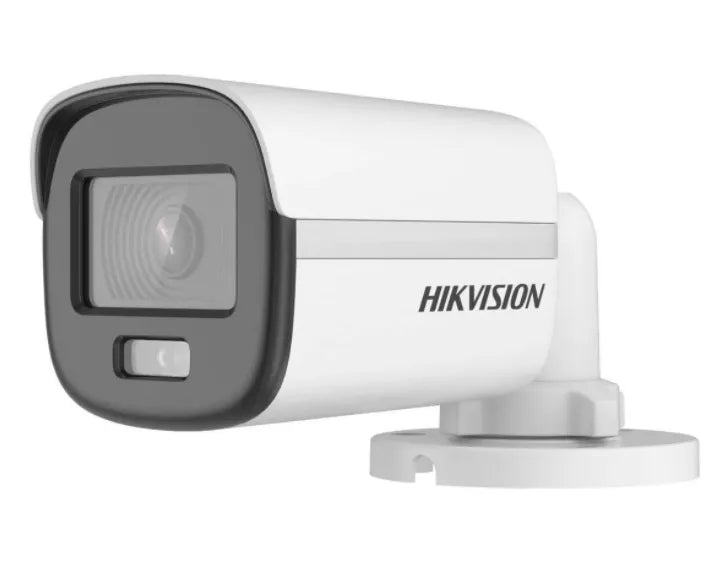

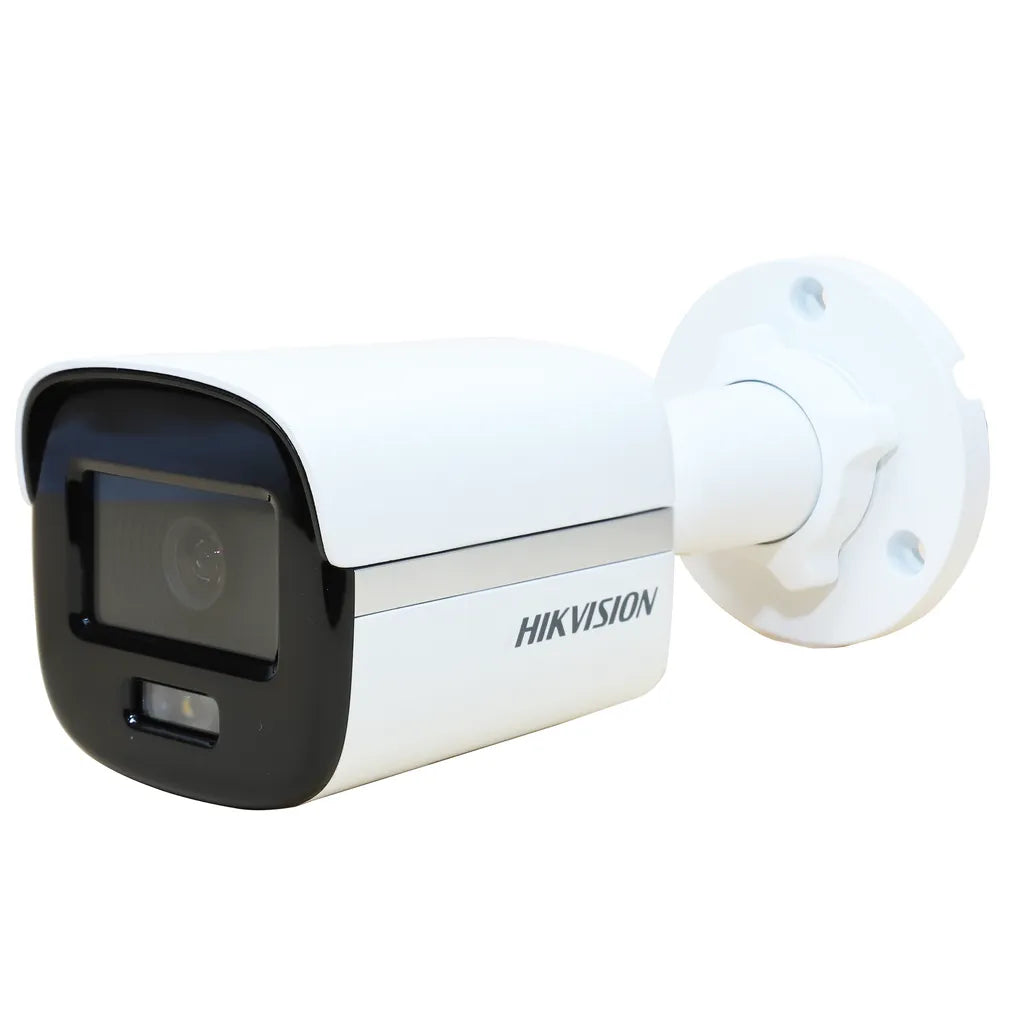

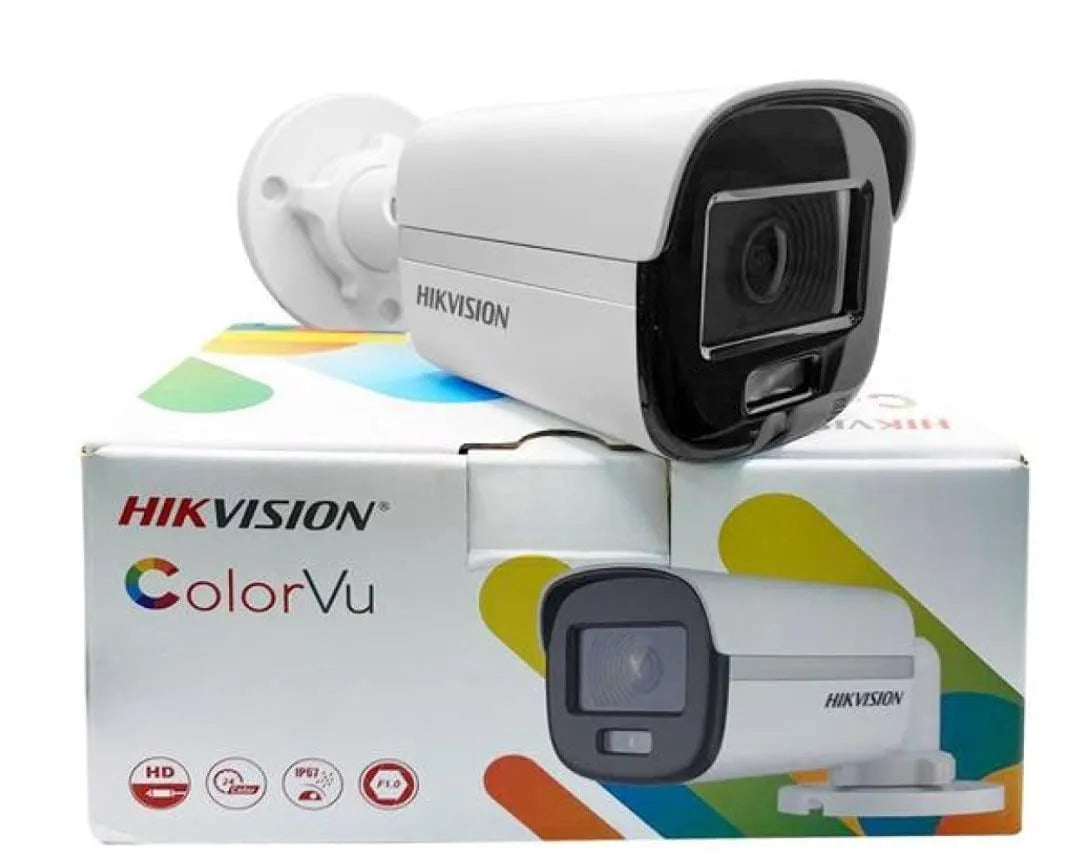

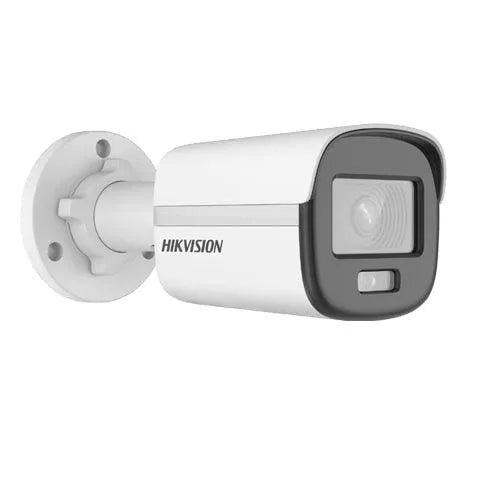

1. Hikvision 2MP ColourVu Bullet Camera (2.8mm)

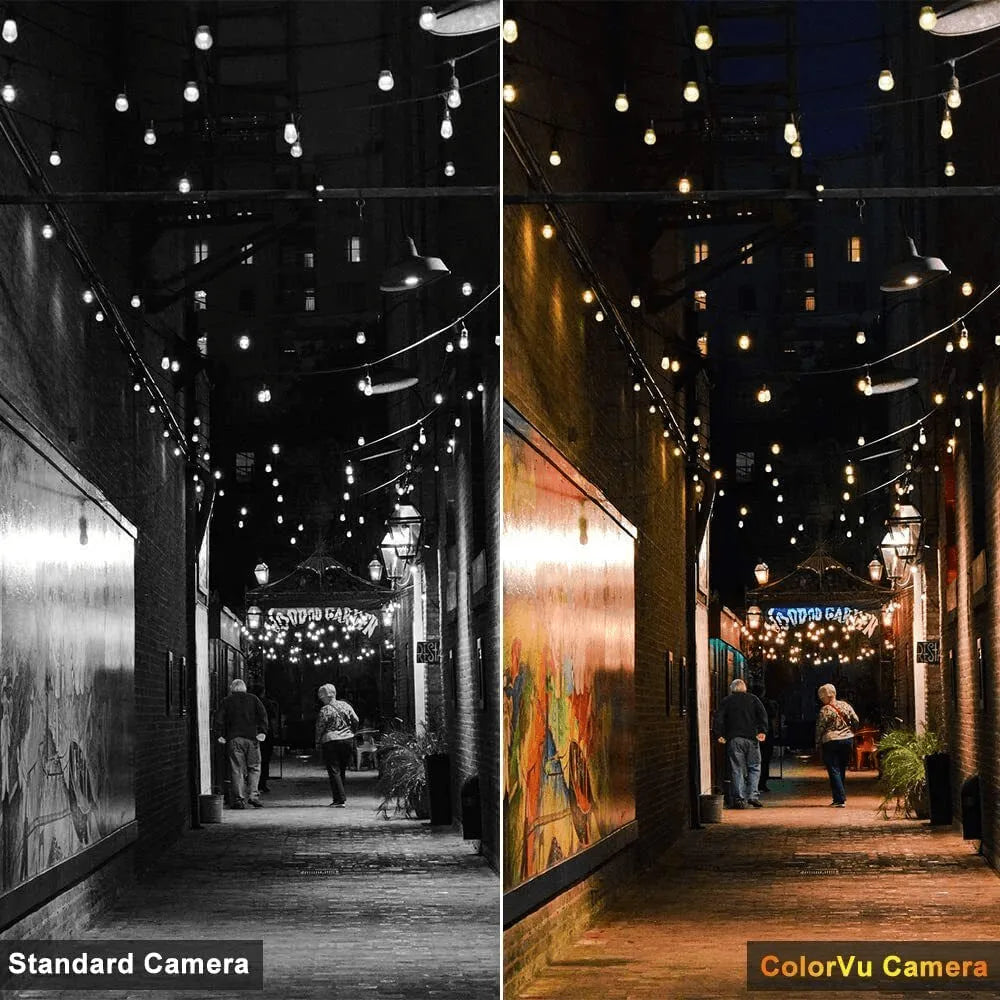

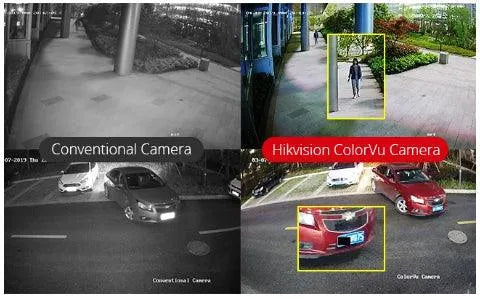

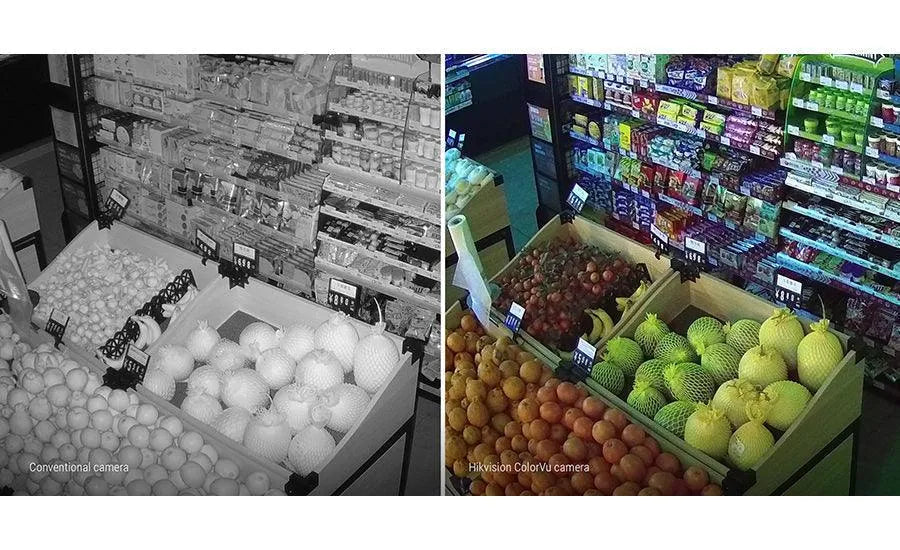

ColourVu cameras produce true-colour images in low-light conditions using a high-sensitivity sensor and built-in warm LED illumination. This results in clearer identification of people, vehicles and colours at night compared to standard IR-only cameras.
Specifications
- Resolution: 2MP (1920×1080)
- Lens: 2.8mm fixed wide-angle
- Night capability: Full-colour night imaging with warm illumination
- Video outputs: TVI / AHD / CVI / CVBS (switchable)
- Audio: Built-in microphone (model dependent)
- Image enhancements: 3D-DNR, True WDR (model dependent)
- Ingress protection: IP67
- Operating temperature: −40°C to +60°C
- Power: 12V DC
2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)
Compact Turbo HD recorder supporting four analogue channels and an optional IP channel. Efficient compression and smart detection features make it perfect for small sites needing reliable recording and remote access.
Specifications
- Channels: 4 analogue + 1 IP
- Supported formats: HDTVI, AHD, CVI, CVBS
- Outputs: HDMI & VGA (1080p)
- Compression: H.265 Pro+ / H.265 / H.264
- Storage: 1 × SATA (up to 4TB)
- Smart features: Motion Detection 2.0 (human/vehicle filtering)
- Network: 10/100 Mbps Ethernet
- Power: 12V DC

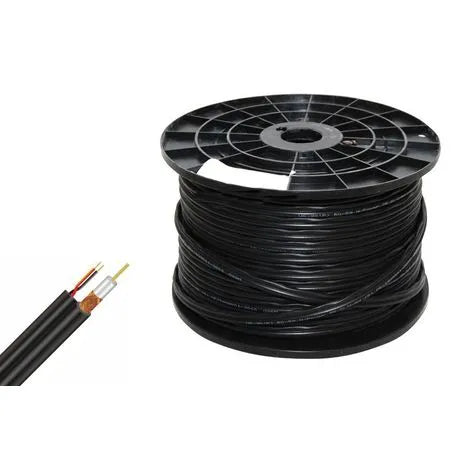

3. 100m RG59 Coaxial Cable
Standard CCTV coaxial cable for stable HD analogue video transmission. Easy to terminate and widely used in retrofit and new-install scenarios.
Uses & Benefits
- Reliable HD analogue video transmission
- Simple termination with BNC crimps
- Suitable for indoor and outdoor routing

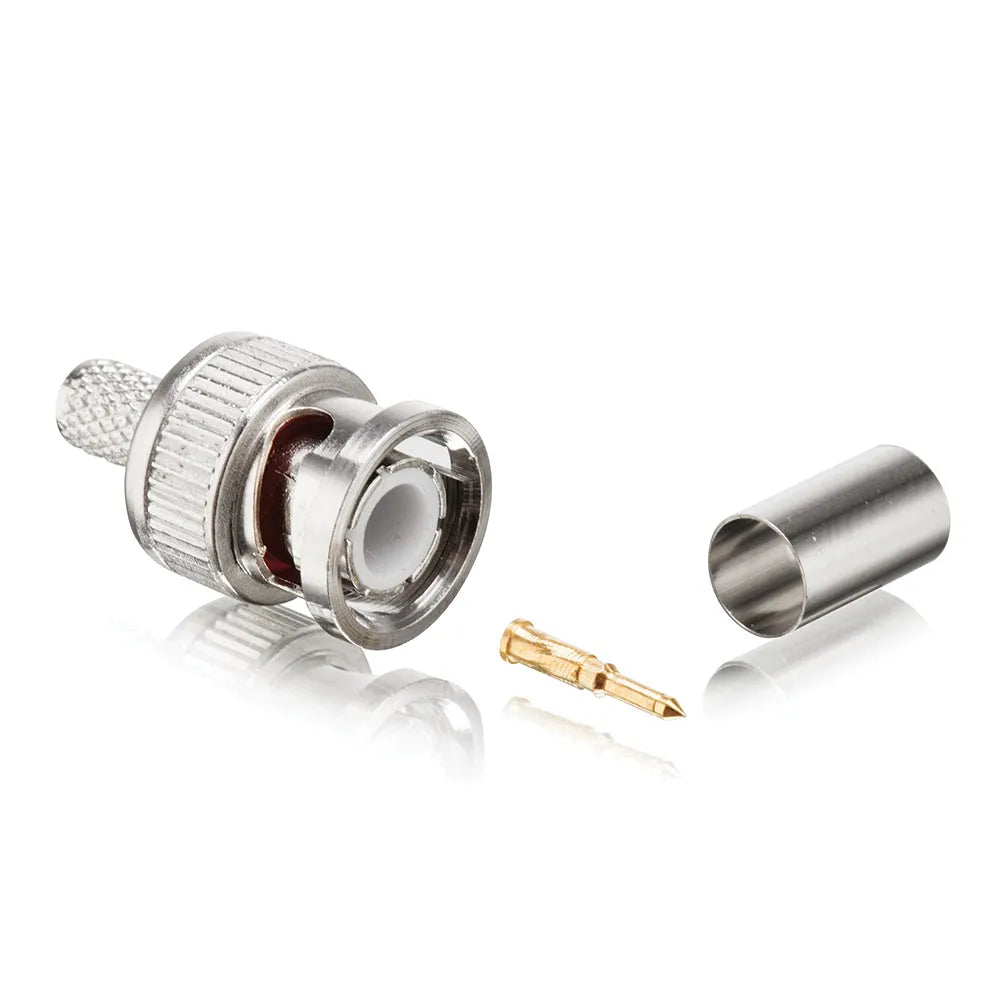

4. BNC Crimp Connectors (×4)
Quality crimp-on connectors for secure video termination between RG59 cable and cameras/DVR.
Specifications
- Type: Male BNC (crimp)
- Compatibility: RG59 75 Ω
- Material: Nickel-plated body, gold-plated centre pin

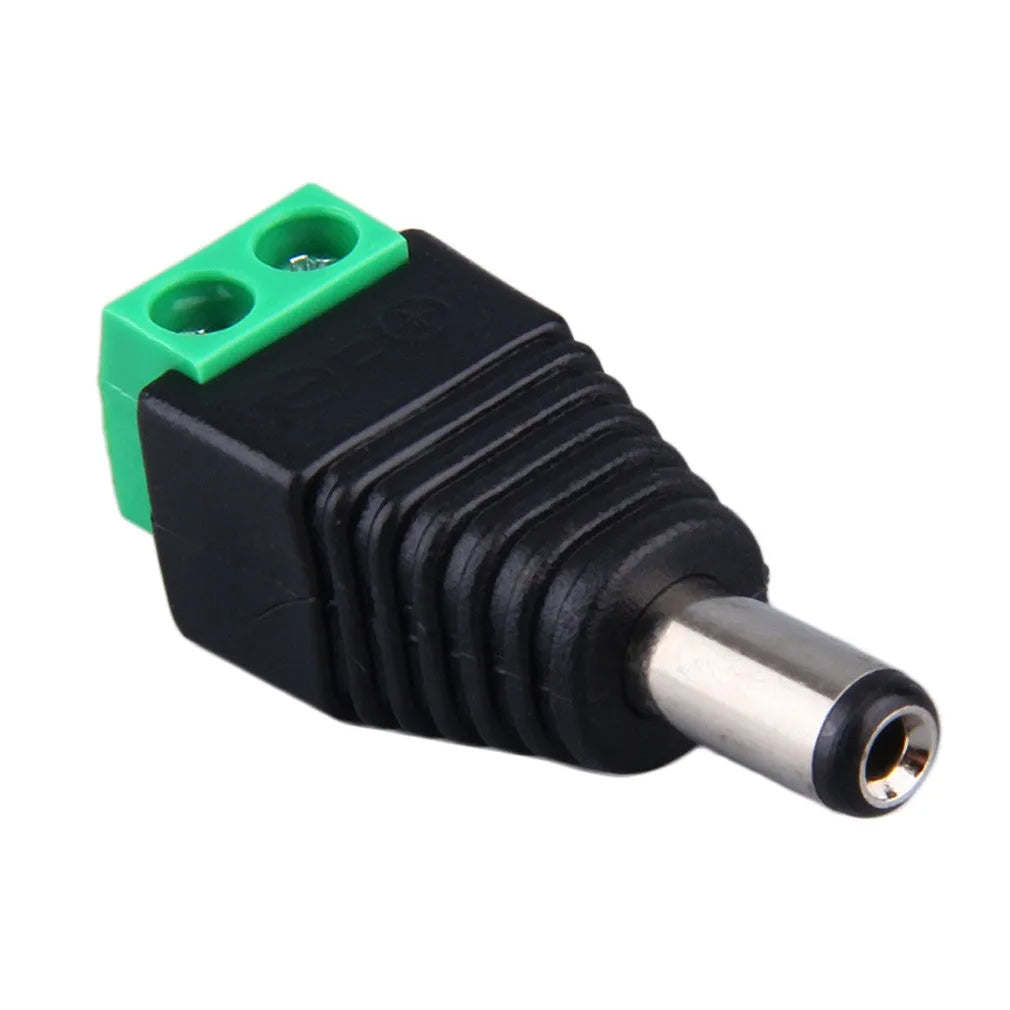

5. Male DC Power Jacks (×4)
Standard male DC barrel connectors for camera power feeds.
Specifications
- Type: Male DC barrel connector
- Voltage: 12V DC
6. 12V 5A CCTV Power Supply
Compact power supply suitable for small installations. Provides stable 12V DC output with built-in protections to guard the system.
Specifications
- Output: 12V DC
- Current: 5A
- Protections: Over-current, over-voltage, short-circuit
Installation Notes
- Terminate RG59 with proper BNC crimp connectors and test each run before finalising installation.
- Avoid running RG59 parallel to mains wiring to reduce interference.
- Weatherproof outdoor connectors with silicone or boots.
- Install the HDD before powering the DVR and update firmware after setup.
- Enable Hik-Connect for remote viewing and alerts.
Below are some optional add-ons for your 4 Channel Kit :
-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)
Ready to buy
This 4-channel ColourVu CCTV kit over RG59 is ideal for small properties that want full-colour night footage and a simple, cost-effective installation. Add to cart to upgrade your site with ColourVu clarity.
