HIKVISION 4CH HYBRID LIGHT CCTV KIT – RG59
Complete kit overview
This Hikvision 4-channel Hybrid Light CCTV kit is ideal for small homes, shops and offices that need full-colour night-time footage using familiar RG59 cabling. Hybrid Light cameras use built-in white LEDs to provide colour detail in low light, while the Turbo HD platform ensures reliable 1080p recording and easy integration with existing DVRs. The kit includes everything required for a tidy, dependable installation.
What’s included
- 4 × Hikvision 2MP Hybrid Light Bullet Cameras (2.8mm)
- 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
- 1 × 100m RG59 Coaxial Cable
- 4 × BNC Crimp Connectors (2S)
- 4 × Male DC Power Jacks
- 1 × 12V 5A CCTV Power Supply
Individual component breakdowns

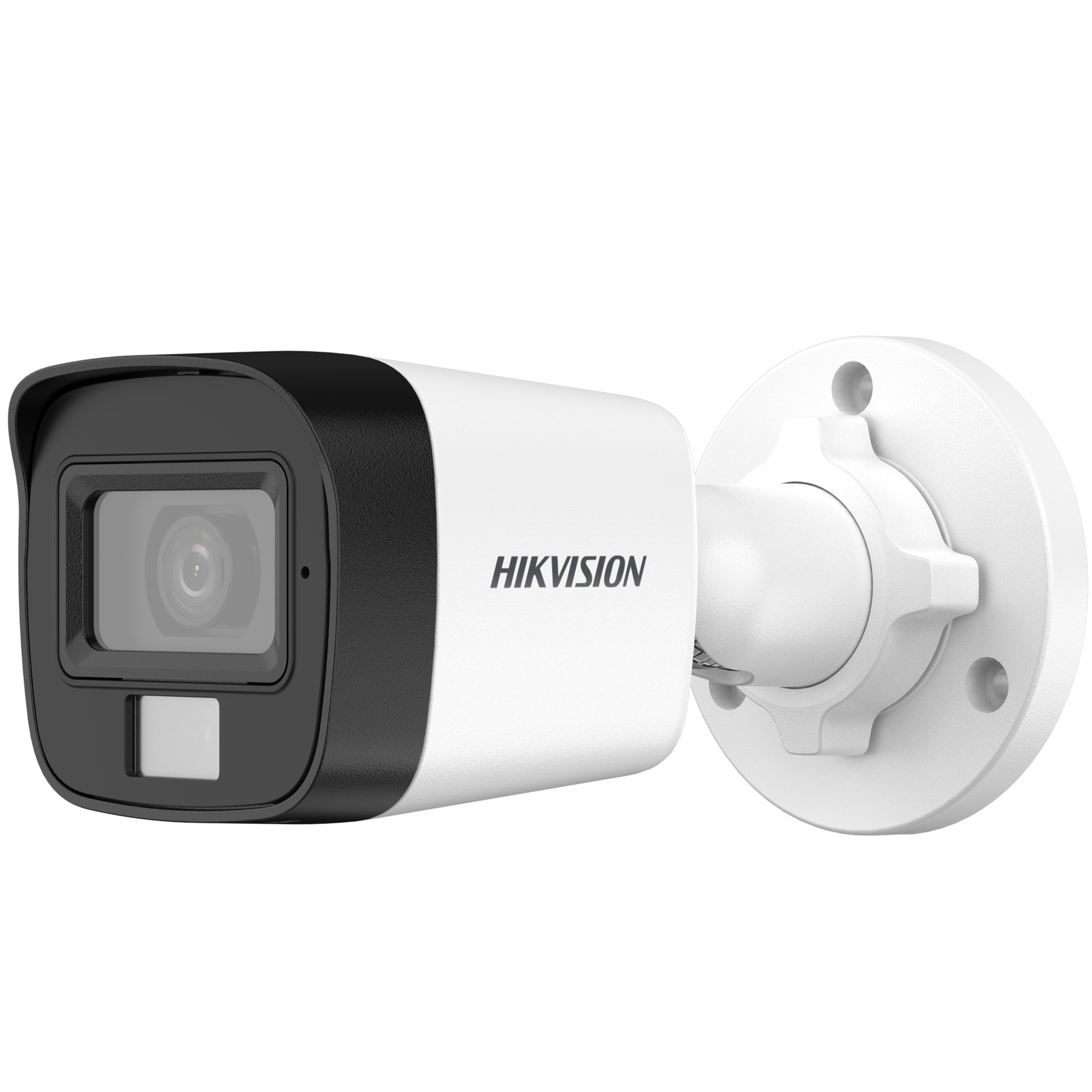

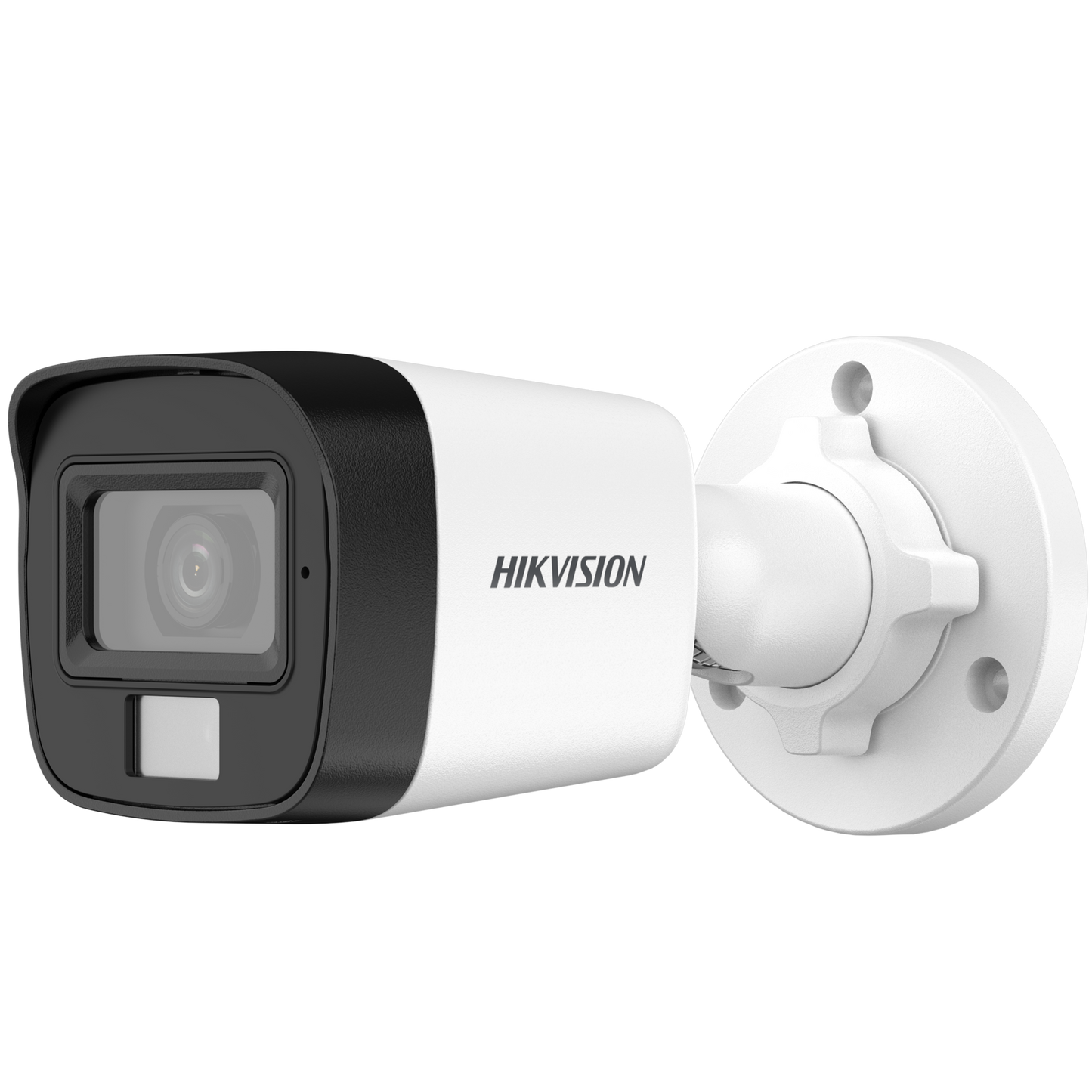

1. Hikvision 2MP Hybrid Light Bullet Camera (2.8mm)
Hybrid Light cameras combine Full HD imaging with built-in white LEDs to deliver colour footage at night, improving identification of vehicles, clothing and faces. The 2.8mm lens gives a wide field of view suitable for driveways, entrances and small outdoor areas.
Specifications
- Resolution: 2MP (1920×1080)
- Lens: 2.8mm fixed
- Illumination: Hybrid white LED + IR (colour night vision with IR fallback)
- Video formats: TVI / AHD / CVI / CVBS (switchable)
- Image features: DWDR, BLC, 2D-DNR
- Ingress protection: IP67
- Operating temperature: −40°C to +60°C
- Power: 12V DC

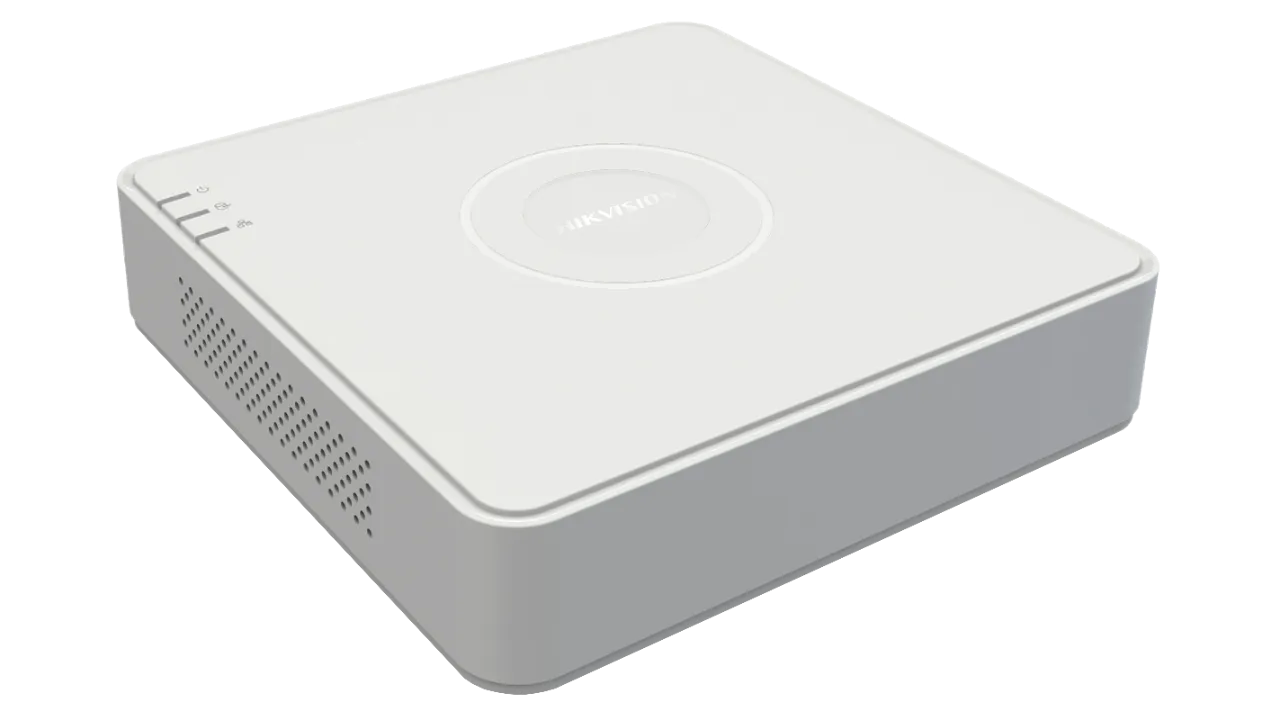

2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)
Compact Turbo HD recorder supporting four analogue channels and one IP input. Offers efficient compression, HDMI/VGA outputs and smart detection features to reduce false alarms.
Specifications
- Channels: 4 analogue + 1 IP
- Supported formats: HDTVI, AHD, CVI, CVBS
- Video outputs: HDMI & VGA (1080p)
- Compression: H.265 Pro+ / H.265 / H.264
- Storage: 1 × SATA (up to 4TB)
- Smart detection: Motion Detection 2.0 (human/vehicle filtering)
- Network: 10/100 Mbps Ethernet
- Power: 12V DC

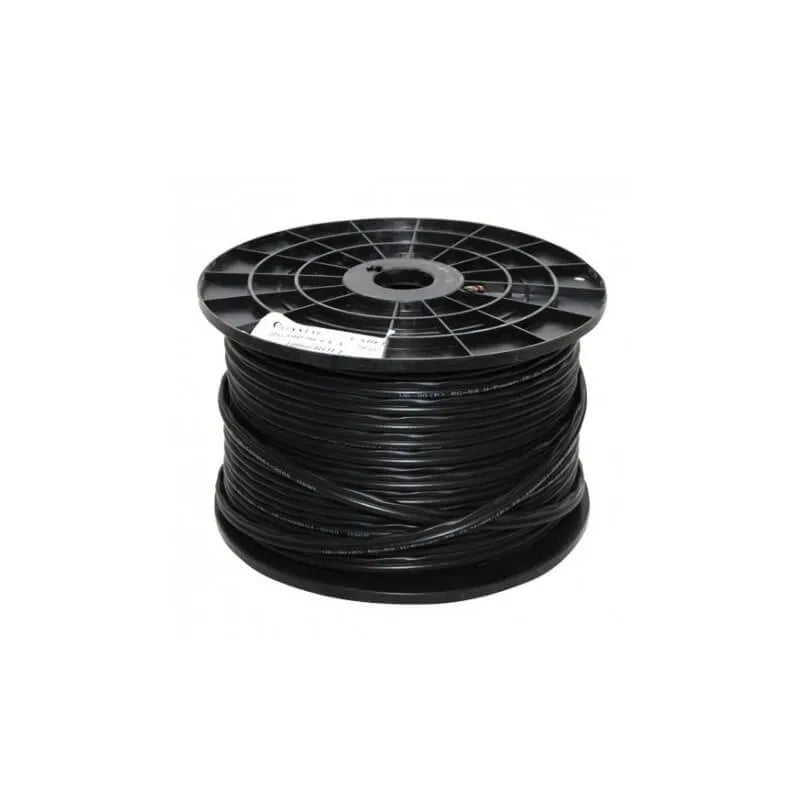

3. 100m RG59 Coaxial Cable
Standard RG59 coaxial cable suitable for CCTV installations. Provides stable video transmission and is widely used in analogue HD systems.
Uses & Benefits
- Runs HD analogue video reliably over typical CCTV distances
- Easy to terminate with BNC crimps
- Widely supported and simple to install

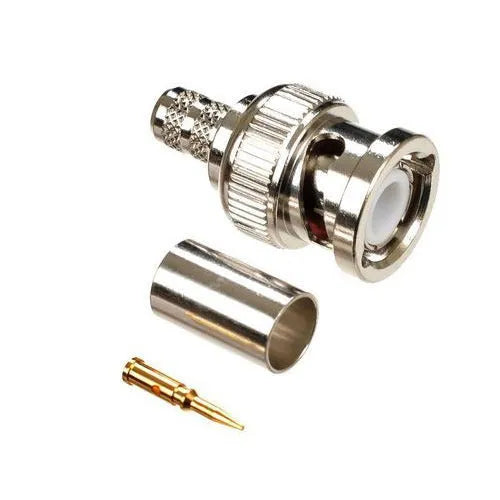

4. BNC Crimp Connectors (×4)
Quality crimp-on BNC connectors for secure video termination between RG59 cable and cameras/DVR.
Specifications
- Type: Male BNC (crimp)
- Compatibility: RG59 75 Ω
- Material: Nickel-plated body, gold-plated centre pin

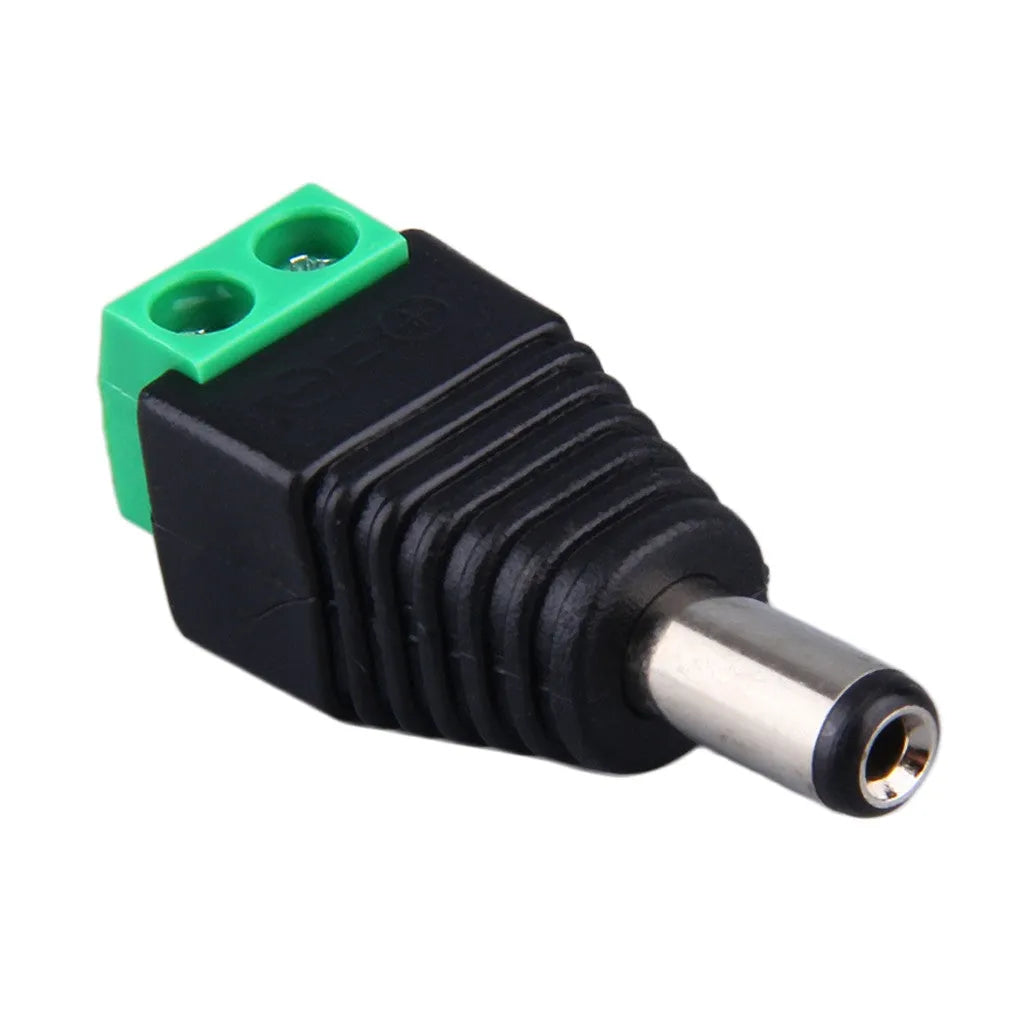

5. Male DC Power Jacks (×4)
Standard male DC barrel connectors used to deliver 12V DC to each camera from the power supply.
Specifications
- Type: Male DC barrel connector
- Voltage: 12V DC
6. 12V 5A CCTV Power Supply
Compact power supply suitable for small installations. Provides stable 12V DC output with built-in protections to safeguard the system.
Specifications
- Output: 12V DC
- Current: 5A
- Protections: Over-current, over-voltage, short-circuit
Installation Notes
- Terminate RG59 with proper BNC crimp connectors and test each run before finalising installation.
- Avoid running RG59 parallel to high-voltage mains to limit interference.
- Protect outdoor join points with weather boots or silicone sealant.
- Install the HDD before powering up the DVR and update firmware for best stability.
- Use Hik-Connect for remote viewing and alerts.
Below are some optional add-ons for your 4 Channel Kit :
-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)
Ready to buy
This 4-channel Hybrid Light CCTV kit over RG59 offers full-colour night surveillance with familiar coax cabling — perfect for small properties and businesses wanting an easy upgrade from standard IR systems.
