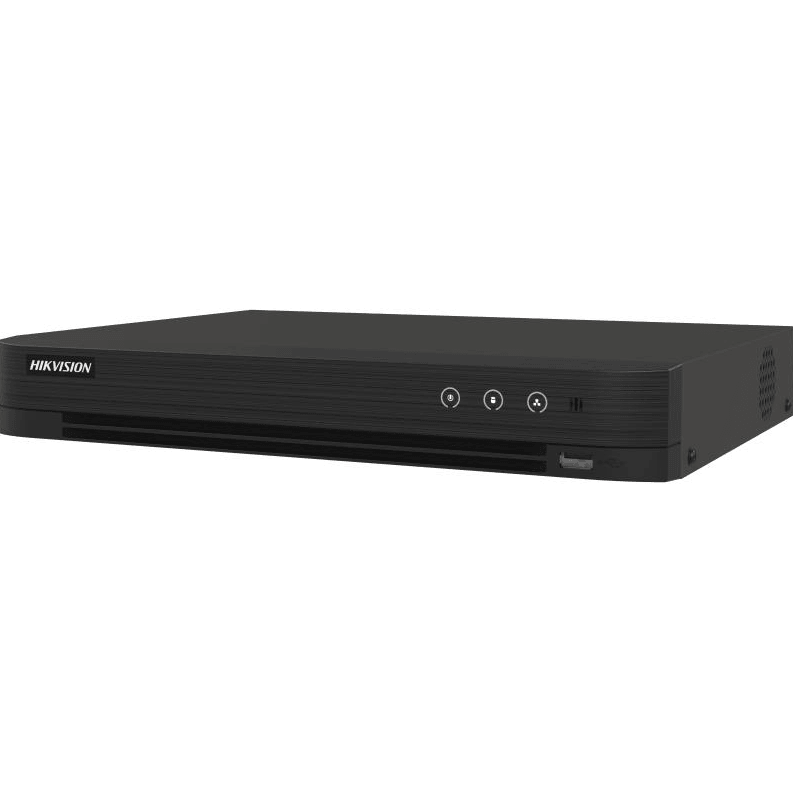

HIKVISION 4CH ACUSENSE DVR
IDS-7204HQHI-M1/S/4A+4/1ALM
Enhance encoding efficiency and reduce storage costs with H.265 Pro+ video compression. Record on all channels at 1080p resolution and easily search for specific footage. Detect motion and protect your perimeter with deep learning-based technology.
Use multiple VCA events with analog and smart IP cameras. Enjoy the convenience of Hik-Connect and DDNS for network management, and configure output bandwidth limits for seamless access.
FEATURES:
- 4 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5M Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected.
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis Up to 2-ch
- Facial Detection
- Facial Detection And Capture Face picture detection, face picture search
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Mainstream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
1-ch (up to 5-ch）
Up to 6 MP resolution
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 4ch
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Network
- Total Bandwidth 72 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection 32
- Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface 2 × USB 2.0
- Alarm In/Out N/A
- General
- Power Supply 12vdc, 1.5A
- Consumption≤ 18 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 1.16 kg (2.6 lb)
