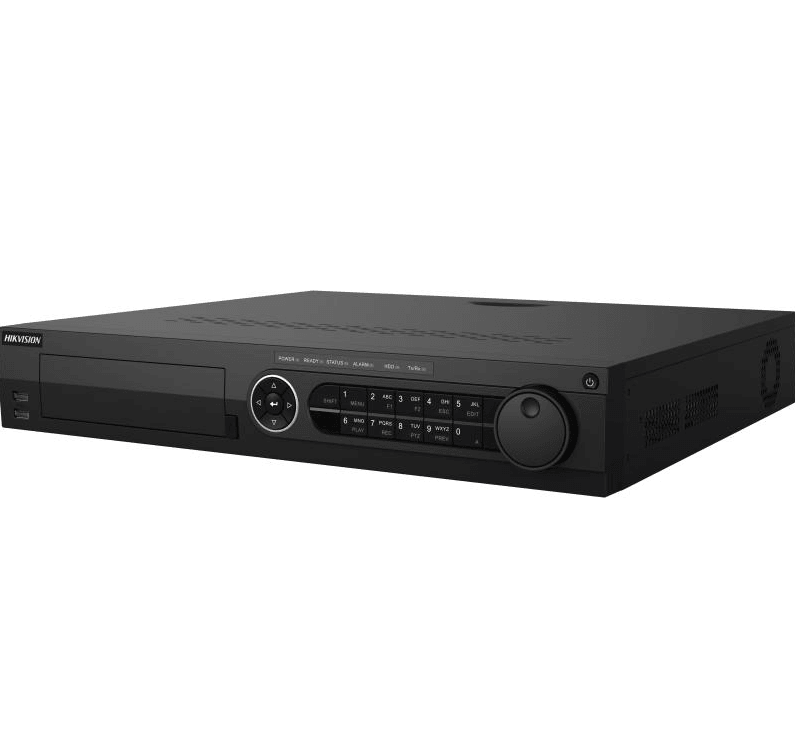

HIKVISION 32CH ACUSENSE DVR
HIKVISION 32CH ACUSENSE DVR
The HIKVISION 32CH ACUSENSE DVR utilizes H.265 Pro+ video compression for improved encoding efficiency and reduced data storage costs. It supports full channel recording at up to 4 MP Lite resolution and has 4 SATA interfaces and 1 eSATA interface for storage.
With 16-ch 1080p@30 fps decoding capability and smart search for efficient playback, this DVR is a reliable choice for network & ethernet access with its two self-adaptive 10/100/1000 Mbps interfaces and support for Hik-Connect & DDNS. Additionally, the output bandwidth limit is configurable for optimal network management.
FEATURES:
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog
- channels
- Up to 48-ch IP camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 1080p@15 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 48-ch network camera inputs
- POS triggered recording and POS information overlay
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 8-ch, for channel 1/2/3/4/17/18/19/20 only
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is enabled:
4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth200 Mbps
- Outgoing Bandwidth160 Mbps
- HDTVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback16-ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
- SATA4 SATA interfaces
- ESATASupport
- CapacityUp to 12 TB capacity for each disk
- Alarm In/Out16/4
-
USB Interface
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 40 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
- Weight≤ 7 kg (without HDD, 15.4 lb.)
HIKVISION 32CH ACUSENSE DVR
The HIKVISION 32CH ACUSENSE DVR utilizes H.265 Pro+ video compression for improved encoding efficiency and reduced data storage costs. It supports full channel recording at up to 4 MP Lite resolution and has 4 SATA interfaces and 1 eSATA interface for storage.
With 16-ch 1080p@30 fps decoding capability and smart search for efficient playback, this DVR is a reliable choice for network & ethernet access with its two self-adaptive 10/100/1000 Mbps interfaces and support for Hik-Connect & DDNS. Additionally, the output bandwidth limit is configurable for optimal network management.
FEATURES:
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog
- channels
- Up to 48-ch IP camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 1080p@15 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 48-ch network camera inputs
- POS triggered recording and POS information overlay
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 8-ch, for channel 1/2/3/4/17/18/19/20 only
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is enabled:
4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth200 Mbps
- Outgoing Bandwidth160 Mbps
- HDTVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback16-ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
- SATA4 SATA interfaces
- ESATASupport
- CapacityUp to 12 TB capacity for each disk
- Alarm In/Out16/4
-
USB Interface
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 40 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
- Weight≤ 7 kg (without HDD, 15.4 lb.)
