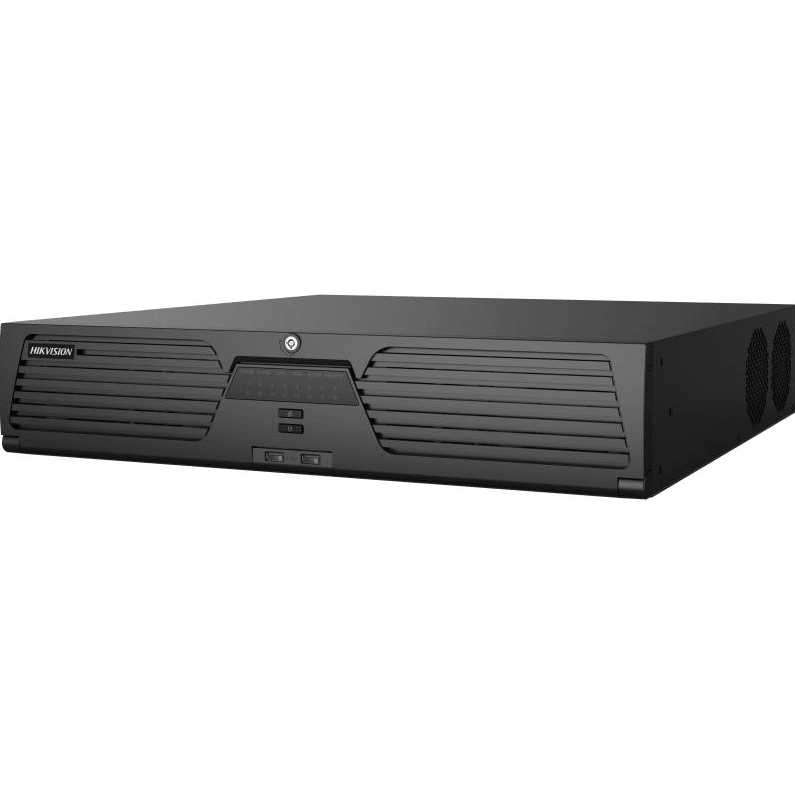

HIKVISION 32CH 3U 4K DEEPINMIND NVR

R 26,026.00
Unit price  per
history

Guaranteed safe & secure checkout

HIKVISION 32CH 3U 4K DEEPINMIND NVR



This NVR features H.265+ compression to significantly reduce storage space by up to 75%. It also has dual-stream recording to save bandwidth, and uses stream over TLS encryption technology for secure stream transmission.

Additionally, it supports double verification for playback and downloading, and offers independent HDMI and VGA outputs up to 4K resolution. With up to 8 SATA interfaces for HDD connection, up to 16-ch synchronous playback, and multiple VCA events, it provides smart and accurate surveillance.

It also has special camera smart functions such as VCA detection, heat map, ANPR, and people counting. Other features include POS information overlay, POS triggered recording and alarm, 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces for easy network management, and smooth streaming technology for plug-in-free web access.

Facial Recognition and Face Picture Comparison

Modeling and analyzing face pictures captured by cameras. Realize list alarm and stranger alarm via face picture library. Search target people by picture and name features.

Perimeter Protection

Adopt deep learning algorithm to reduce false alarm, effectively reduces the false alarm caused by tree branches, leaves, shadow, light, vehicles, small animals, etc

Video Structuralization

Extracting the face picture, human body and vehicle features from live videos, which is used for the tracking and retrieval of human and vehicles

FEATURES:

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 16-ch perimeter protection
  • Up to 8-ch facial recognition for video stream, or up to 16-ch facial
  • recognition for face picture
  • Up to 8-ch video structuralization
  • Up to 8-ch throwing objects from building
  • Up to 16/32/64-ch IP cameras can be connected
  • Up to 16-ch 1080p decoding capability

SPECS:

  • Facial Recognition
  • Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture Library

    Up to 32 face picture libraries, with up to 100,000 face pictures in total

    (each picture ≤ 4 MB, total capacity ≤ 20 GB)

  • Facial Detection And Analytics Performance8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Face Picture Comparison16-ch face picture comparison alarm
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • Video Structuralization
  • Structured AnalysisUp to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
  • Face Picture LibraryUp to 32 face picture libraries, with up to 100,000 face pictures in total
  • Face Picture Comparison8-ch face picture comparison alarm
  • Video And Audio
  • IP Video Input

    32-ch

    Up to 12 MP resolution

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth256 Mbps
  • Incoming Bandwidth (RAID Mode)200 Mbps
  • Outgoing Bandwidth (RAID Mode)200 Mbps
  • HDMI 1 Output

    4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz


  • HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 1 Output

    1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz


  • VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
  • CVBS OutputN/A
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback16-ch
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

  • Stream TypeVideo, Video & Audio
  • Dual-StreamSupport
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2
  • Network
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote Connection128
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
  • Auxiliary Interface
  • SATA8 SATA interfaces
  • ESATA1 eSATA interface
  • CapacityUp to 10 TB capacity for each HDD
  • Serial InterfaceRS-232; RS-485; Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/8
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 70 W
  • Working Temperature-10 to +55° C (+14 to +131° F)
  • Working Humidity10 to 90%
  • Dimension (W × D × H)445 × 465 × 92 mm (17.5"× 18.3" × 3.6")
  • Weight≤ 10 kg (22 lb)
  • Certification
  • Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
  • FCCPart 15 Subpart B, ANSI C63.4
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4,EN 55035:2017



HIKVISION 32CH 3U 4K DEEPINMIND NVR
HIKVISION 32CH 3U 4K DEEPINMIND NVR
