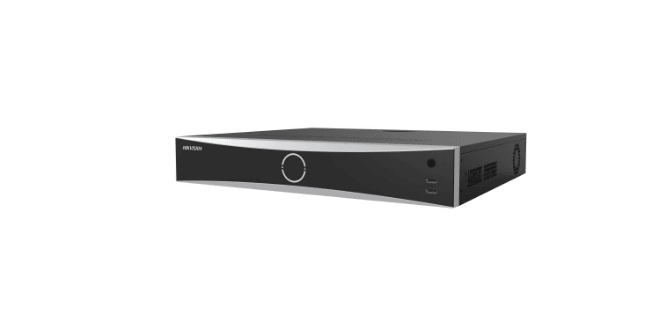

HIKVISION 32CH 1U ACUSENSE 4K NVR

HIKVISION 32CH 1U ACUSENSE 4K NVR

Utilize H.265+ compression to significantly reduce storage space by up to 75% while connecting to full channel IP cameras. Employed is stream over TLS encryption technology for secure stream transmission, double verification is supported for playback and downloading. HD video output with independent HDMI and VGA connectors provides HD Video Output.

Dual 4K HDMI resolution output for video playback, while up to 4 SATA interfaces allow for HDD connection. Enjoy 16-ch synchronous playback at up to 1080p resolution. Advanced Smart & POS Function provides multiple VCA events, smart search within the selected area of the video, and smart playback for improved efficiency.

Also includes POS information overlay for live view and playback and POS triggered recording and alarm. Access easily through 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, with Hik-Connect & DDNS (Dynamic Domain Name System) for smooth network management and web access without the need for a plug-in.

Facial Recognition and Face Picture Comparison
Modeling and analyzing face pictures captured by cameras. Realize blacklist alarm and stranger alarm via face picture library. Search target people by picture and name features.

Perimeter Protection
Adopt deep learning algorithm to reduce false alarm, effectively reduces the false alarm caused by tree branches, leaves, shadow, light, vehicles, small animals, etc.

FEATURES:

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 4-ch facial recognition for video stream, or up to 8-ch facial
• recognition for face picture
• All channels support Motion Detection 2..0
• Up to 32-ch IP camera inputs
• Up to 32-ch 1080p decoding capability
• Up to 160 Mbps incoming bandwidth

SPECS:

• Intelligent Analytics
• AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
• Engine1, engine mode is adjustable

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
• Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
• Face Picture Comparison (Captured From Camera)8-ch
• Facial Detection And Analytics Performance4-ch human face capture (HD network camera, up to 2 MP, H.264/H.265)

• Motion Detection 2.0
• By DeviceAll channels for Hikvision cameras
• By CameraAll channels

• Perimeter Protection
• By Device

  4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total;4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• By CameraAll channels

• ANPR
• By CameraAll channels
• Vehicle AttributesPlate number, license plate color, license plate type
• Plate AttributesVehicle brand, vehicle color, vehicle type

• Video And Audio
• IP Video Input32-ch
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
• HDMI 2 Output1920 × 1080/60Hz,HDMI2/VGA independent output
• VGA Output

  1-ch, 1920 × 1080/60Hz,

  HDMI1/VGA simultaneous output

• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

  32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback16-ch
• Live View Window Division1/2/4/6/8/9/16/25/32/36
• Aux Port Window Division1/2/4/6/8/9/16
• Decoding Capability

  Enable AI by NVR: 20-ch@1080p (30 fps)

  Disable AI by NVR: 32-ch@1080p (30 fps)

• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

• Network
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• APIONVIF(profile S/G); SDK; ISAPI;ONVIF(profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Auxiliary Interface
• Serial Interface2 RS-485 (half-duplex), 1 RS-232
• SATA4 SATA interfaces
• CapacityUp to 14 TB capacity for each disk
• ESATA1 eSATA interface
• Alarm In/Out16/9
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Ctrl 12V

  Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.;Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 30 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H)445 × 391 × 75 mm ( 17.5"× 15.4" × 3.0")
• Weight≤ 3.6 kg (without HDD, 7.9 lb.)

• Certification
• Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
