HIKVISION 300CH BASE VIDEO SURVEILLANCE PACKAGE
HIKVISION 300CH BASE VIDEO SURVEILLANCE PACKAGE
The HikCentral-VSS-Base-HW is designed to seamlessly integrate with the HikCentral Professional Server and comes with pre-activated licenses. This all-in-one platform is specifically tailored to effectively address the security needs of medium and large security settings, providing a user-friendly approach.
From managing individual systems like video security, access control, and intrusion alarms, to unifying multiple systems under one architecture, this product offers comprehensive protection for both people and property. With increased efficiency in daily operations, users of all types can make smarter decisions based on factual information.
Key Feature
Live View and Playback
- Custom window division configurable
- Viewing maps and real-time events during live view and playback
- Stream type self-adaptive, transcoded playback, and frame- extracting playback
- Fisheye dewarping of multi-channel
- Controlling PTZ in visualization way
- Supports decoding stream from cameras with high-definition, such as PanoVu series camera
Visual Tracking
Recording and Storage
- Recording schedule for continuous recording, event recording and command recording
- Storing videos on encoding devices, Hybrid SANs, cloud storage servers
- Providing main storage and auxiliary storage
- Providing video copy-back
- Storing alarm pictures on NVRs, Hybrid SANs, cloud storage servers, or HikCentral server
- Supports search of VCA event related videos, video footages, and event triggered video footages.
Event Management
- Camera linkage, alarm pop-up window and multiple linkage actions
- Multiple events for video security, access control, resource group, resource maintenance, etc.
- Supports adding combined alarms in a visualization way
Network Management
- Managing network transmission devices such as switches, displaying the network connection and hierarchical relationship
- of the managed resources by a topology
- Viewing the network details between the device nodes in the topology, such as downstream and upstream rate, port
- information, etc. and checking the connection path
- Exporting the topology and abnormal data to check the device connection status and health status
SPECS:
- Devices And Resources
- Cameras300
- Alarm Inputs300
- Alarm Outputs300
- Areas300
- Cameras Per Area64
- Alarm Inputs Per Area64
- Alarm Outputs Per Area64
- Recording
- Recording Schedule3000
- Recording Schedule Template200
- Event And Alarm
- Event And Alarm Rules3000
- Storage Of Events Or Alarms Without Pictures100/s
-
Events Or Alarms Sent To Clients *The Clients Include Control Clients And Mobile Clients
120/s
100Clients/s
- Notification Schedule Templates200
- Picture
-
Picture Storage *Including Event/Alarm Pictures, Face Pictures, And Vehicle Pictures.
20/s (Stored in SYS Server)
80/s (Stored in Recording Server)
- Reports
- Regular Report Rules100
- Event Or Alarm Rules In One Event/Alarm Report Rule32
- Records In One Sent Report10,000 or 10 MB
- Resources Selected In One Report *With This Limitation, You Can Generate A Neat And Clear Report Via The Control Client And It Costs Less Time.20
- Users And Roles
- Concurrent Accesses Via Web Clients And Control Clients100
- Concurrent Accesses Via Mobile Clients100
- Users3000
- Roles3000

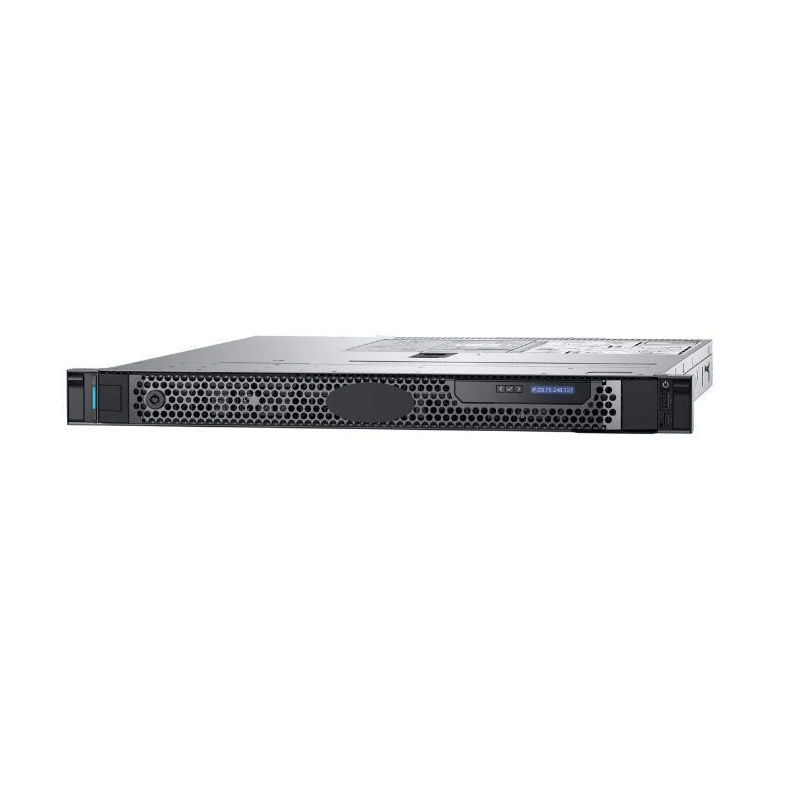

- Hardware Specifications
- CPUIntel® Xeon® E-2124
- Memory16G DDR4 DIMM slots, Supports UDIMM, up to 2666 MT/s
- Hard Disk1T 7.2K SATA×2
- Storage ArrayInternal Controllers: SAS_H330
- Rated Power ConsumptionSingle 250W (Bronze) power supply
-
Device Dimensions
Form Factor: Rack (1U)
Chassis Width: 434.00mm (17.08 in)
Chassis Depth: 595.63mm (23.45 in) (3.5”HHD)
Note: These dimensions do not include: bezel, redundant PSU
- NetworkIntegrated Intel I219-LM Ethernet LAN 10/100/1000
-
Package Dimensions
29cm × 9.26cm × 29.2cm
(11.42” × 3.7” × 11.5”)
HIKVISION 300CH BASE VIDEO SURVEILLANCE PACKAGE
The HikCentral-VSS-Base-HW is designed to seamlessly integrate with the HikCentral Professional Server and comes with pre-activated licenses. This all-in-one platform is specifically tailored to effectively address the security needs of medium and large security settings, providing a user-friendly approach.
From managing individual systems like video security, access control, and intrusion alarms, to unifying multiple systems under one architecture, this product offers comprehensive protection for both people and property. With increased efficiency in daily operations, users of all types can make smarter decisions based on factual information.
Key Feature
Live View and Playback
- Custom window division configurable
- Viewing maps and real-time events during live view and playback
- Stream type self-adaptive, transcoded playback, and frame- extracting playback
- Fisheye dewarping of multi-channel
- Controlling PTZ in visualization way
- Supports decoding stream from cameras with high-definition, such as PanoVu series camera
Visual Tracking
Recording and Storage
- Recording schedule for continuous recording, event recording and command recording
- Storing videos on encoding devices, Hybrid SANs, cloud storage servers
- Providing main storage and auxiliary storage
- Providing video copy-back
- Storing alarm pictures on NVRs, Hybrid SANs, cloud storage servers, or HikCentral server
- Supports search of VCA event related videos, video footages, and event triggered video footages.
Event Management
- Camera linkage, alarm pop-up window and multiple linkage actions
- Multiple events for video security, access control, resource group, resource maintenance, etc.
- Supports adding combined alarms in a visualization way
Network Management
- Managing network transmission devices such as switches, displaying the network connection and hierarchical relationship
- of the managed resources by a topology
- Viewing the network details between the device nodes in the topology, such as downstream and upstream rate, port
- information, etc. and checking the connection path
- Exporting the topology and abnormal data to check the device connection status and health status
SPECS:
- Devices And Resources
- Cameras300
- Alarm Inputs300
- Alarm Outputs300
- Areas300
- Cameras Per Area64
- Alarm Inputs Per Area64
- Alarm Outputs Per Area64
- Recording
- Recording Schedule3000
- Recording Schedule Template200
- Event And Alarm
- Event And Alarm Rules3000
- Storage Of Events Or Alarms Without Pictures100/s
-
Events Or Alarms Sent To Clients *The Clients Include Control Clients And Mobile Clients
120/s
100Clients/s
- Notification Schedule Templates200
- Picture
-
Picture Storage *Including Event/Alarm Pictures, Face Pictures, And Vehicle Pictures.
20/s (Stored in SYS Server)
80/s (Stored in Recording Server)
- Reports
- Regular Report Rules100
- Event Or Alarm Rules In One Event/Alarm Report Rule32
- Records In One Sent Report10,000 or 10 MB
- Resources Selected In One Report *With This Limitation, You Can Generate A Neat And Clear Report Via The Control Client And It Costs Less Time.20
- Users And Roles
- Concurrent Accesses Via Web Clients And Control Clients100
- Concurrent Accesses Via Mobile Clients100
- Users3000
- Roles3000
- Hardware Specifications
- CPUIntel® Xeon® E-2124
- Memory16G DDR4 DIMM slots, Supports UDIMM, up to 2666 MT/s
- Hard Disk1T 7.2K SATA×2
- Storage ArrayInternal Controllers: SAS_H330
- Rated Power ConsumptionSingle 250W (Bronze) power supply
-
Device Dimensions
Form Factor: Rack (1U)
Chassis Width: 434.00mm (17.08 in)
Chassis Depth: 595.63mm (23.45 in) (3.5”HHD)
Note: These dimensions do not include: bezel, redundant PSU
- NetworkIntegrated Intel I219-LM Ethernet LAN 10/100/1000
-
Package Dimensions
29cm × 9.26cm × 29.2cm
(11.42” × 3.7” × 11.5”)
