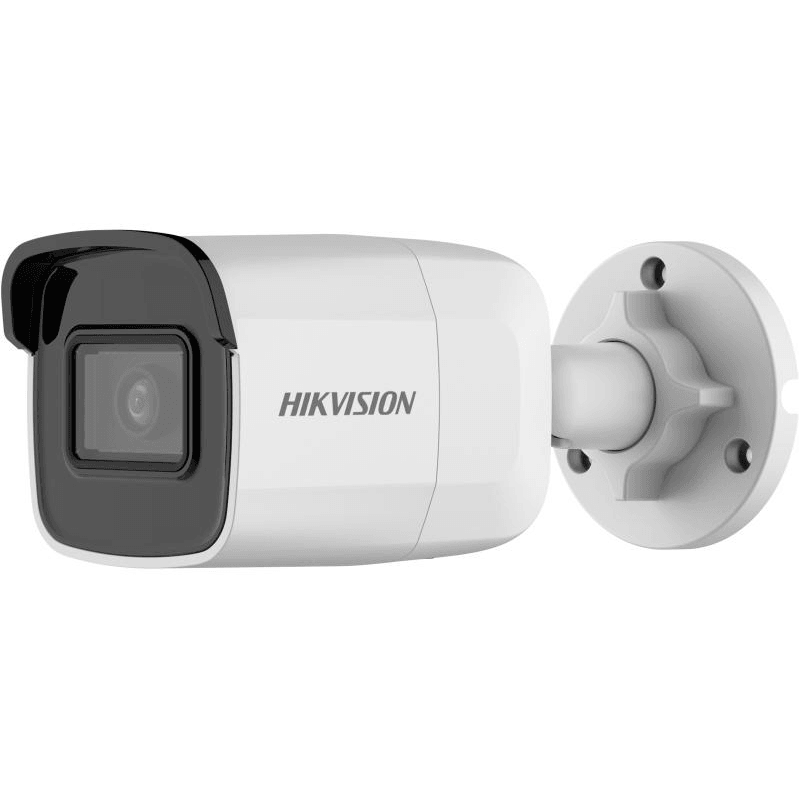

HIKVISION 2MP WDR MINI BULLET CAMERA - 2.8MM
HIKVISION 2MP WDR MINI BULLET CAMERA - 2.8MM
DS-2CD2021G0-LIU-2.8MM
Experience high quality imaging with this 2 MP WDR Fixed Mini Bullet Network Camera. Benefit from advanced features such as efficient H.265+ compression technology and 120 dB true WDR technology for clear imaging even in challenging lighting conditions.
Plus, with IP67 water and dust resistance and support for up to 256 GB SD card storage, this camera is built to withstand any environment. Trust in the value of this product to elevate your security needs.
FEATURES:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Support up to 256 GB SD card storage
SPECS:
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focus Fixed
-
Focal Length & FOV
2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°
4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
- Lens MountM12
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bitrate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)Support 1 fixed region for main stream
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, 3D DNR
- Wide Dynamic Range (WDR)120 dB
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in Micro SD slot, up to 256 GB
-
Reset Key
Yes
- Event
- Smart EventLine crossing detection, intrusion detection
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- General
-
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Material Metal, Plastic
- Dimension69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
- Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
- WeightApprox. 350 g (0.8 lb.)
- With Package WeightApprox. 450 g (1.0 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
