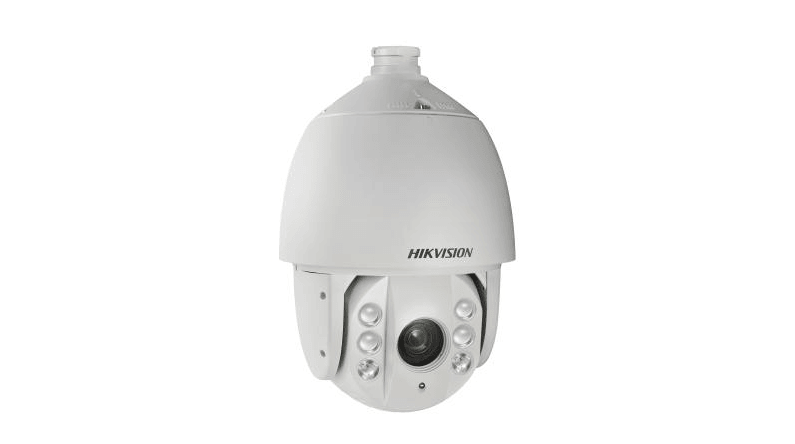

HIKVISION 2MP TVI 7"" 32X IR PTZ DS-2AE7232TI-A(D)
DS-2AE7232TI-A(D)
The HIKVISION 2MP TVI 7"" 32X IR PTZ DS-2AE7232TI-A(D) provides top-of-the-line imaging with 2 MP resolution and exceptional low-light performance thanks to its powered-by-DarkFighter technology.
With 120 dB WDR technology, this camera offers clear imaging even in the presence of strong back lighting. Pan and tilt capabilities allow for easy monitoring of specific areas while the 32x optical zoom brings subjects in expansive areas into clear view. With an impressive 150m IR range, this camera ensures safety even at night. Plus, its water and dust resistant design (IP66) make it perfect for any environment.
FEATURES:
-
High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong backlighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
32x optical zoom allows for close viewing of subjects in expansive areas
-
Up to 150m IR range ensures safety at night
-
Water and dust resistant (IP66)
SPECS:
- Camera
-
Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920x1080
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
-
Day & Night IR cut filter
-
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
0 lux with IR
-
Zoom32 × optical, 16 × digital
- Lens
- FOV Horizontal FOV: 54.2° to 1.97° (wide to tele)
-
Focal Length 4.8 mm to 153 mm, 32 × optical
- Focus Auto, semi-auto, manual
-
ApertureF1.2 to F4.4
-
Zoom SpeedApprox. 3.5 s (optical, wide to tele)
- Illuminator
-
Supplement Light TypeIR
-
Supplement Light Range Up to 150 m
- PTZ
-
Movement Range (Pan)360° endless
-
Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
-
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
-
Presets256
-
Patrol Scan10 patrols, up to 32 presets for each patrol
-
Pattern Scan5 patterns, record time over 10 minutes for each scan
-
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
-
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
-
Image Settings AGC, white balance
-
Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
-
Image Enhancement BLC, HLC, 3D DNR
-
Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- General
-
Power 24V AC, max. 40 W (IR: 14 W)
-
DimensionØ 220 mm × 353.4 mm (Ø 8.66" ×13.91")
- Weight Approx. 4.5 kg (9.92 lb.)
-
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, surge protection and voltage transient protection
