- Vendor: HIKVISION
- Type: CCTV
- SKU: 11430

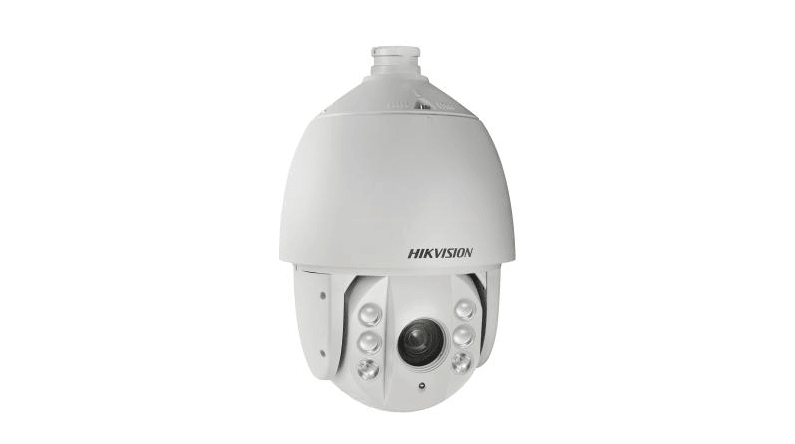

HIKVISION 2MP TVI 7"" 25X IR PTZ DS-2AE7225TI-A(D)
R 8,507.00
Unit price
per
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
HIKVISION 2MP TVI 7"" 25X IR PTZ DS-2AE7225TI-A(D)
DS-2AE7225TI-A(D)
This HIKVISION PTZ camera boasts a 7-inch display and 2 MP resolution, delivering high-quality imaging. With excellent low-light performance powered by DarkFighter technology and 120 dB WDR technology, it provides clear imaging even in strong backlighting.
Its pan and tilt ability allows for monitoring of specific areas, and the 25x optical zoom enables closer viewing of subjects in expansive areas. With an impressive 150m IR range, it ensures safety at night, and its water and dust resistant design (IP66) only adds to its reliability.
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong backlighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for close viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920x1080
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
- Zoom25 × optical, 16 × digital
- Lens
- FOV Horizontal FOV: 57.6° to 2.5° (wide to tele)
- Focal Length 4.8 mm to 120 mm, 25 × optical
- FocusAuto, semi-auto, manual
- Aperture F1.6 to F3.5
- Zoom Speed Approx. 3.6 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 150 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets 256
- Patrol Scan 10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power 24V AC, max. 40 W (IR: 14 W)
- DimensionØ 220 mm × 353.4 mm (Ø 8.66" ×13.91")
- Weight Approx. 4.5 kg (9.92 lb.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, surge protection and voltage transient protection
HIKVISION 2MP TVI 7"" 25X IR PTZ DS-2AE7225TI-A(D)
DS-2AE7225TI-A(D)
This HIKVISION PTZ camera boasts a 7-inch display and 2 MP resolution, delivering high-quality imaging. With excellent low-light performance powered by DarkFighter technology and 120 dB WDR technology, it provides clear imaging even in strong backlighting.
Its pan and tilt ability allows for monitoring of specific areas, and the 25x optical zoom enables closer viewing of subjects in expansive areas. With an impressive 150m IR range, it ensures safety at night, and its water and dust resistant design (IP66) only adds to its reliability.
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong backlighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for close viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920x1080
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
- Zoom25 × optical, 16 × digital
- Lens
- FOV Horizontal FOV: 57.6° to 2.5° (wide to tele)
- Focal Length 4.8 mm to 120 mm, 25 × optical
- FocusAuto, semi-auto, manual
- Aperture F1.6 to F3.5
- Zoom Speed Approx. 3.6 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 150 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets 256
- Patrol Scan 10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power 24V AC, max. 40 W (IR: 14 W)
- DimensionØ 220 mm × 353.4 mm (Ø 8.66" ×13.91")
- Weight Approx. 4.5 kg (9.92 lb.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, surge protection and voltage transient protection
