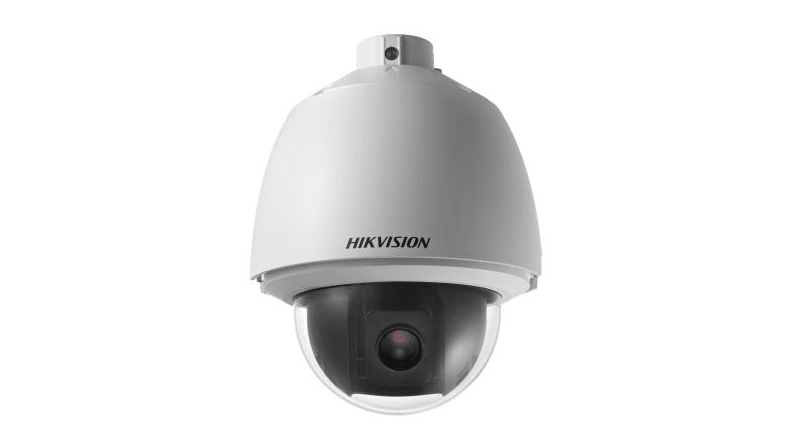

HIKVISION 2MP TVI 5"" 32X PTZ DS-2AE5232T-A(E)
HIKVISION 2MP TVI 5"" 32X PTZ DS-2AE5232T-A(E)
DS-2AE5232T-A(E)
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
- Water and dust resistant (IP66)
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
-
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
- Zoom32 × optical, 16 × digital
- Lens
- Focal Length 4.8 mm to 153 mm, 32 × optical
- FOV Horizontal FOV: 54.2° to 1.97° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.2 to F4.4
- Zoom SpeedApprox. 5.6 s (optical, wide to tele)
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-5° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset Freezing Yes
- Patrol Scan 10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm 2 alarm inputs, 1 alarm output
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power 24vdc, max. 24 W
- DimensionΦ 220 mm × 326 mm (Φ 8.66" × 12.83")
- Weight Approx. 3 kg (6.61 Ib.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10, TVS 4,000 V lightning protection, surge protection and voltage transient protection
HIKVISION 2MP TVI 5"" 32X PTZ DS-2AE5232T-A(E)
DS-2AE5232T-A(E)
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
- Water and dust resistant (IP66)
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
-
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
- Zoom32 × optical, 16 × digital
- Lens
- Focal Length 4.8 mm to 153 mm, 32 × optical
- FOV Horizontal FOV: 54.2° to 1.97° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.2 to F4.4
- Zoom SpeedApprox. 5.6 s (optical, wide to tele)
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-5° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset Freezing Yes
- Patrol Scan 10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm 2 alarm inputs, 1 alarm output
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power 24vdc, max. 24 W
- DimensionΦ 220 mm × 326 mm (Φ 8.66" × 12.83")
- Weight Approx. 3 kg (6.61 Ib.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10, TVS 4,000 V lightning protection, surge protection and voltage transient protection
