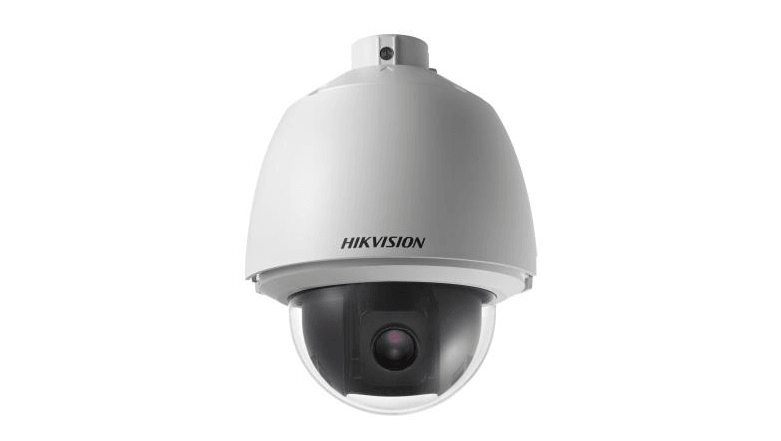

HIKVISION 2MP TVI 5"" 25X PTZ DS-2AE5225T-A(E)
DS-2AE5225T-A(E)
Upgrade to the HIKVISION 2MP TVI 5" 25X PTZ DS-2AE5225T-A(E) for unparalleled quality. Experience 2 MP resolution, advanced low-light performance with powered-by-DarkFighter technology, and 120 dB WDR technology for clear imaging even in challenging lighting conditions.
With the ability to pan, tilt, and an impressive 25x optical zoom, this camera allows for close monitoring of specific areas. Plus, it's water and dust resistant with an IP66 rating. Don't settle for less, upgrade to the best.
FEATURES:
-
High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back lighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
25x optical zoom allows for close viewing of subjects in expansive areas
-
Water and dust resistant (IP66)
SPECS:
- Camera
-
Image Sensor 1/2.8" Progressive Scan CMOS
-
Max. Resolution 1920×1080
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
-
Day & Night IR cut filter
-
Zoom25 × optical, 16 × digital
- Lens
-
Focal Length 4.8 mm to 120 mm, 25 × optical
-
FOV
Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
-
FocusAuto, semi-auto, manual
- Aperture F1.6 to F3.5
-
Zoom Speed Approx. 3.6 s (optical, wide to tele)
- PTZ
-
Movement Range (Pan)360° endless
-
Movement Range (Tilt)-5° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
-
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
-
Presets256
- Preset Freezing Yes
-
Patrol Scan 10 patrols, up to 32 presets for each patrol
-
Pattern Scan5 patterns, record time over 10 minutes for each scan
-
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
-
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
-
Image Settings AGC, white balance
-
Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
-
Image Enhancement BLC, HLC, 3D DNR
-
Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- General
-
Power 24V AC, max. 24 W
-
DimensionΦ 220 mm × 326 mm (Φ 8.66" × 12.83")
- Weight Approx. 3 kg (6.61 Ib.)
-
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- Protection IP66 (outdoor dome), IK10, TVS 4,000 V lightning protection, surge protection and voltage transient protection
