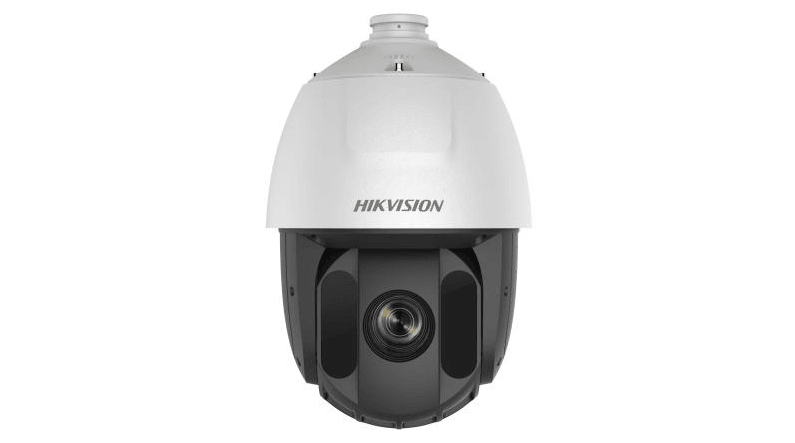

HIKVISION 2MP TVI 5"" 25X IR PTZ DS-2AE5225TI-A(E)
DS-2AE5225TI-A(E)
Experience the power of Hikvision's DS-2AE5225TI-A(E) IR Turbo 5-Inch Speed Dome. Capture high quality images even in low light conditions with the help of black anti-reflective glass and an embedded CMOS chip. Take advantage of the 25x optical zoom and IR cut filter to see every detail in real-time 1920 x 1080 resolution over a wide area. With a remarkable IR distance of up to 150m, you won't miss a thing. Upgrade your surveillance experience with Hikvision.
FEATURES:
- High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back lighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
25x optical zoom allows for closer viewing of subjects in expansive areas
-
Up to 150m IR range ensures safety at night
-
Water and dust resistant (IP66)
SPECS:
- Camera
-
Image Sensor 1/2.8" Progressive Scan CMOS
-
Max. Resolution 1920×1080
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
-
Day & Night IR cut filter
-
Zoom25 × optical, 16 × digital
- Lens
-
Focal Length 4.8 mm to 120 mm, 25 × optical
-
FOV
Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
-
FocusAuto, semi-auto, manual
-
Aperture F1.6 to F3.5
-
Zoom Speed Approx. 3.6 s (optical, wide to tele)
- Illuminator
-
Supplement Light TypeIR
-
Supplement Light Range150 m
- Network
-
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
-
Image Settings AGC, white balance
-
Wide Dynamic Range (WDR)≥ 120 dB
-
Image Stabilization EIS
-
Image Enhancement BLC, HLC, 3D DNR
-
Privacy Mask8 programmable privacy masks
-
Regional Focus Yes
- General
-
Power 24V AC/36 VDC, max. 30 W (IR: 10 W)
-
DimensionΦ 208 mm × 305 mm (Φ 8.19" × 12.01")
-
Weight Approx. 3.3 kg (7.28 Ib.)
-
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
-
Language English
- Approval
-
Protection IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
