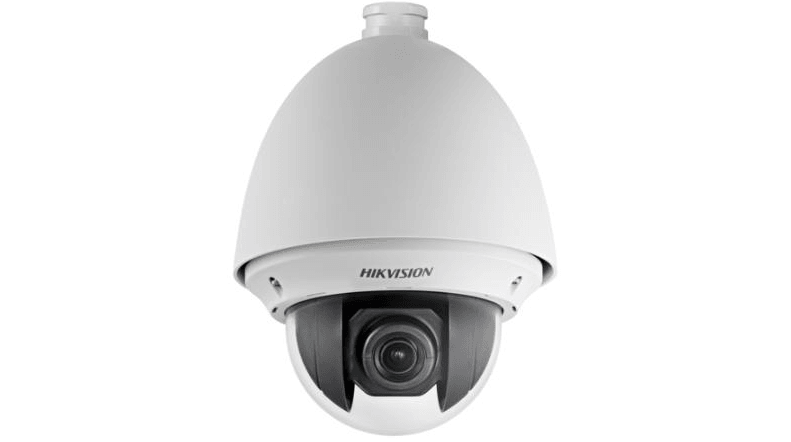

HIKVISION 2MP TVI 4"" 25X PTZ DS-2AE4225T-D(E)
DS-2AE4225T-D(E)
Capture stunning images with the HIKVISION 2MP TVI 4"" 25X PTZ DS-2AE4225T-D(E). Boasting 2 MP resolution and powered-by-DarkFighter technology, this speed dome delivers exceptional low-light performance. With 120 dB WDR technology, it produces clear images even in strong back lighting.
The pan and tilt capability allows for precise monitoring of specific areas, while the 25x optical zoom brings you closer to your subjects in expansive areas. Plus, this camera is water and dust resistant with an IP66 rating, ensuring its durability in any environment. Experience the power of this extraordinary product today!
FEATURES:
-
High quality imaging with 2 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back lighting due to 120 dB WDR technology
-
Pan and tilt ability enables camera to monitor zones of interest
-
25 × optical zoom allows for close viewing of subjects in expansive areas
-
Water and dust resistant (IP66)
SPECS:
- Camera
-
Image Sensor 1/2.8" Progressive Scan CMOS
-
Max. Resolution 1920×1080
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
-
Day & Night IR cut filter
-
Zoom25× optical, 16 × digital
- Lens
-
Focal Length 4.8mm to 120mm, 25 × optical
-
FOV
Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
-
FocusAuto, semi-auto, manual
-
Aperture F1.6 to F3.5
-
Zoom Speed Approx. 3.6 s (optical, wide to tele)
- Network
-
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
-
Image Settings AGC, white balance
-
Wide Dynamic Range (WDR)≥ 120 dB
-
Image Stabilization EIS
-
Image Enhancement BLC, HLC, 3D DNR
-
Privacy Mask8 programmable privacy masks
-
Regional Focus Yes
- General
-
Power 12V DC, max. 16 W
-
DimensionØ 179.4 × 239.5 mm (Ø 7.1" × 9.4")
-
Weight Approx. 2 kg (4.41 lb.)
-
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
-
Language English
- Approval
-
Protection IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
