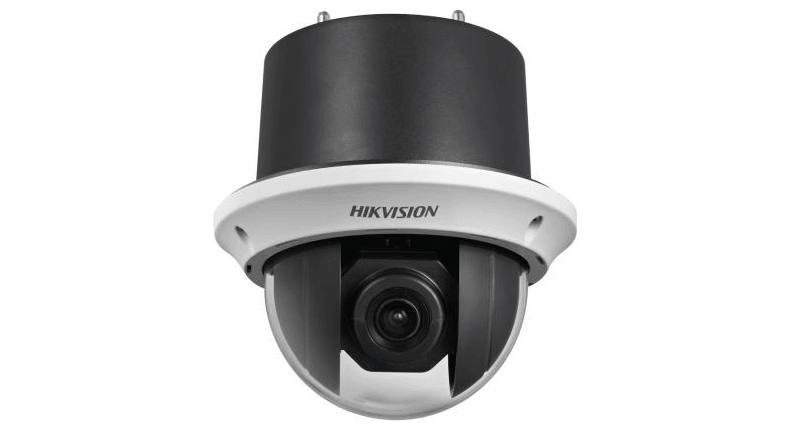

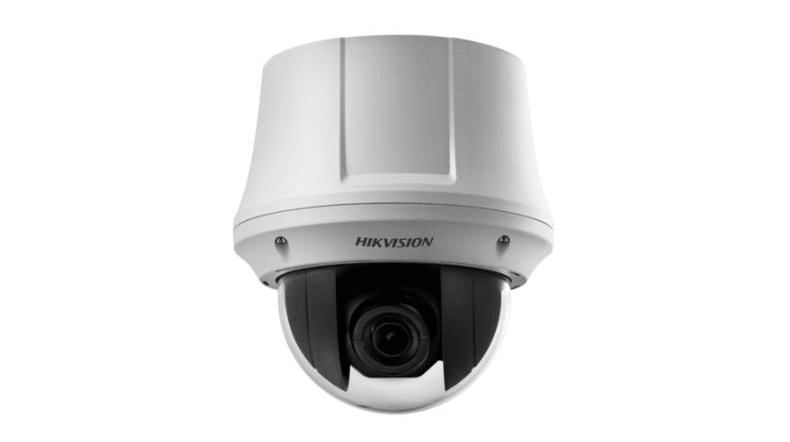

HIKVISION 2MP TVI 4"" 15X PTZ DS-2AE4215T-D3(D)
DS-2AE4215T-D3(D)
The HIKVISION DS-2AE4215T-D3(D) PTZ Dome Cameras are an unbeatable choice for capturing unparalleled, high-quality images. With its advanced embedded CMOS chip, this camera makes achieving WDR and real-time 1920 × 1080 resolution a breeze. Plus, the 15× optical zoom and IR cut filter deliver stunning detail across vast areas, giving you a truly comprehensive view. Don't settle for less when you can have the best - choose HIKVISION for all your surveillance needs!
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light by 120 dB WDR technology
- Pan and tilt ability enables the camera to capture interested areas
- Securing an expansive area with 15x optical zoom
- Water and dust resistant (IP66)
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
-
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
- Zoom 15 × optical, 16 × digital
- Lens
- Focal Length 5 mm to 75 mm, 15 × optical
-
FOV
Horizontal FOV: 53.8° to 4.0° (wide to tele)
Vertical FOV: 31.9° to 2.3° (wide to tele)
Diagonal FOV: 60.4° to 4.6° (wide to tele)
- FocusAuto, semi-auto, manual
- Aperture F1.6 to F3.5
- Zoom Speed Approx. 2.4 s (optical, wide to tele)
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-5° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets 256
- Preset Freezing Yes
- Patrol Scan 10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm2 alarm inputs, 1 alarm output
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power 12V DC, max. 12 W
-
Dimension
DS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1\")
DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5 × 6.6\")"
- Weight Approx. 2 kg (4.41 lb.)
- Operating Condition-10° C to 50° C (14° F to 122° F). Humidity 90% or less
- Language English
- Approval
- Protection TVS 4,000 V lightning protection, surge protection and voltage transient protection
