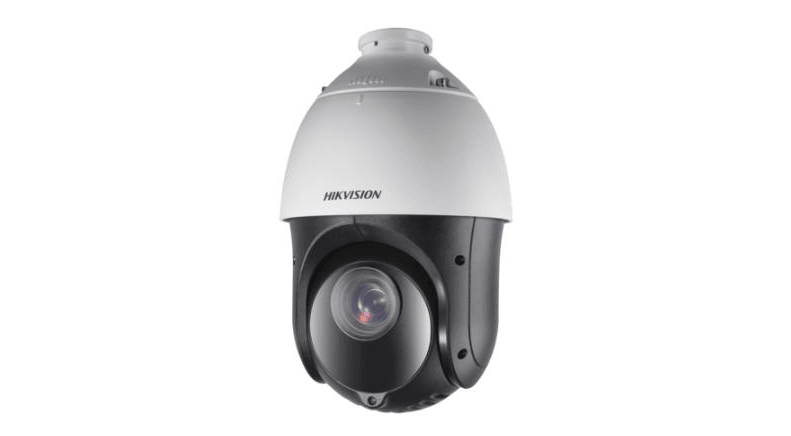

HIKVISION 2MP TVI 4'' 15X IR PTZ DS-2AE4215TI-D(E)
DS-2AE4215TI-D(E)
The Hikvision DS-2AE4215TI-D(E) IR Turbo 4-Inch Speed Dome is the perfect solution for capturing stunning images even in low light conditions. Its black anti-reflective glass increases luminosity and allows the powerful IR distance of up to 100 meters.
Plus, the embedded CMOS chip enables WDR technology and a real-time resolution of 1920 × 1080. You won't miss any details with the 15× optical zoom and IR cut filter, making this camera perfect for capturing expansive areas.
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
- Zoom15× optical, 16 × digital
- Lens
- Focal Length5 mm to 75 mm, 15 × optical
- FOV Horizontal FOV: 53.8° to 4.0° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom Speed Approx. 2.4 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 100 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset Freezing Yes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 20 W (IR: 7 W)
- DimensionØ 164.5 × 295 mm (Ø 6.47" × 11.61")
- Weight Approx. 2 kg (4.41 lb.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
HIKVISION 2MP TVI 4'' 15X IR PTZ DS-2AE4215TI-D(E)
DS-2AE4215TI-D(E)
The Hikvision DS-2AE4215TI-D(E) IR Turbo 4-Inch Speed Dome is the perfect solution for capturing stunning images even in low light conditions. Its black anti-reflective glass increases luminosity and allows the powerful IR distance of up to 100 meters.
Plus, the embedded CMOS chip enables WDR technology and a real-time resolution of 1920 × 1080. You won't miss any details with the 15× optical zoom and IR cut filter, making this camera perfect for capturing expansive areas.
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
-
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & Night IR cut filter
- Zoom15× optical, 16 × digital
- Lens
- Focal Length5 mm to 75 mm, 15 × optical
- FOV Horizontal FOV: 53.8° to 4.0° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom Speed Approx. 2.4 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 100 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
-
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset Freezing Yes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display Yes
- Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory Yes
- Video
-
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image Settings AGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Stabilization EIS
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional Focus Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
-
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 20 W (IR: 7 W)
- DimensionØ 164.5 × 295 mm (Ø 6.47" × 11.61")
- Weight Approx. 2 kg (4.41 lb.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language English
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
