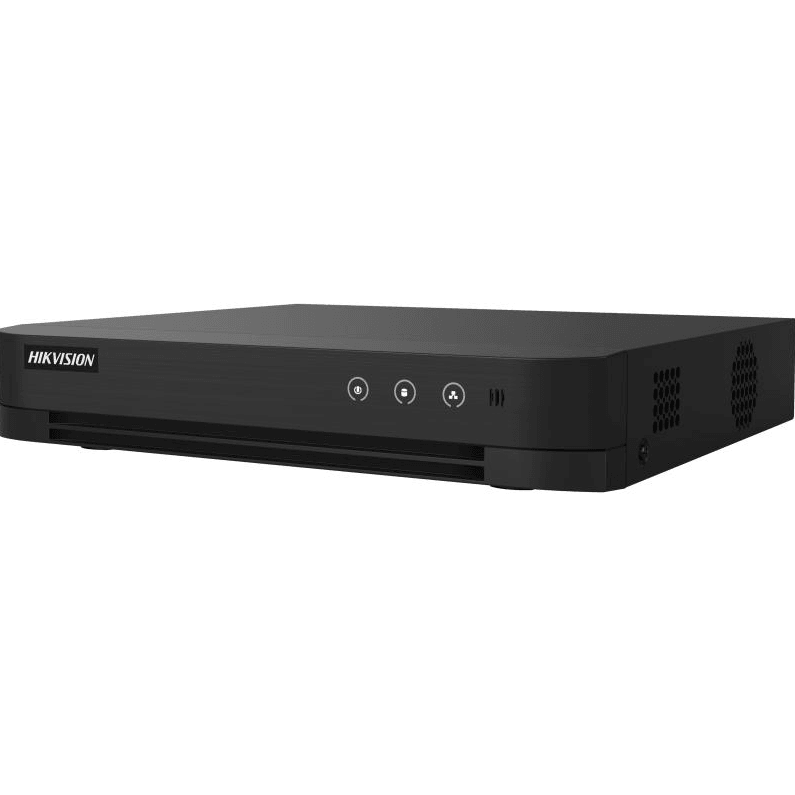

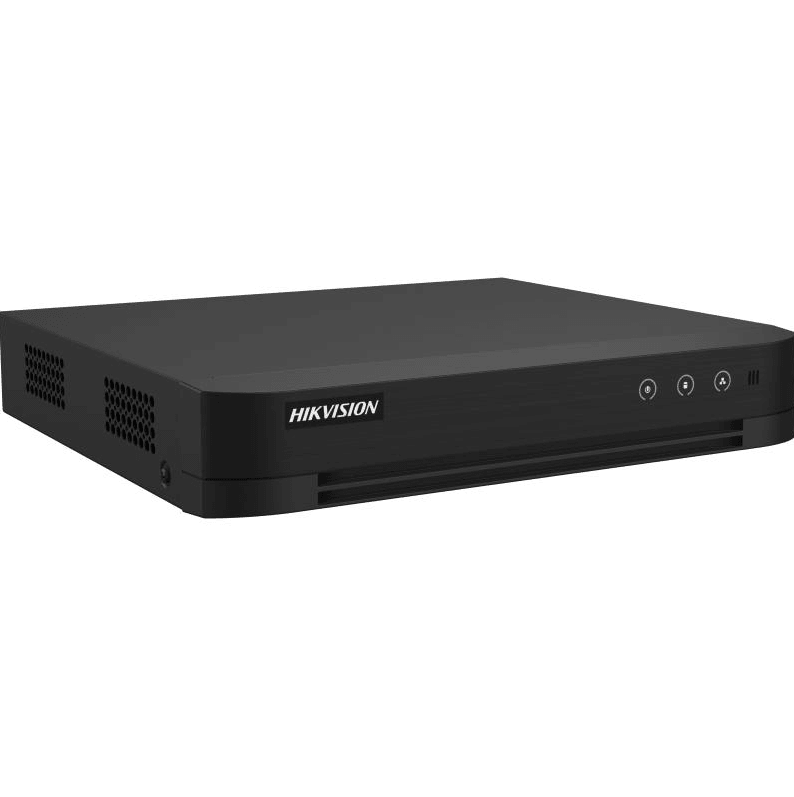

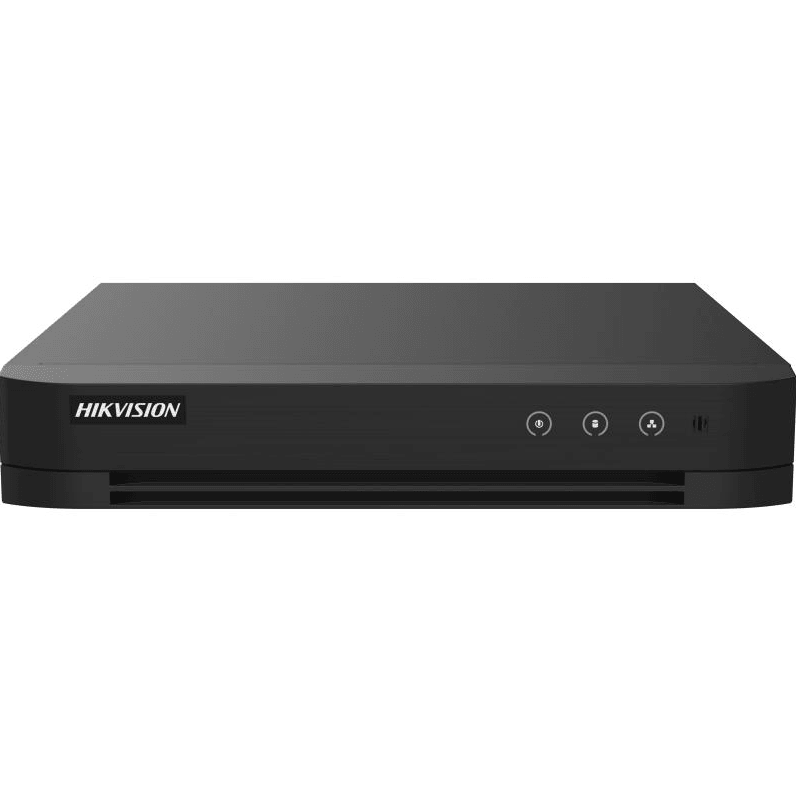

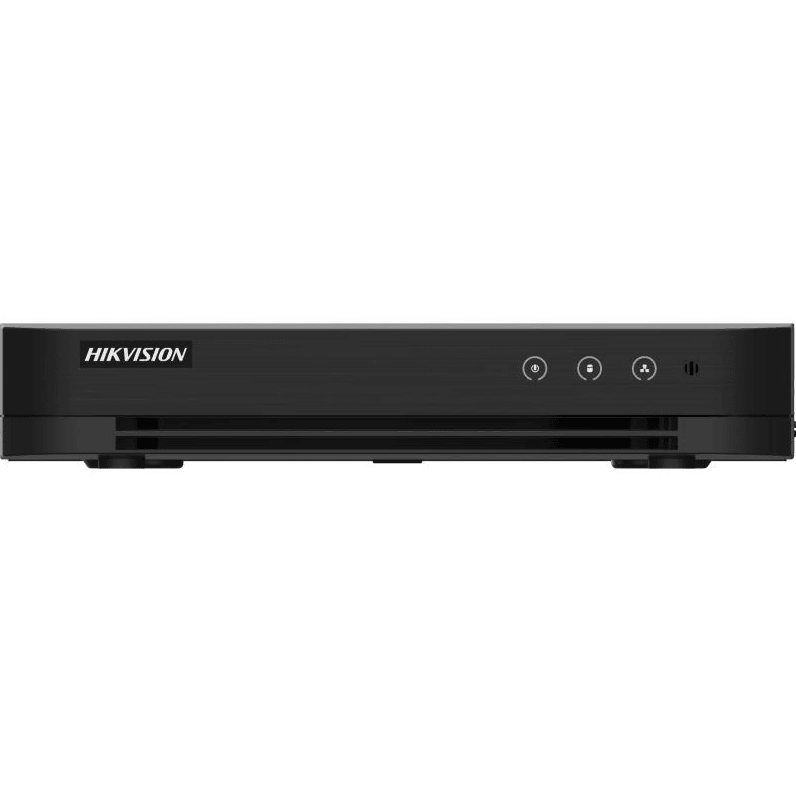

HIKVISION 2MP LITE 8CH DVR DS-7208HGHI-M1(C)
DS-7208HGHI-M1(C)
Enhance your security with HIKVISION 2MP LITE 8CH DVR DS-7208HGHI-M1(C)! Featuring H.265 Pro+ video compression, this DVR improves encoding efficiency and reduces data storage costs. It supports 1080p Lite on all channels, delivering image quality similar to 1080p. Plus, with 1 SATA interface and smart search capabilities, you can efficiently store and playback footage. Stay connected with Hik-Connect & DDNS for easy network management, and enjoy the benefits of deep learning based human and vehicle targets classification for Motion Detection 2.0.
FEATURES:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
-
H.265 Pro+/H.265 Pro/H.265 video compression
-
HDTVI/AHD/CVI/CVBS/IP video input
-
Audio via coaxial cable
-
Up to 10-ch IP camera input (up to 5 MP)
-
Encoding ability up to 1080p lite @ 15 fps
-
Max. 1200 m for 720p HDTVI signal
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
-
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
-
Frame Rate
Mainstream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
-
Video Bitrate 32 Kbps to 4 Mbps
-
Stream Type Video, Video & Audio
-
Audio Compression G.711u
-
Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDTVI Input1080p25, 1080p30, 720p25, 720p30
-
AHD Input1080p25, 1080p30, 720p25, 720p30
-
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
-
HDMI Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
-
VGA Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
-
Video Output Mode HDMI/VGA simultaneous output
-
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
-
Audio Output 1-ch, RCA (Linear, 1 KΩ)
-
Two-Way Audio Reuse the first audio input
-
Synchronous Playback 8-ch
- Network
- Remote Connection 64
-
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
-
Total Bandwidth 72 Mbps
-
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 4 TB capacity for each disk
-
USB Interface Rear panel: 2 × USB 2.0
-
Alarm In/Out N/A
- General
-
Power Supply 12vdc, 1.5 A
-
Consumption≤ 17 W (without HDD)
-
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
-
Working Humidity10% to 90%
-
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
-
Weight≤ 1 kg (without HDD, 2.2 lb.)
