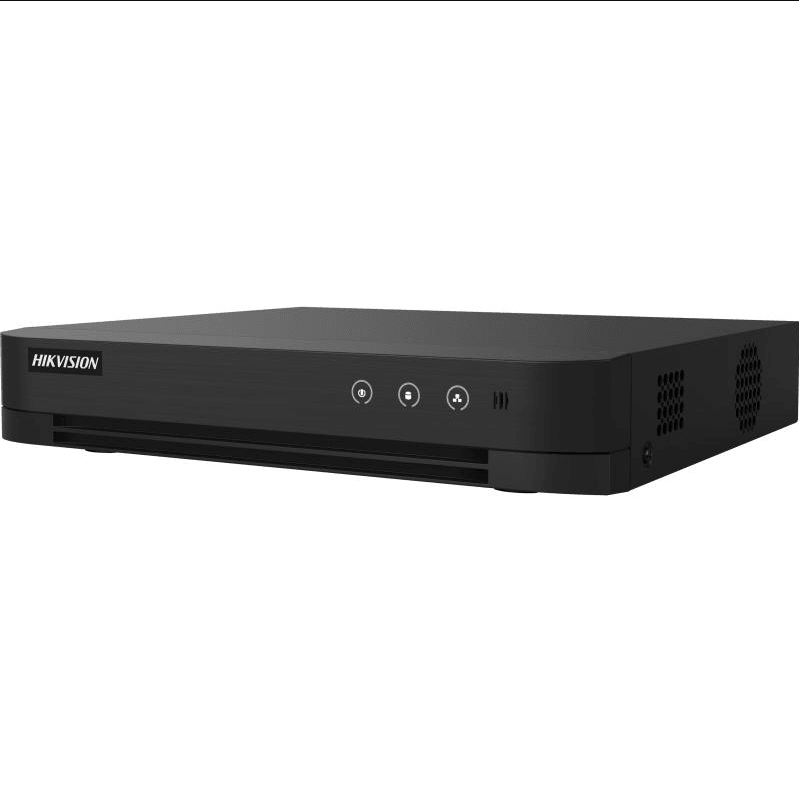

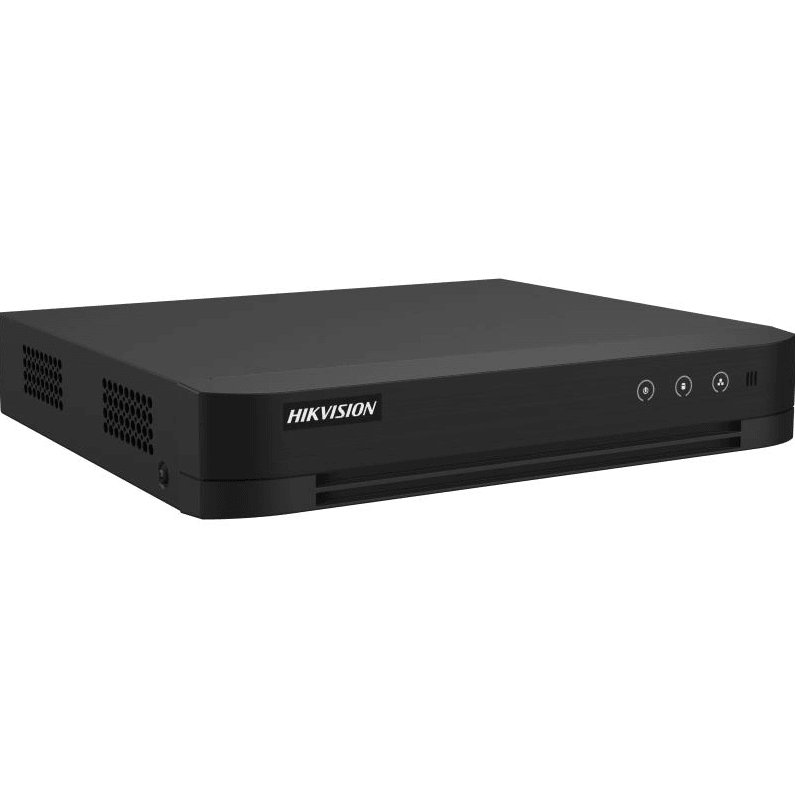

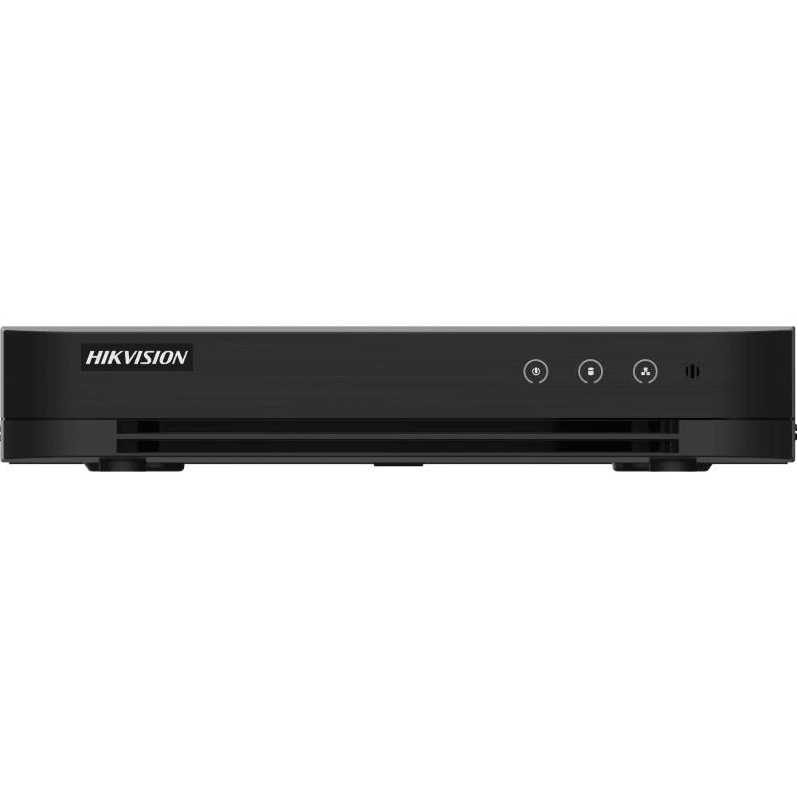

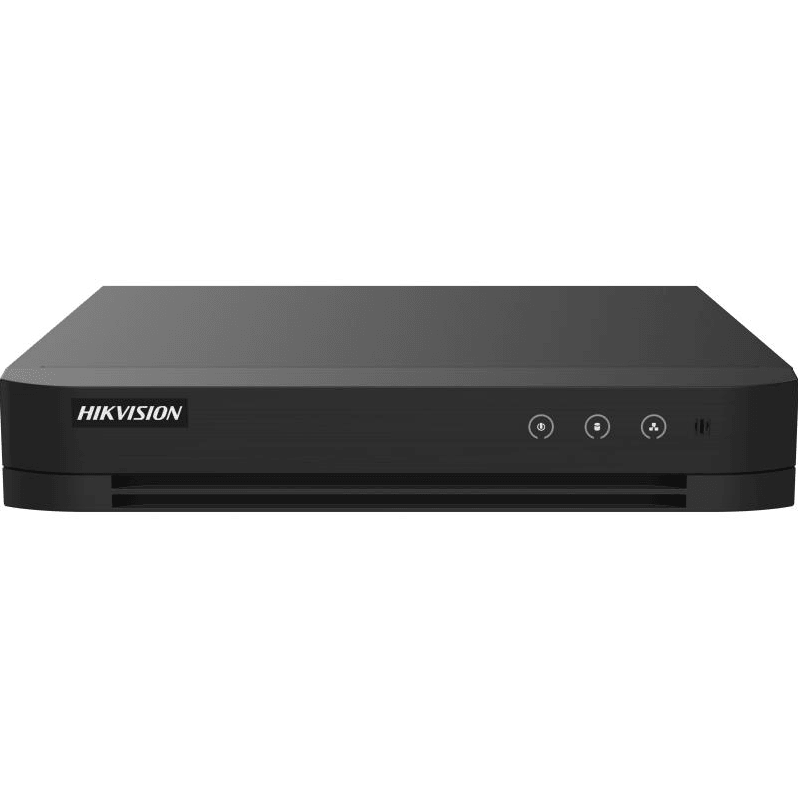

HIKVISION 2MP LITE 4CH DVR DS-7204HGHI-M1(C)
HIKVISION 2MP LITE 4CH DVR DS-7204HGHI-M1(C)
DS-7204HGHI-M1(C)
-H.265 Pro+ video compression enhances encoding efficiency and lowers data storage expenses. -All channels support 1080p Lite, which displays similar image quality to 1080p during storage and playback. -1 SATA interface allows for up to 6TB capacity per HDD. -Efficient playback is possible with smart search and access to Hik-Connect & DDNS for easy network management. -The Motion Detection 2 feature utilizes deep learning to classify human and vehicle targets.
FEATURES:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch IP camera input (up to 2 MP)
- Encoding ability up to 1080p lite @ 30 fps
- Max. 1200 m for 720p HDTVI signal
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
-
Frame Rate
Mainstream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-

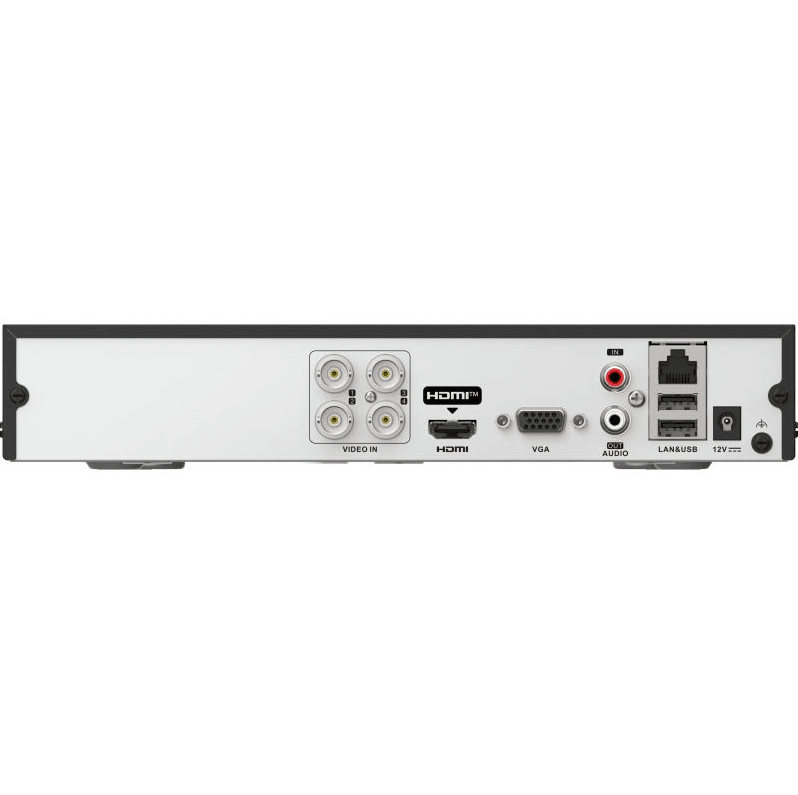

HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- CVBS Input Support
- HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- Synchronous Playback 4-ch
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- Video Output Mode HDMI/VGA simultaneous output
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
-
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Two-Way Audio Reuse the first audio input
- Network
- Total Bandwidth 64 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
- Remote Connection 32
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 4 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out N/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 16 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- Weight≤ 0.8 kg (without HDD, 1.8 lb.)
HIKVISION 2MP LITE 4CH DVR DS-7204HGHI-M1(C)
DS-7204HGHI-M1(C)
-H.265 Pro+ video compression enhances encoding efficiency and lowers data storage expenses. -All channels support 1080p Lite, which displays similar image quality to 1080p during storage and playback. -1 SATA interface allows for up to 6TB capacity per HDD. -Efficient playback is possible with smart search and access to Hik-Connect & DDNS for easy network management. -The Motion Detection 2 feature utilizes deep learning to classify human and vehicle targets.
FEATURES:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch IP camera input (up to 2 MP)
- Encoding ability up to 1080p lite @ 30 fps
- Max. 1200 m for 720p HDTVI signal
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
-
Frame Rate
Mainstream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- CVBS Input Support
- HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- Synchronous Playback 4-ch
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- Video Output Mode HDMI/VGA simultaneous output
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
-
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Two-Way Audio Reuse the first audio input
- Network
- Total Bandwidth 64 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
- Remote Connection 32
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 4 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out N/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 16 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- Weight≤ 0.8 kg (without HDD, 1.8 lb.)
