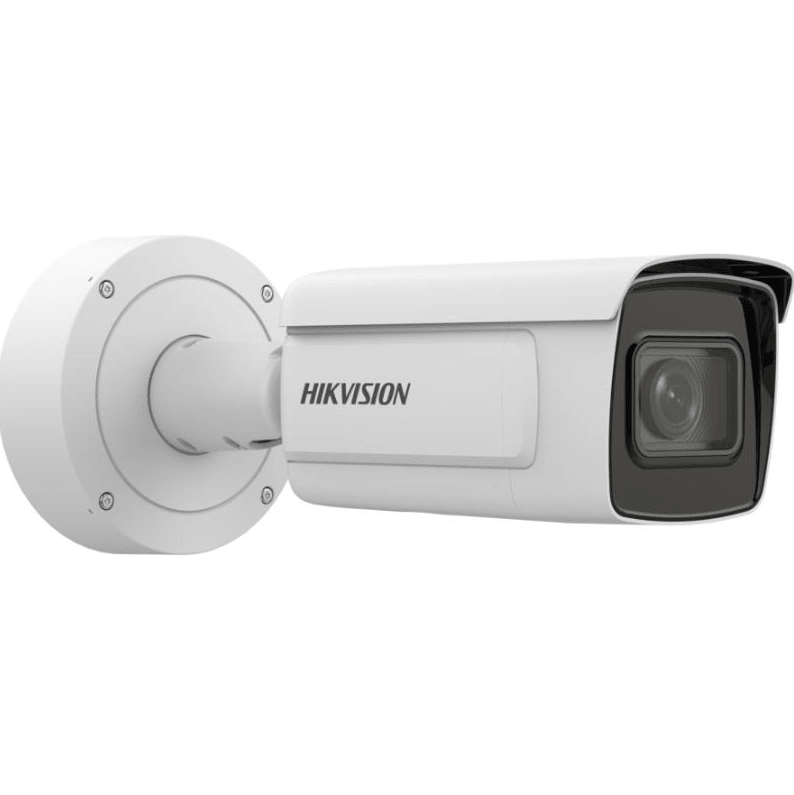

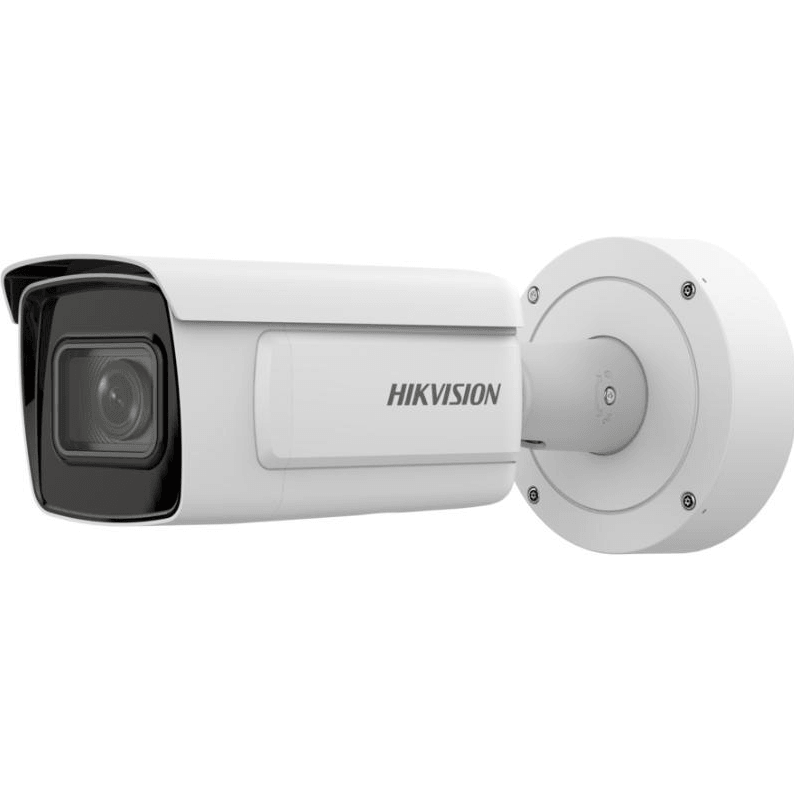

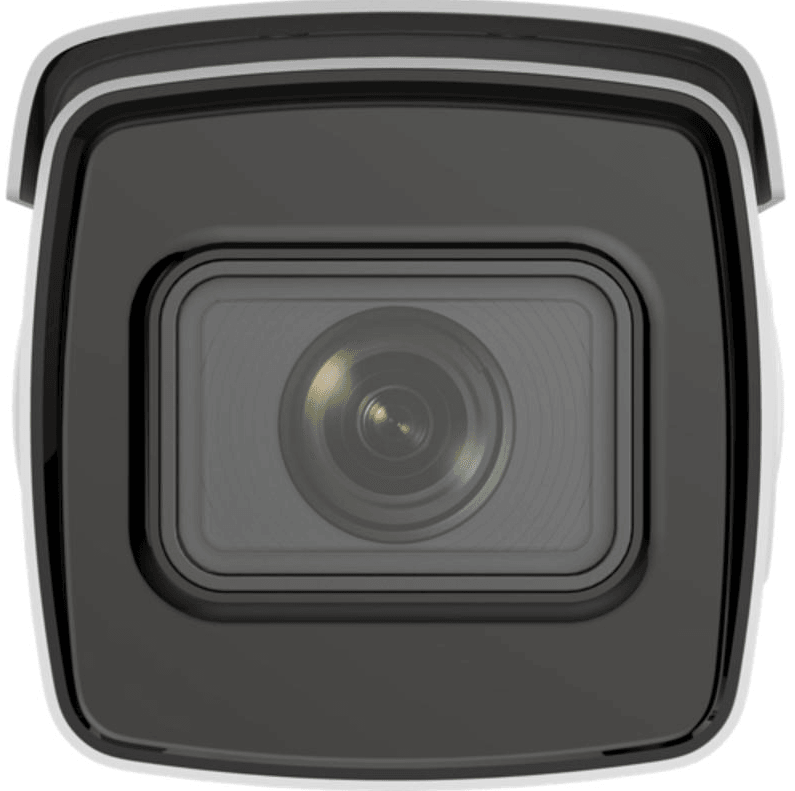

HIKVISION 2MP DEEPVIEW MOTO VARIFOCAL BULLET
HIKVISION 2MP DEEPVIEW MOTO VARIFOCAL BULLET
The 2MP DeepinView Moto Varifocal Bullet camera offers outstanding imaging capabilities with a 2 MP resolution. Experience exceptional low-light performance thanks to DarkFighter technology, while the advanced 140 dB WDR feature allows for clear imaging even in strong back light.
With efficient H.265+ compression technology, bandwidth and storage are minimized, while the camera also supports up to 5 streams for a wide range of applications. This camera is also water and dust resistant (IP67) and vandal proof (IK10) for added durability.
FEATURES:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
SPECS:
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution1920 × 1080
-
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
-
Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
-
Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- Iris TypeP-iris
-
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
- FocusAuto,Semi-auto,Manual
- DORI
-
DORI
Wide:
2.8 to 12 mm: D (Detect): 45 m, O (Observe): 17.9 m, R (Recognize): 9 m, I (Identify): 4.5 m
8 to 32 mm: D (Detect): 112.7 m, O (Observe): 44.8 m, R (Recognize): 22.6 m, I (Identify): 11.3 m
Tele:
2.8 to 12 mm: D (Detect): 111.8 m, O (Observe): 44.3 m, R (Recognize): 22.4 m, I (Identify): 11.2 m
8 to 32 mm: D (Detect): 300 m, O (Observe): 119.0 m, R (Recognize): 60 m, I (Identify): 30 m
- Illuminator
- IR Wavelength850 nm
- Smart Supplement LightYes
-
Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Supplement Light TypeIR
- AI Open Platform
-
Model Specification
Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
- Video
-
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280× 720)
60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280× 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
-
Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- E-PTZSupport Patrol and Auto Tracking settings
- Audio
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio TypeMono sound
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- SNR≥ 52 dB
- Privacy Mask8 programmable polygon privacy masks
- Image StabilizationEIS
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power OutputWith -Y: 12 VDC, max. 100 mA
- Event
- Smart Eventscene change detection,audio exception detection,defocus detection
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
-
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,
Supports dynamic mosaic mask
-
Face Capture
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Supports dynamic mosaic mask,
Gets 7 face features
-
Face Comparison
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
-
People Counting
Supports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment
-
Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
-
Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
-
Hard Hat Detection
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
- MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
-
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
-
On/Off Duty Detection
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
- General
- MaterialAluminum alloy body
-
Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
-
Dimension
Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\")
With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"
- Package Dimension405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
- WeightApprox. 1950 g (4.2 lb.)
- With Package WeightApprox. 3070 g (6.7 lb.)
- Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, password protection, one-key reset
- HeaterYes
- Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
- Automotive And RailwayEN50121-4
- OtherPVC FREE
