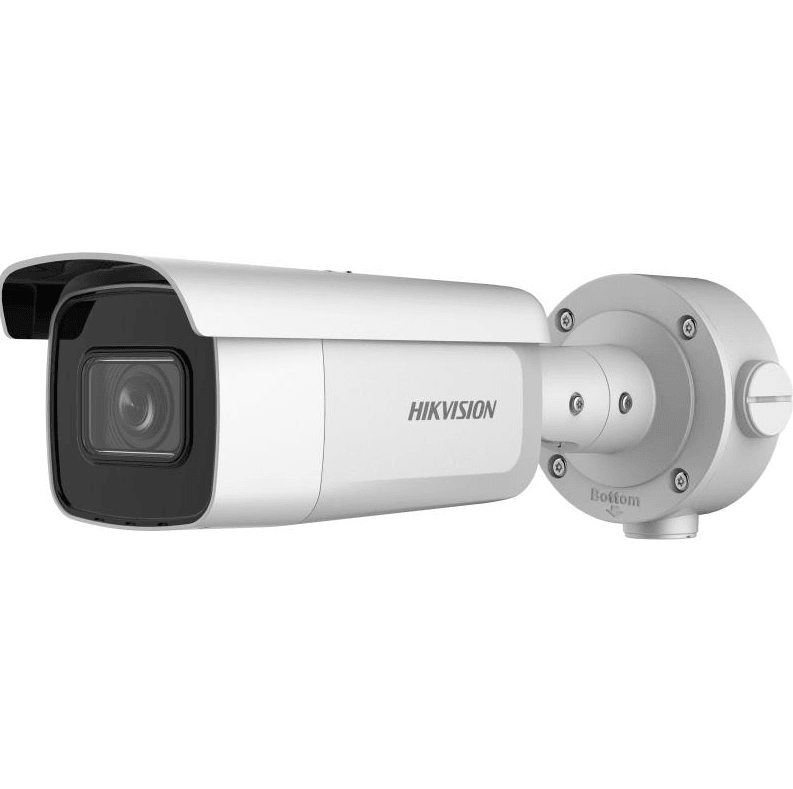

HIKVISION 2MP ACUSENSE VARIFOCAL BULLET CAMERA

Name: HIKVISION 2MP ACUSENSE VARIFOCAL BULLET CAMERA
Brand: HIKVISION
SKU: 11193
Price: 4370.0 ZAR
Availability: InStock

R 4,370.00

Quantity

history

Notify me

Guaranteed safe & secure checkout

HIKVISION 2MP ACUSENSE VARIFOCAL BULLET CAMERA

The HIKVISION 2MP ACUSENSE VARIFOCAL BULLET CAMERA utilizes powerful deep learning algorithms to enhance its AcuSense technology, delivering targeted alarms for both humans and vehicles to both front-end and back-end devices. With a specific focus on these crucial targets, this system significantly improves the efficiency and effectiveness of its alarms.

FEATURES:

High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
False alarm reduction through human and vehicle target classification based on deep learning
Water and dust resistant (IP67) and vandal-resistant (IK10)
Audio and alarm interface available
3D DNR technology delivers clean and sharp images
Motorized varifocal lens for easy installation and monitoring

SPECS:

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920x1080
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
Iris TypeAuto-iris
Lens Mount
2.7 to 13.5 mm: Ø14

7 to 35 mm: Integrated
Focal Length & FOV
2.7 to 13.5 mm: horizontal FOV 113° to 34°, vertical FOV 58° to 19°, diagonal FOV 138° to 39°

7 to 35 mm: horizontal FOV 30° to 11°, vertical FOV 17° to 6°, diagonal FOV 34° to 12°
Aperture
2.7 to 13.5 mm: F1.4

7 to 35 mm: F1.6

DORI
DORI
2.7 to 13.5 mm: D: 44 to 129 m, O: 17 to 51 m, R: 8 to 25 m, I: 4 to 13 m

7 to 35 mm: D: 137 to 400 m, O: 54 to 158 m, R: 27 to 80 m, I: 13 to 40 m

Illuminator
Supplement Light TypeIR
Supplement Light Range
2.7 to 13.5 mm: up to 60 m

7 to 35 mm: up to 80 m
IR Wavelength 850nm
Smart Supplement Light Yes

Video
Main Stream
50 Hz: up to 50 fps (1920 × 1080, 1280 × 720)

60 Hz: up to 60 fps (1920 × 1080, 1280 × 720)

*High frame rate is supported under certain settings.
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

*Fourth stream is supported under certain settings.
Video Bitrate 32 Kbps to 8 Mbps
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Fourth stream: H.265/H.264/MJPEG

*Third stream and fourth stream are supported under certain settings.
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)5 fixed regions for main stream and sub-stream

Audio
Environment Noise Filtering Yes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Day/Night SwitchDay, Night, Auto, Schedule
Target CroppingYes
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 512 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Power Output12 VDC, max. 100 mA (supported by all power supply types)

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function
Face CaptureYes

General
Power
12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug

PoE (802.3at, Class 4, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
MaterialAluminum alloy body
DimensionØ105 mm × 340.8 mm (Ø4.1" × 13.4")
Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
WeightApprox. 1335 g (2.9 lb.)
With Package WeightApprox. 2171 g (4.8 lb.)

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
