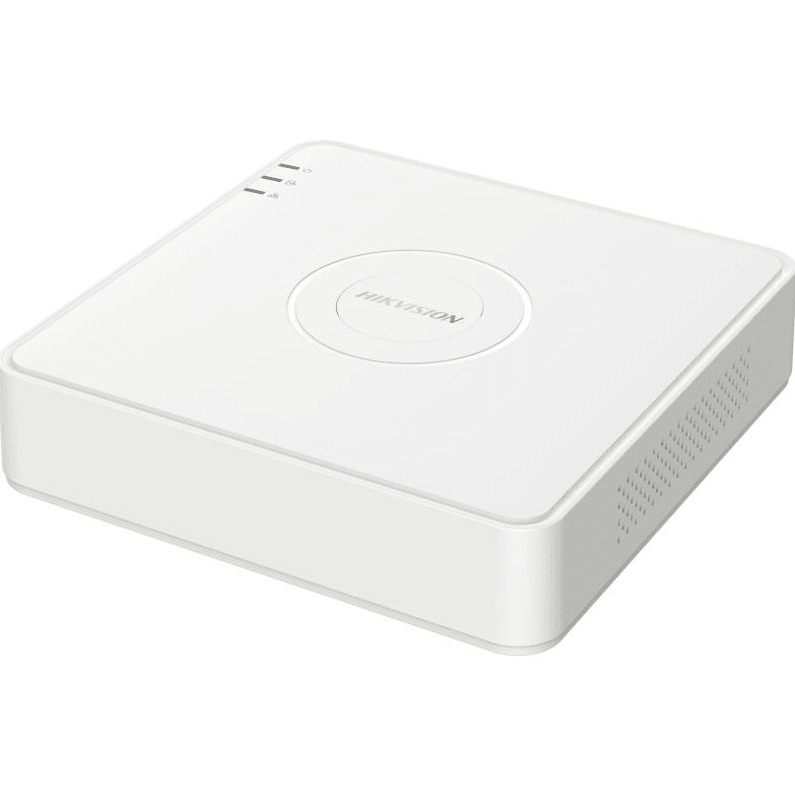

HIKVISION 2MP 4CH DVR iDS-7104HQHI-M1/S(C)
HIKVISION 2MP 4CH DVR iDS-7104HQHI-M1/S(C)
iDS-7104HQHI-M1/S(C)
Enhance your security with Smart Function and Deep Learning technology that classifies human and vehicle targets. Benefit from Motion Detection 2.0 and perimeter protection. Enable H.265 Pro+ for efficient encoding and save on data storage costs. Enjoy recordings at up to 3K/5 MP Lite resolution. With 1 SATA interface and smart search, playback is efficient. Connect to Ethernet or WIFI with ease using major dongle products and manage your network effortlessly with Hik-Connect & DDNS.
FEATURES:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 6-ch IP camera inputs (up to 6 MP)
- Encoding ability up to 3K/5M Lite @ 12 fps
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis Up to 2-ch
- Facial Detection
- Facial Detection And Capture Face picture detection, face picture search
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Mainstream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
1-ch (up to 5-ch)
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS Input Support
- HDMI Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- VGA Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
-
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback4-ch
- Network
- Total Bandwidth72 Mbps
- Remote Connection32
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Real panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 8 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- Weight≤ 1 kg (without HDD, 2.2 lb.)
