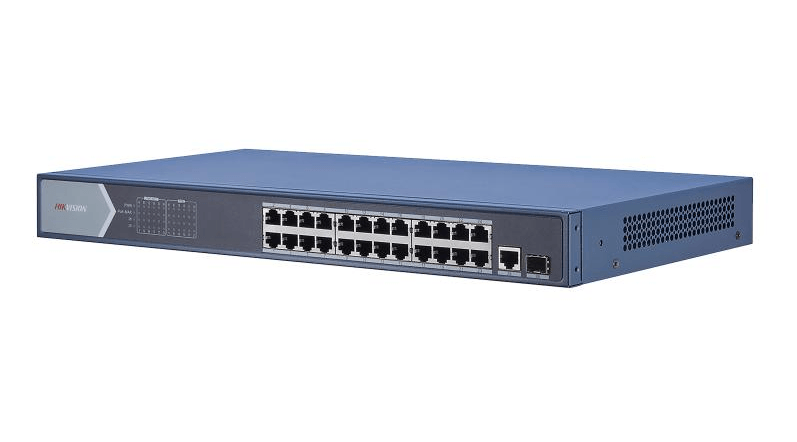

HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11168
HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH
The HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH is an advanced Layer 2 network switch specifically designed for the efficient transmission of video data. It features 24 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port, and 1 x 10/100/1000 Mbps uplink SFP port, all built to meet the IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards. With its high PoE power supply and 6 KV high surge protection, this switch boasts safe and reliable performance. Its store-and-forward switching technology and plug-and-play functionality ensure a user-friendly experience.
FEATURES:
- Layer 2 network switch designed for video data transmission
- 24 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience
SPECS:
- General
- ShellMetal material
- Net Weight2.88 kg (6.35 lb)
- Gross Weight3.74 kg (8.25 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
- Max. Power Consumption400 W
- Power Consumption In Idle30 W
- Installation ModeDesk-Mounted,Rack (equipped with mounting ears);
- Surge Protection6 KV
- Network Parameters
- Ports24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity52 Gbps
- Packet Forwarding Rate38.69 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH
The HIKVISION 24 PORT GIGABIT UNMANAGED POE SWITCH is an advanced Layer 2 network switch specifically designed for the efficient transmission of video data. It features 24 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port, and 1 x 10/100/1000 Mbps uplink SFP port, all built to meet the IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards. With its high PoE power supply and 6 KV high surge protection, this switch boasts safe and reliable performance. Its store-and-forward switching technology and plug-and-play functionality ensure a user-friendly experience.
FEATURES:
- Layer 2 network switch designed for video data transmission
- 24 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience
SPECS:
- General
- ShellMetal material
- Net Weight2.88 kg (6.35 lb)
- Gross Weight3.74 kg (8.25 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
- Max. Power Consumption400 W
- Power Consumption In Idle30 W
- Installation ModeDesk-Mounted,Rack (equipped with mounting ears);
- Surge Protection6 KV
- Network Parameters
- Ports24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity52 Gbps
- Packet Forwarding Rate38.69 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
