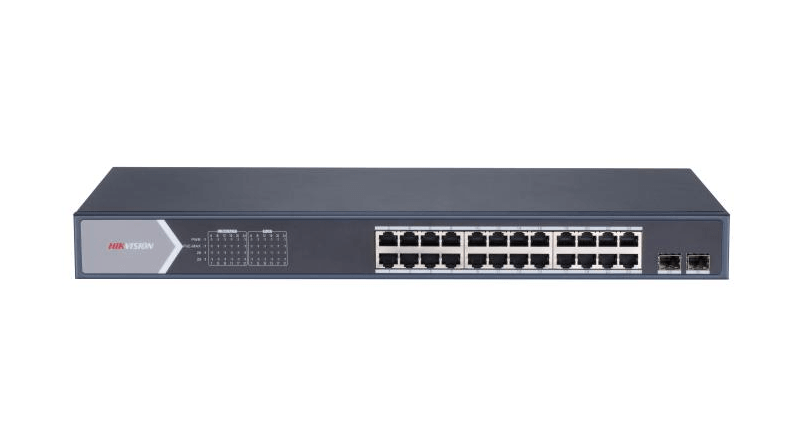

HIKVISION 24 PORT GIGABIT SMART POE SWITCH

The HIKVISION 24 PORT GIGABIT SMART POE SWITCH offers user-friendly management and maintenance. With our software platforms, you can easily deploy, monitor, and expand your security system from any location. Our network topology viewing, real-time monitoring, and device alarm notifications greatly lower network operation and maintenance costs.
FEATURES:
- 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.

-
IEEE 802.3at/af standard for PoE ports.

-
Network topology management, alarm push, network health monitor.

-
6 KV surge protection for PoE ports.

-
AF/AT camera can reach up to 300 m in extend mode.

-
PoE watchdog to auto detect and restart the cameras that do not respond.

-
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

SPECS:
- General

-
ShellMetal material

-
Net Weight 2.975 kg (6.56 lb)

-
Gross Weight 3.535 kg (7.79 lb)

-
Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')

-
Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)

-
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

-
Operating Humidity 5% to 95% (no condensation)

-
Relative Humidity 5% to 95% (no condensation)

-
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 6.3 A

- Max. Power Consumption 400w

-
Power Consumption In Idle 30 W

- Network Parameters

-
Ports24 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port

-
Port Type RJ45 port,full duplex,MDIMDI-X adaptive

- Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z

-
Forwarding Mode Store-and-forward switching

-
Working Mode Standard mode (default),Extend mode

-
MAC Address Table 8 K

-
Switching Capacity 52 Gbps

-
Packet Forwarding Rate 36.688 Mpps

-
Internal Cache4.1 Mbps

- PoE Power Supply

-
PoE Standard IEEE 802.3af,IEEE 802.3at

-
PoE Power PinEnd-span: 1/2(-), 3/6(+)

-
PoE Port PoE: Ports 1 to 24

- Max. Port Power 30w

-
PoE Power Budget 370 W

- Approval

-
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)

- Safety UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

- Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
