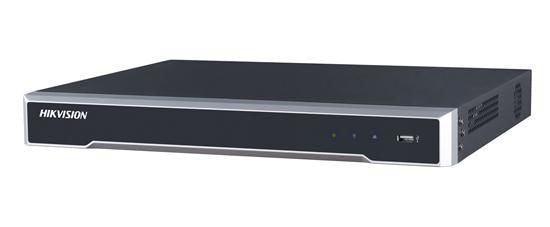

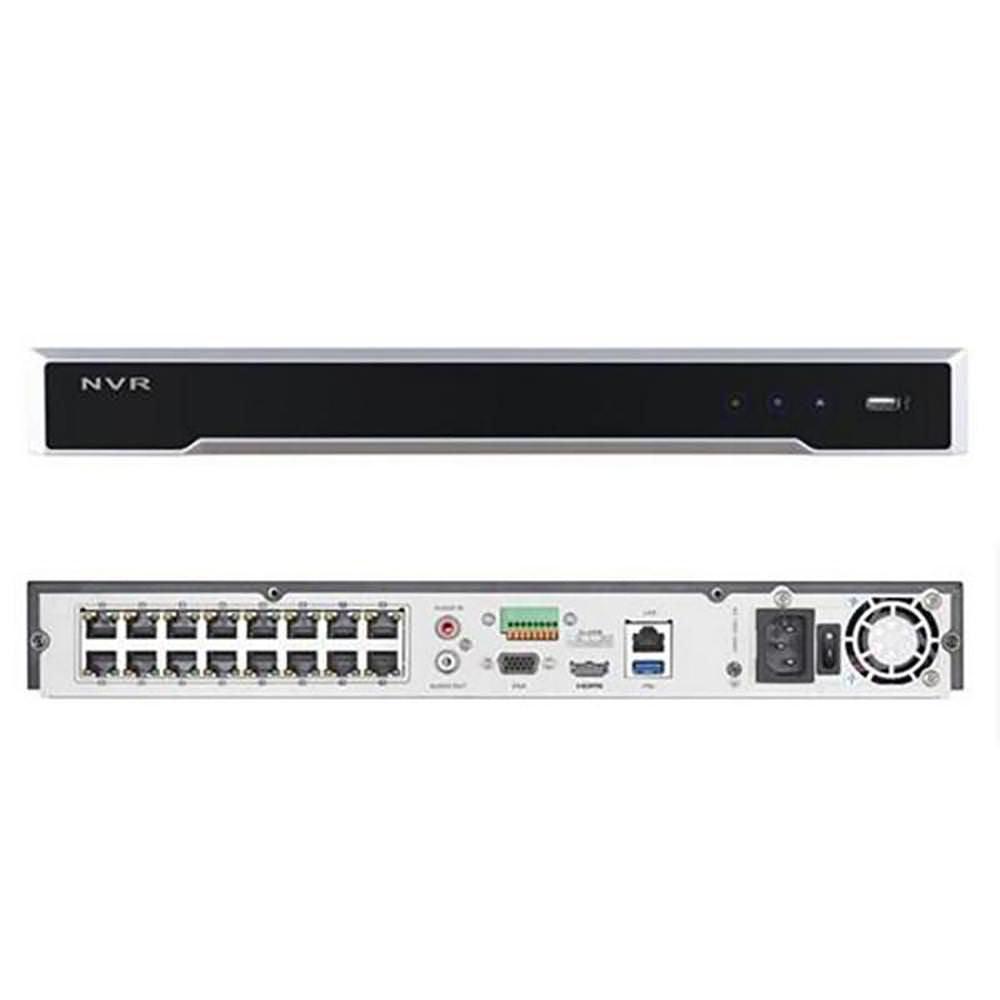

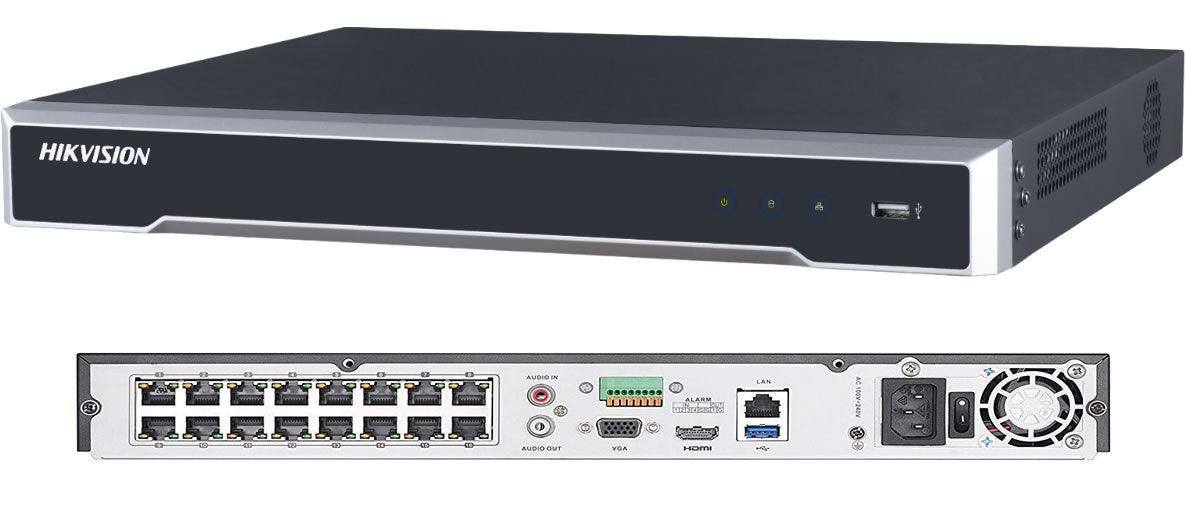

HIKVISION IP 16CH NVR 16POE 160MBPS
This NVR is equipped with the capability to connect up to 16 IP cameras and supports decoding various video formats such as H.265+/H.265/H.264+/H.264. With a high incoming bandwidth of up to 160 Mbps, this device ensures smooth and reliable connections for all your IP cameras.
It also supports up to 4K high-definition live view, storage, and playback, and has a decoding capacity of 8 channels at 1080p. Additionally, it features 1 HDMI and 1 VGA interfaces for independent video output, and 2 HDDs for continuous video recording. With 16 Power-over-Ethernet interfaces, this NVR offers a convenient plug & play experience.
FEATURES:
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8-ch @ 1080p decoding capacity
- Up to 160 Mbps, high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Video Parameter
Decoding Capability : 8*1080P
Video And Audio
-
IP Video Input : 16-ch
-
Incoming Bandwidth : 160 Mbps
-
Outgoing Bandwidth : 160 Mbps
-
HDMI Output : 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
-
VGA Output : 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
-
Video Output : ModeHDMI/VGA independent output
-
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
-
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
-
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
