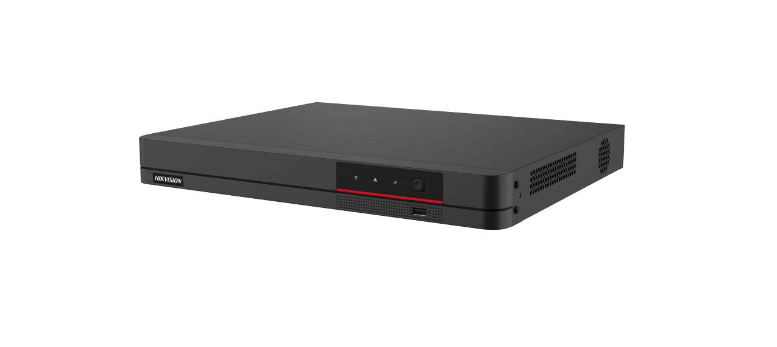

HIKVISION 16CH NVR - NON POE DS-7616NI-K2

16-ch 1U 16 POE 4G NVR

• Up to 16-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• Up to 160 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
• H.265+/H.265/H.264+/H.264 video compression
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• 4G wireless network

• Support network keep alive, data monitoring, used data real time display, data usage notification

Technical Specifications :

• Motion Detection 2.0
• Human/Vehicle Analysis4-ch

• Video And Audio
• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2

• Network
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 150 W
• StandardIEEE 802.3 af/at

• Wireless Parameter
• SIM/UIM Card Slot1 micro SIM card slot, on rear panel
• SMA Antenna Interface

  1 4G interface, antenna module cable length: 3 m

  1 ANT interface for GPS antenna (GPS antenna is optional)

• Wireless Standard

  GSM/EDGE: 850/900/1800MHz

  WCDMA: B1/B5/B8

  LTE-FDD: B1/B3/B5/B7/B8/B20/B28

  LTE-TDD: B38/B40/B41

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
• Weight≤ 3 kg (without HDD, 6.6 lb.)
