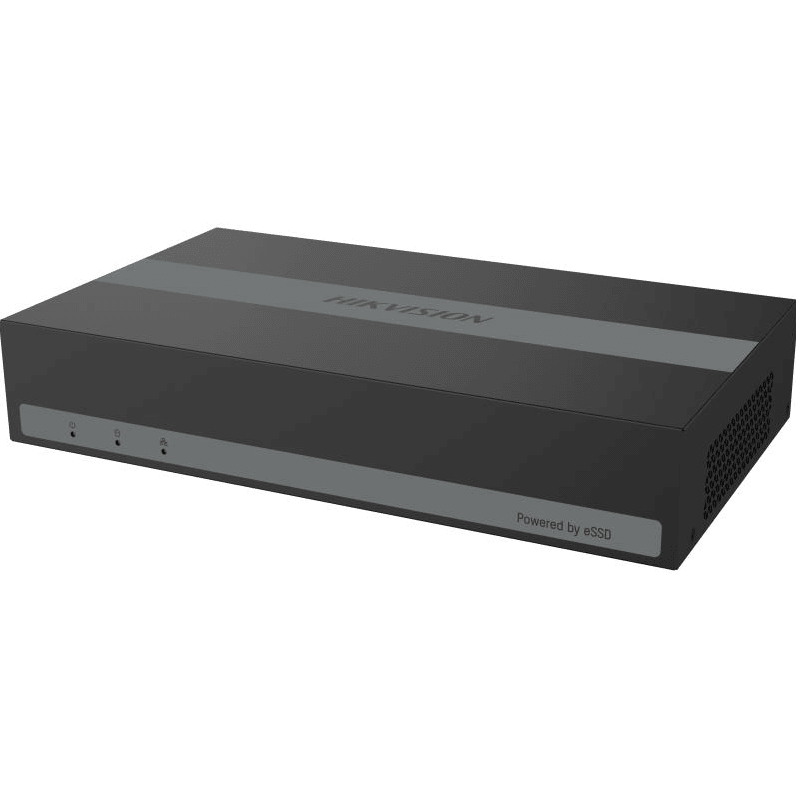

HIKVISION 16CH 1080P LITE 1U 1TB ESSD DVR
HIKVISION 16CH 1080P LITE 1U 1TB ESSD DVR
Effortlessly installed, the compact and lightweight HIKVISION 16CH 1080P LITE 1U 1TB ESSD DVR boasts a minimalist eSSD design that minimizes power consumption. Its integrated storage design also allows for plug-and-play use, while the anti-vibration design ensures reliable performance in any setting.
Plus, with advanced compression and recording capabilities, this DVR can accurately allocate videos to the eSSD based on the scene. Combined with smart functions like deep learning-based motion detection and efficient playback search, this device offers unmatched value for your security needs.
FEATURES:
- Powered by eSSD technology
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Scene-adaptive bitrate control video compression
- Up to 1080p Lite@15 fps encoding capability
- Low power consumption
- Audio via coaxial cable
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video CompressionH.265 Pro/H.265
- Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
-
Frame Rate
Main stream:
1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15 fps
- Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
-
Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
-
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input16-ch via coaxial cable
- Audio Output1-ch via HDMI
- Synchronous Playback16-ch
- Network
-
Total Bandwidth
96 Mbps
Incoming bandwidth: 8 Mbps
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Remote Connection128
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
-
Capacity
Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 2 weeks videos for 16-ch analog cameras (default parameters), this estimation is for reference only.
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1 A
- Consumption≤ 9.5 W (with eSSD)
- Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)
- Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
HIKVISION 16CH 1080P LITE 1U 1TB ESSD DVR
Effortlessly installed, the compact and lightweight HIKVISION 16CH 1080P LITE 1U 1TB ESSD DVR boasts a minimalist eSSD design that minimizes power consumption. Its integrated storage design also allows for plug-and-play use, while the anti-vibration design ensures reliable performance in any setting.
Plus, with advanced compression and recording capabilities, this DVR can accurately allocate videos to the eSSD based on the scene. Combined with smart functions like deep learning-based motion detection and efficient playback search, this device offers unmatched value for your security needs.
FEATURES:
- Powered by eSSD technology
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Scene-adaptive bitrate control video compression
- Up to 1080p Lite@15 fps encoding capability
- Low power consumption
- Audio via coaxial cable
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video CompressionH.265 Pro/H.265
- Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
-
Frame Rate
Main stream:
1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15 fps
- Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
-
Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
-
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input16-ch via coaxial cable
- Audio Output1-ch via HDMI
- Synchronous Playback16-ch
- Network
-
Total Bandwidth
96 Mbps
Incoming bandwidth: 8 Mbps
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Remote Connection128
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
-
Capacity
Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 2 weeks videos for 16-ch analog cameras (default parameters), this estimation is for reference only.
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1 A
- Consumption≤ 9.5 W (with eSSD)
- Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)
- Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
