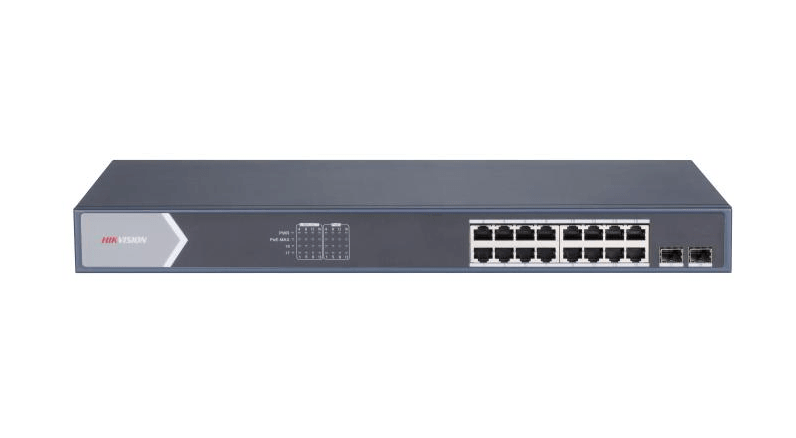

HIKVISION 16 PORT GIGABIT SMART POE SWITCH
HIKVISION's 16 PORT GIGABIT SMART POE SWITCH offers effortless management and maintenance with our user-friendly software platforms. Stay informed about your network's health and receive real-time device alarms, all while reducing network operation and maintenance costs. Deploy, monitor, and expand your security system seamlessly anytime and anywhere with ease.
FEATURES:
- 16 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
SPECS:
- General
- ShellMetal material
- Net Weight 2.735 kg (6.03 lb)
- Gross Weight 3.31 kg (7.30 lb)
- Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity 5% to 95% (no condensation)
- Relative Humidity 5% to 95% (no condensation)
- Power Supply 100-240 VAC, 50/60 Hz, Max. 4 A, 250 W
- Max. Power Consumption 250 W
- Power Consumption In Idle 25 W
- Network Parameters
- Ports16 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port
- Port Type RJ45 port,full duplex,MDI MDI-X adaptive
- Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- Working Mode Standard mode (default),Extend mode
- MAC Address Table8 K
- Switching Capacity36 Gbps
- Packet Forwarding Rate26.784 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE Standard IEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE Port Poe: Ports 1 to 16
- Max. Port Power 30w
- PoE Power Budget 225 W
- Software Function
- Device Maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
- Long Range Up to 300 m transmission
-
PoE Configuration
PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.
PoE enabling: supported
- Port Rate-Limiting Rate-limiting for ingress and egress ports
- Storm Control Storm control of unknown unicast, multicast, and broadcast
- Port Mirroring Supported
- Link Aggregation Support static link aggregation.
- Port Isolation Ports in an isolation group cannot communicate with each other.
- QoS WRR and SP scheduling and port priority
- VLAN4094 VLANs
- STPSTP and RSTP
- SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
- LLDPLLDP supported for port configuration, global configuration, and neighbor discovery
- DHCP Supported
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
