Description

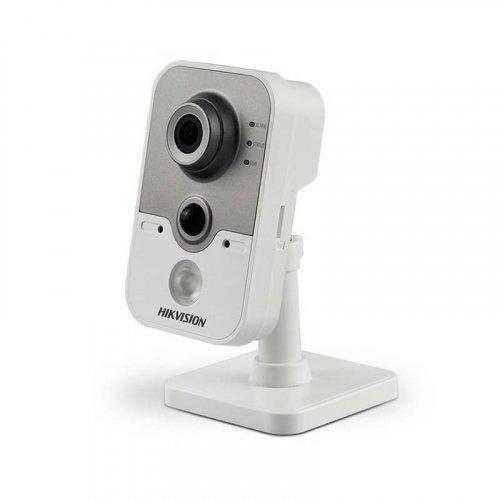

The HikVision DS-2CE38D8T-PIR video surveillance camera is designed for indoor monitoring and video control. It can be successfully used in warehouses and any commercial premises, industrial buildings, offices, private houses, hotels.

HikVision DS-2CE38D8T-PIR (2.8 mm) belongs to the type of analog video cameras and is distinguished by high picture quality, which is ensured by the presence of a camera with a resolution of 2 megapixels (1920x1080 pixels). The camera has infrared illumination and an ICR filter, which allows you to continue shooting in the dark. Records video at 25 frames per second and also has a built-in microphone for sound recording. Thanks to the PIR motion sensor and a wide viewing angle (103.5 degrees), the maximum coverage of the camera's recording area is achieved.

FEATURE LIST

2MP high performance

CMOS Ultra low light

Resolution 1920x1080

Fixed lens 2.8mm

PIR detection

WDR 120 dB, 3D DNR EXIR 2.0,

Smart IR IR illumination - 20 meters

Built-in microphone Подробнее:

Lens

Horizontal Field of View: 103.5(2.8 mm), 80.3(3.6 mm)

3D DNR (Digital Noise Reduction): Level 1 to 10
Backlight Compensation: WDR/BLC/OFF
D/N Mode: Auto/Color/BW (Black and White)
Auto White Balance: ATW/MANUAL
Private Mask: ON/OFF, 4 programmable privacy masks
Motion Detection: 4 programmable motion areas
AGC: Yes
Language: English/Chinese
Function: Brightness, Sharpness, Mirror, Smart IR

Interface

Audio In: Built-in microphone
Audio Out: 1 RCA
Video Out: 1 HD analog output

General

Material: Plastic
PIR Range: Angle: 110, Range:11 m
Operating Conditions: -40 C - 60 C (-40 F - 140 F) Humidity 90% or less (non-condensing)
Power Supply: 12 VDC 25%
Power Consumption: Max. 5 W
IR Range: Up to 20m
Communication: Up the coax,
Protocol: HIKVISION-C (TVI output)
Dimension: 104 mm 66 mm 41.07 mm (4.1" 2.6" 1.62")
Weight: Approx. 210 g (0.46 lb.)
