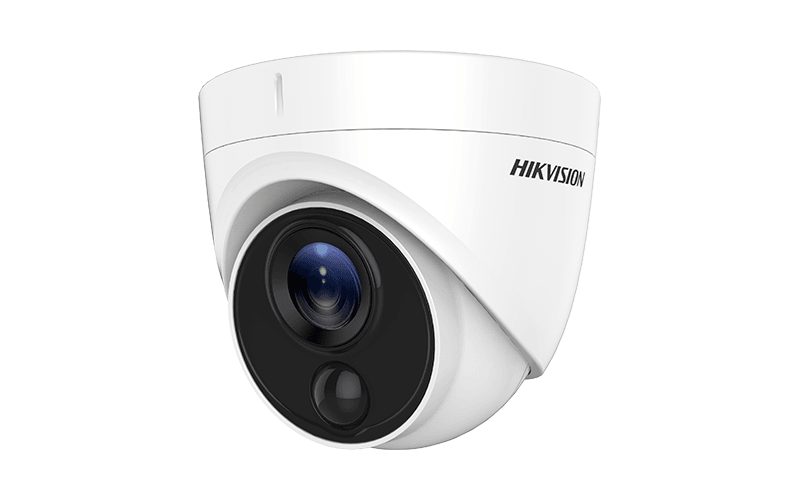

Camera Specifications
-
Image Sensor: 2.0-megapixel progressive scan CMOS
-
Signal System: PAL/NTSC
-
Frame Rate PAL: 1080p@25fps - NTSC: 1080p@30fps
-
Resolution: 1920 (H) � 1080 (V)
-
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time: PAL: 1/25 s to 1/50, 000 s - NTSC: 1/30 s to 1/50, 000 s
-
Slow Shutter: Max. 16 times
-
Lens: 2.8 mm, 3.6 mm fixed focal lens
-
Horizontal Field of View: 103.5�(2.8 mm), 82.6�(3.6 mm)
-
Lens Mount: M12
-
Visual Alarm: Yes
-
Day & Night: IR cut filter
-
Angle Adjustment Pan: 0�to 360�, Tilt: 0�to 75�, Rotate: 0�to 360�
-
Synchronization: Internal synchronization
-
WDR (Wide Dynamic Range): > 120 dB
Menu
-
White Light: Alarm/Off
-
AGC: Yes
-
Day/Night Mode: Auto/Color/BW (Black and White)
-
White Balance: ATW/MANUAL
-
Privacy Mask: ON/OFF, 4 programmable privacy masks Motion
-
Detection: 4 programmable motion areas
-
Backlight Compensation: WDR/BLC/OFF
-
3D DNR (Digital Noise Reduction): Level 1 to 10 Language: English,
-
Chinese Functions: Brightness, Sharpness, Mirror, Smart IR
Interface
-
Video Output: 1 HD analog output
Interface
-
Video Output: 1 HD analog output
General
-
Operating Conditions: -40 �C to 60 �C (-40 �F to 140 �F), humidity: 90% or less (non-condensation)
-
Power Supply: 12 VDC �25%
-
Power Consumption: Max. 4.5 W
-
Ingress Protection: IP67
-
Material Enclosure: Plastic
-
Main body: Metal
-
Mounting base: Plastic
-
IR Range: Up to 20 m
-
PIR Range Angle: 110�, Range:11 m
-
Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
-
Dimensions: � 109.8 mm � 89.75 mm (� 4.32" � 3.53" )
-
Weight: Approx. 310 g (0.68 lb.)
