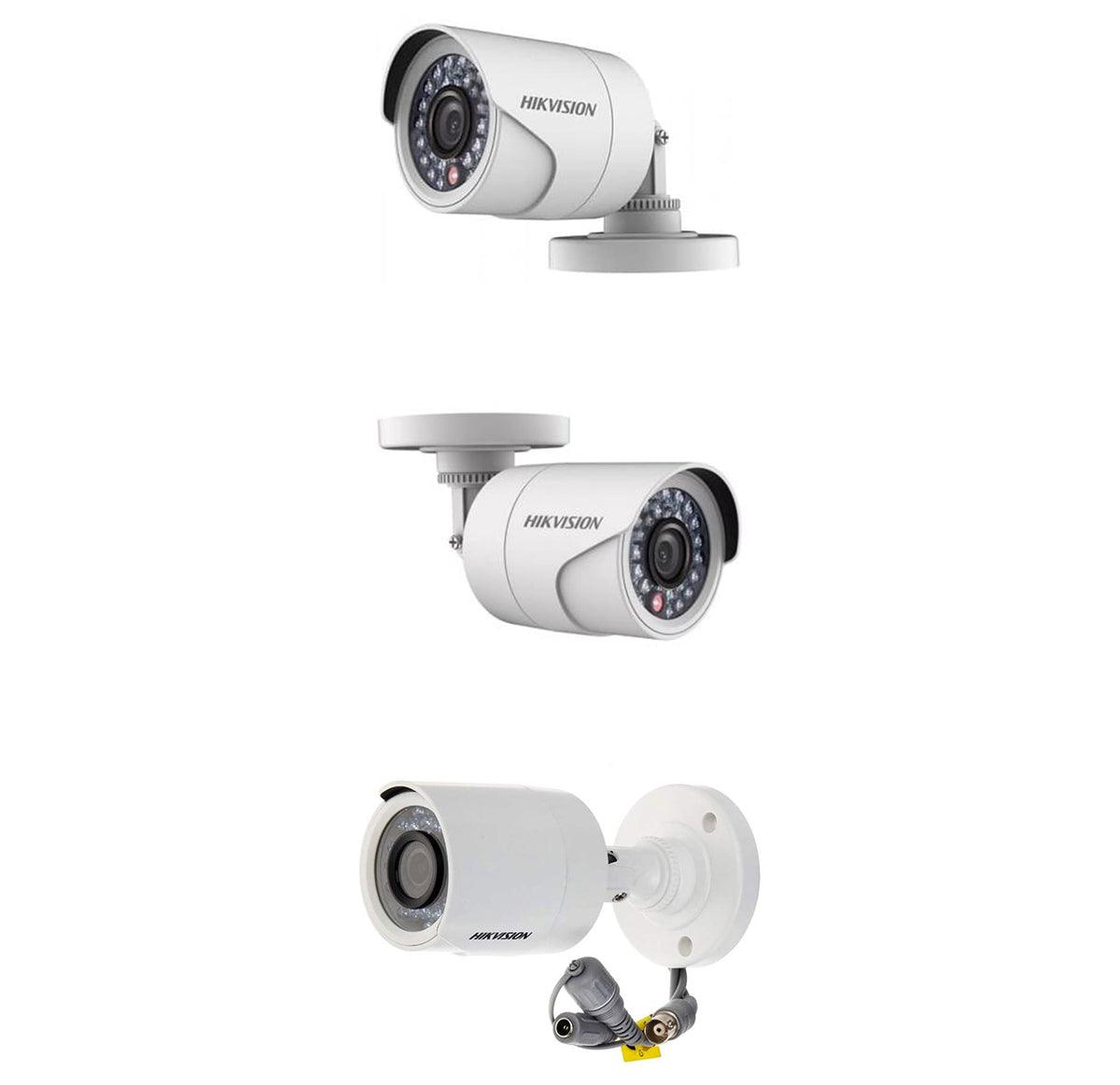

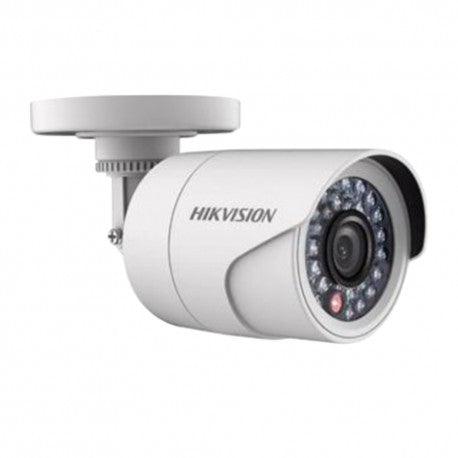

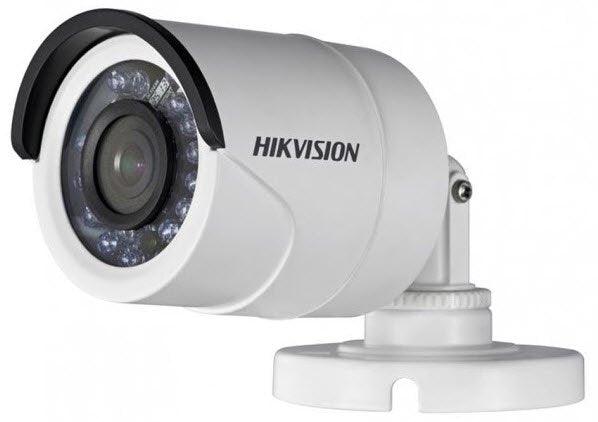

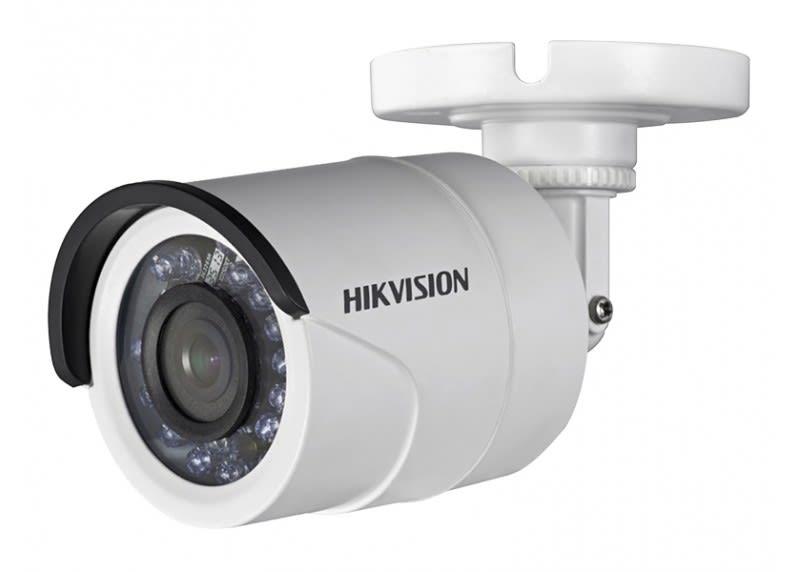

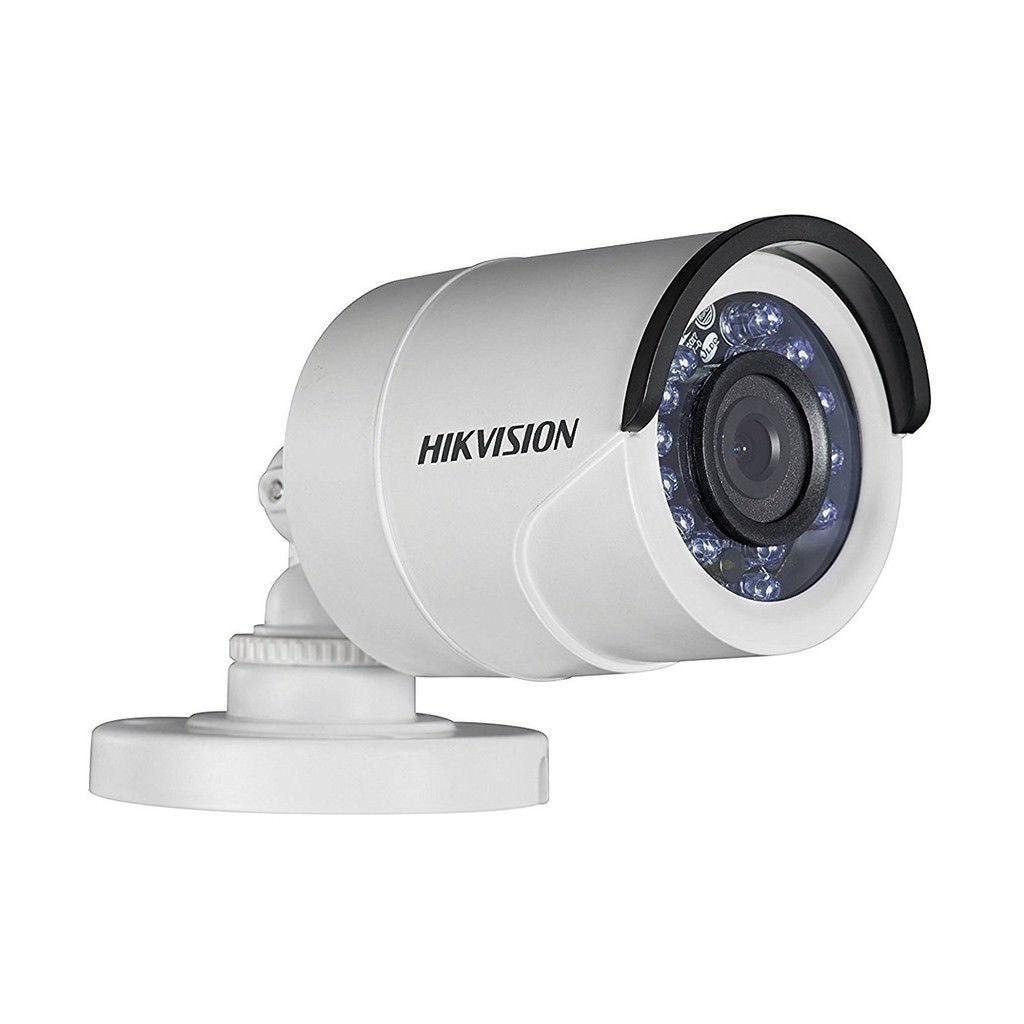

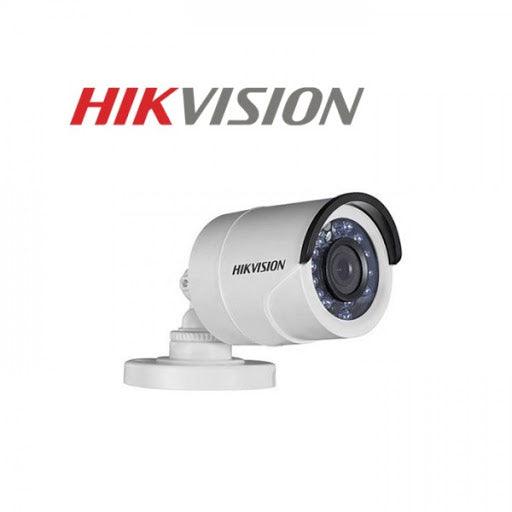

A 1080p 20m IR Bullet Camera with a 2 Megapixel high-performance CMOS. It boats a built in Analog HD output with up to 1080P resolution. This product supports True Day/Night with DNR and Smart IR. It can cover up to 20m IR distance.
Camera Type: IP66 weatherproof
Camera
-
Lens 2.8 mm fixed lens
-
Horizontal Field Of View103° (2.8 mm)
-
Lens MountM12
-
Day & NightIR cut filter
-
SynchronizationInternal synchronization
-
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
-
Image Sensor2MP CMOS Image Sensor
-
Signal SystemPAL/NTSC
-
Frame RatePAL: 1080p at25fps NTSC: 1080p@30fps
-
Resolution1920 (H) × 1080 (V)
-
Min. Illumination0.01 Lux (F1.2,AGC ON),0 Lux with IR
-
Shutter Time1/25 (1/30) s to 1/50,000 s
Menu
-
AGCLow/middle/high
-
Day/Night ModeSmart/color/BW(Black and White)
-
Backlight CompensationYes
-
DWDR (Digital Wide Dynamic Range)Yes
-
LanguageEnglish, Chinese
-
FunctionsBrightness, Sharpness, DNR, Mirror
Interface
-
Video Output1 HD analog output
-
Switch ButtonTVI/AHD/CVI/CVBS
General
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
-
Power Supply12 VDC±15%
-
Power ConsumptionMax. 4 W
-
MaterialPlastic
-
IR RangeUp to 20 m
-

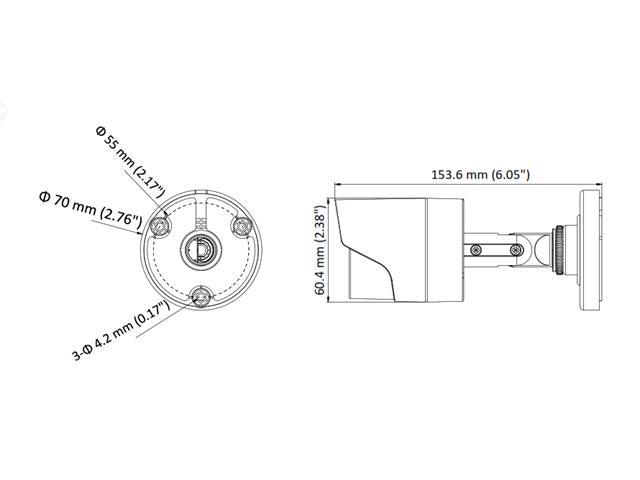

DimensionsΦ 70 mm × 154.5 mm
-
WeightApprox. 400 g
-
Ingress ProtectionIP66
