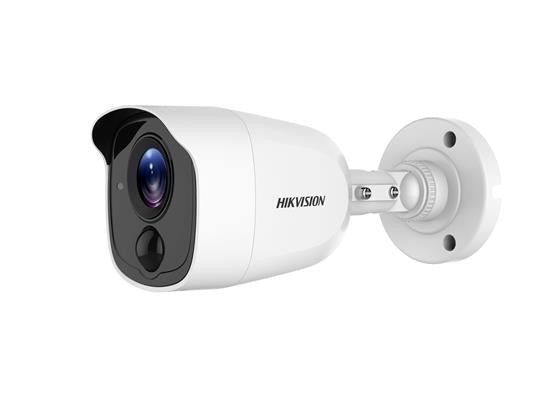

HIK 1080P BULLET DS-2CE11D8T- PIR 2.8MM

Camera Description

• Slow Shutter: Max. 16 times
• WDR (Wide Dynamic Range): > 120 dB
• Angle Adjustment: Pan: 0�to 360�, Tilt: 0�to 180�, Rotate: 0�to 360� Image Sensor: 2.0 megapixel progressive scan CMOS
• Signal System: PAL/NTSC
• Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time: PAL: 1/25 s to 1/50, 000 s
• NTSC: 1/30 s to 1/50, 000 s
• Lens: 2.8 mm, 3.6 mm fixed focal lens
• Lens Mount: M12
• Day& Night: IR cut filter
• Horizontal Resolution: 1920 (H) � 1080 (V)
• Video Frame Rate: PAL: 1080p@25fps
• NTSC: 1080p@30fps
• Synchronization:Internal Synchronization

�

Lens�

• Horizontal Field of View: 103.5�(2.8 mm), 80.3�(3.6 mm)

Menu

• 3D DNR (Digital Noise Reduction): Level 1 to 10
• Backlight Compensation: WDR/BLC/OFF
• White Light: Alarm/Off
• D/N Mode: Auto/Color/BW (Black and White)
• Auto White Balance: ATW/MANUAL
• Private Mask: ON/OFF, 4 programmable privacy masks
• AGC: Yes
• Language: English/Chinese
• Function: Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Out: 1 HD analog output

General

• Visual Alarm: Yes
• IR Range: Up to 20 m
• PIR Range: Angle: 110�, Range:11 m
• Material: Metal
• Ingress Protection: IP67
• Operating Conditions: -40 �C - 60 �C (-40 �F - 140 �F) Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC�25%
• Communication: Up the coax,
• Protocol: HIKVISION-C (TVI output)
• Dimension: 68 mm � 70 mm � 179.8 mm ( 2.68" � 2.76" � 7.08" )
• Weight: Approx. 345 g (0.76 lb.)
