HIK THERMAL/OPTICAL BI-SPECTRUM TURRENT CAMERA
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11167
HIK THERMAL/OPTICAL BI-SPECTRUM TURRENT CAMERA
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
HIK THERMAL/OPTICAL BI-SPECTRUM TURRENT CAMERA

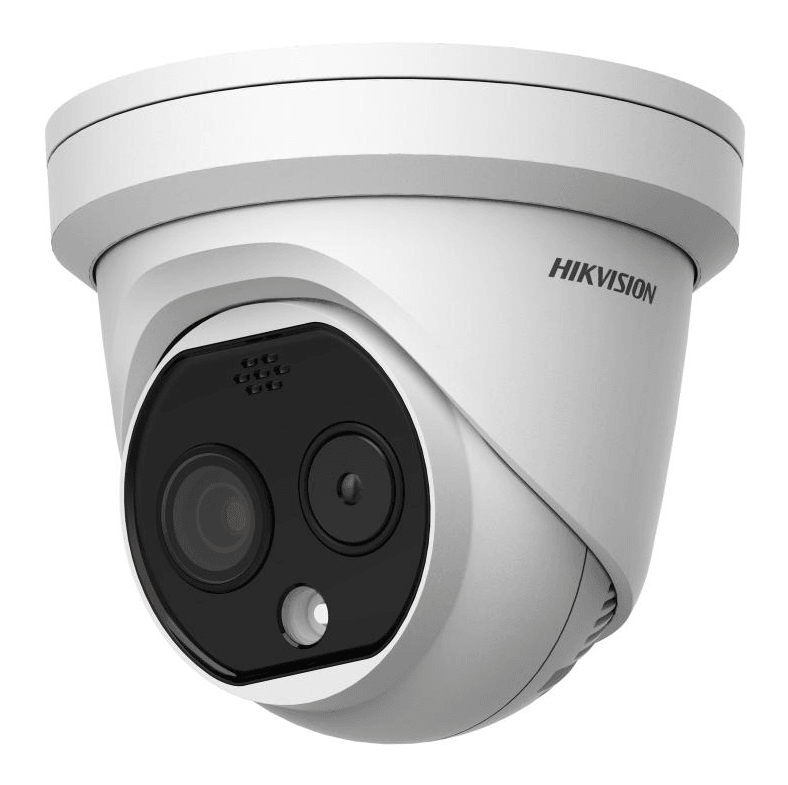

The Hikvision DS-2TD1217-3/QAThermal & Optical Bi-spectrum Network Turret Camera offers advanced video analysis for perimeter protection and temperature exception alarms, aiding in early fire prevention.
Through the use of a deep learning algorithm, this camera can achieve precise VCA detection and provide real-time alarms. It has a wide range of applications, including villas, communities, parking lots, warehouses, construction sites, waste incineration plants, and manufacturing workshops.
FEATURES:
- 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
- High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Support smoking detection algorithm
- Support sun-reflection filter
SPECS:
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 160x120
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (@ 25 °C, F# = 1.1)
- Focal Length 3.1 mm
- IFOV5.48 mrad
- Field Of View 50.0° × 37.2° (H × V)
- Min. Focusing Distance 0.2 m
- Aperture F1.1
- Digital Zoom× 2, × 4
- Optical Module
- Image Sensor 1/2.7" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination 0.0089 Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length 4 mm
- Field Of View 84.0° × 44.8° (H × V)
- Aperture (Range)F1.6
- WDR 120 dB
- Image Effect
- Target Coloration Yes. Supported in white hot and black hot mode.
- Illuminator
- IR Distance Up to 15 m
- IR Intensity And Angle Automatically adjusted
- Audible And Visual Alarm
- White Light Range Up to 30 m
- Visual Alarm Yes. White light alarm with adjustable flashing frequencies
-
Audio Alarm
Yes, for two types of audible alarm (VCA, Temperature)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (4 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range- 20 °C to 150 °C (- 4 °F to 302 °F)
- Temperature Accuracy± 8 °C (± 14.4 °F)
- General Function Fire detection, smoking detection, sun-reflection filter,
- Video And Audio
-
Mainstream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
-
Video Compression
Mainstream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio Compression G.722.1/G711ulaw/G711alaw/MP2L2/G.726/PCM
- Network
- Protocol IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
- Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live View Up to 20 channels
- User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input1, alarm input (0-5 VDC)
- Alarm Output1, alarm output (alarm response actions configurable)
- Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
-
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
-
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
-
Power Consumption
12 VDC ± 25%: 0.5 A, Max 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
-
Working Temperature/Humidity
Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F)
Humidity: 95% or less
-
Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85 ")
- Weight940 g (2.07 lb)
- Detection Range Table/Smart Function Range
- VCA Range For Humans15 m
- VCA Range For Vehicles45 m
HIK THERMAL/OPTICAL BI-SPECTRUM TURRENT CAMERA
The Hikvision DS-2TD1217-3/QAThermal & Optical Bi-spectrum Network Turret Camera offers advanced video analysis for perimeter protection and temperature exception alarms, aiding in early fire prevention.
Through the use of a deep learning algorithm, this camera can achieve precise VCA detection and provide real-time alarms. It has a wide range of applications, including villas, communities, parking lots, warehouses, construction sites, waste incineration plants, and manufacturing workshops.
FEATURES:
- 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
- High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Support smoking detection algorithm
- Support sun-reflection filter
SPECS:
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 160x120
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (@ 25 °C, F# = 1.1)
- Focal Length 3.1 mm
- IFOV5.48 mrad
- Field Of View 50.0° × 37.2° (H × V)
- Min. Focusing Distance 0.2 m
- Aperture F1.1
- Digital Zoom× 2, × 4
- Optical Module
- Image Sensor 1/2.7" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination 0.0089 Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length 4 mm
- Field Of View 84.0° × 44.8° (H × V)
- Aperture (Range)F1.6
- WDR 120 dB
- Image Effect
- Target Coloration Yes. Supported in white hot and black hot mode.
- Illuminator
- IR Distance Up to 15 m
- IR Intensity And Angle Automatically adjusted
- Audible And Visual Alarm
- White Light Range Up to 30 m
- Visual Alarm Yes. White light alarm with adjustable flashing frequencies
-
Audio Alarm
Yes, for two types of audible alarm (VCA, Temperature)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (4 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range- 20 °C to 150 °C (- 4 °F to 302 °F)
- Temperature Accuracy± 8 °C (± 14.4 °F)
- General Function Fire detection, smoking detection, sun-reflection filter,
- Video And Audio
-
Mainstream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
-
Video Compression
Mainstream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio Compression G.722.1/G711ulaw/G711alaw/MP2L2/G.726/PCM
- Network
- Protocol IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
- Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live View Up to 20 channels
- User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input1, alarm input (0-5 VDC)
- Alarm Output1, alarm output (alarm response actions configurable)
- Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
-
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
-
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
-
Power Consumption
12 VDC ± 25%: 0.5 A, Max 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
-
Working Temperature/Humidity
Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F)
Humidity: 95% or less
-
Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85 ")
- Weight940 g (2.07 lb)
- Detection Range Table/Smart Function Range
- VCA Range For Humans15 m
- VCA Range For Vehicles45 m
