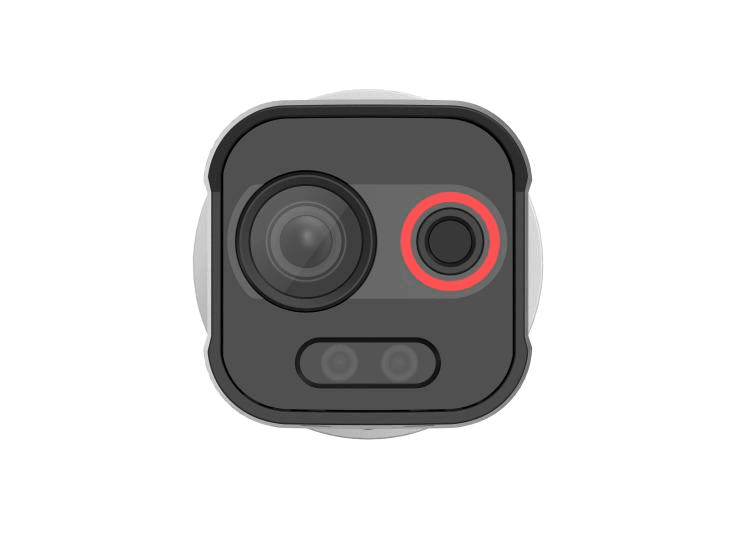

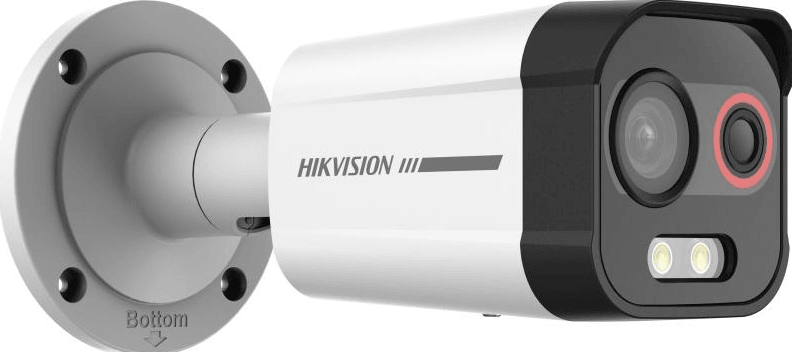

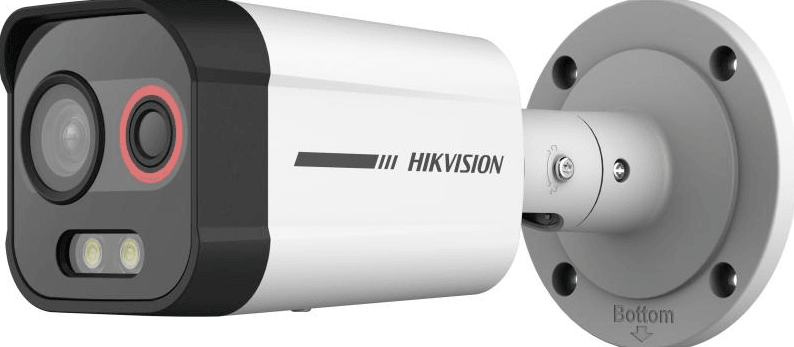

HIK THERMAL/OPTICAL BI-SPECTRUM BULLET CAMERA
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
HIK THERMAL/OPTICAL BI-SPECTRUM BULLET CAMERA
Discover the Hikvision DS-2TD2608-2/QA/FP Thermal & Optical Bi-spectrum Network Bullet Camera, the ultimate tool for fire prevention with its temperature exception alarm and built-in strobe light and audio warning. Experience the vivid and vibrant ColorVu technology that captures 24/7 colorful images. Perfect for all types of settings including villas, communities, parks, parking lots, warehouses, construction sites, and manufacturing workshops.
FEATURES:
- 96 × 72 resolution, 12 μm, VOx UFPA, NETD < 55 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 300°C (-4°F to 572°F)
- Support fire detection algorithm
- Support smoking detection algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
SPECS:
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 96 × 72
- Pixel Pitch 12 μm
- Spectral Range 8 μm to 14 μm
- NETD< 55 mK (25°C, F1.0)
- Focal Length 2.6 mm
- IFOV4.62mrad
- Field Of View 25.0° × 18.75° (H × V)
- Min. Focusing Distance 0.1 m
- Aperture F1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor 1/1.8" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0003 Lux @（F1.0，AGC ON）, 0 Lux with Light
- Shutter Speed 1 s to 1/100,000 s
- Focal Length 6 mm
- Field Of View 56.0° × 30° (H × V)
- Aperture (Range)F1.0
- WDR 120 dB
- Image Effect
- Target Coloration Yes. Supported in white hot and black hot mode.
- Illuminator
- Light Supplement Warm Light
- Light Supplement Distance 30m
- Audible And Visual Alarm
- White Light Range Up to 30 m
- Visual Alarm Yes. White light alarm with adjustable flashing frequencies
-
Audio Alarm
Yes
1 preset voice alerts
6 importable user-defined voice alerts
- Smart Functions
- Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 300°C (-4°F to 572°F)
-
Temperature Accuracy
Max (±4°C/7.2°F, ±4%), for ambient temperature 15°C to 35°C (59°F to 95°F)
Max (±8°C/14.4°F, ±8%)，for other ambient temperature
- Fire Detection Support
- Smoking Detection Support
- Video And Audio
-
Mainstream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
-
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live View Up to 20 channels
- User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm Action Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
-
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
-
Power Consumption
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
-
Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 95% or less
-
Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions211.5 mm × 105 mm × 105 mm (8.32" × 4.13" × 4.13")
- Weight869.2 g (1.92 lb)
