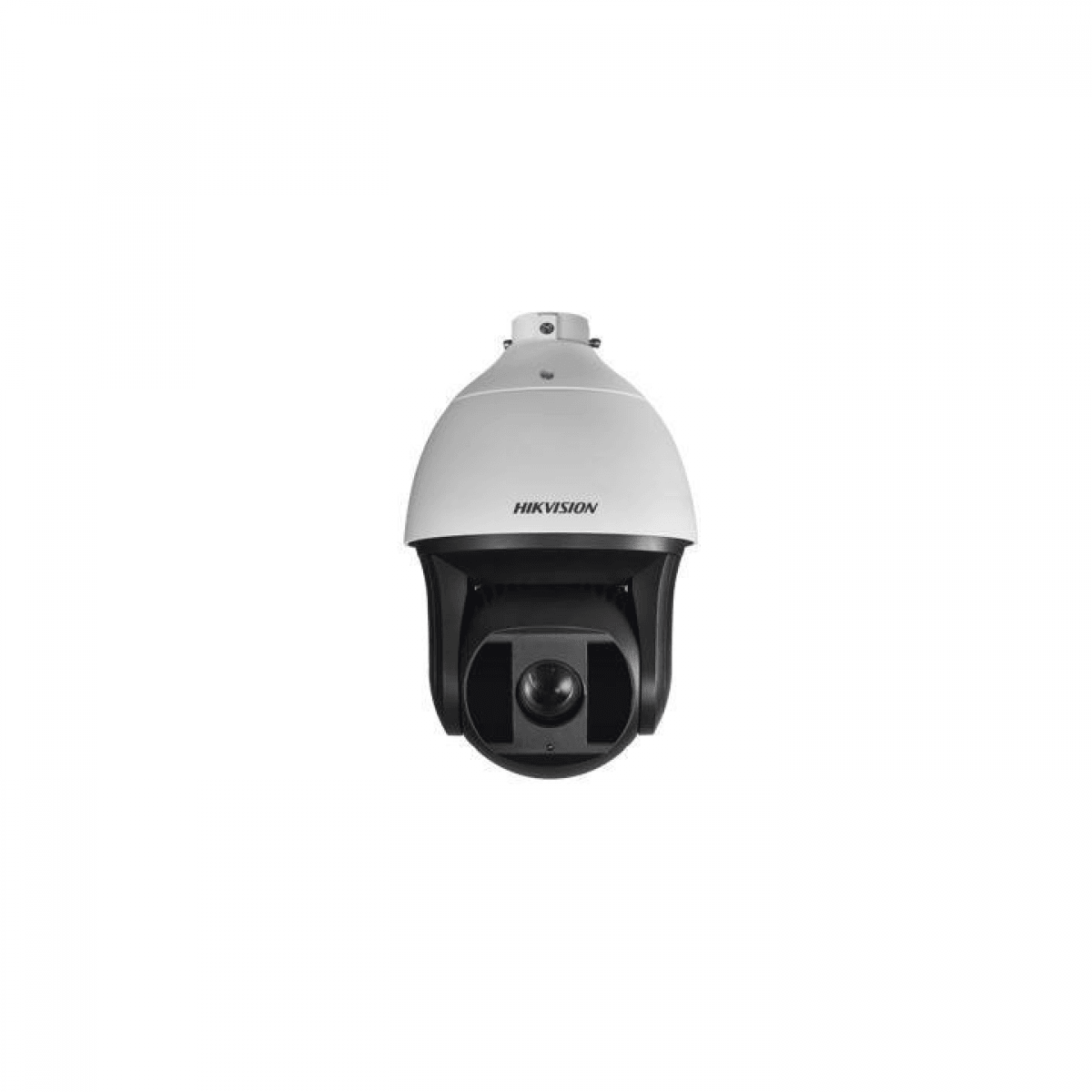

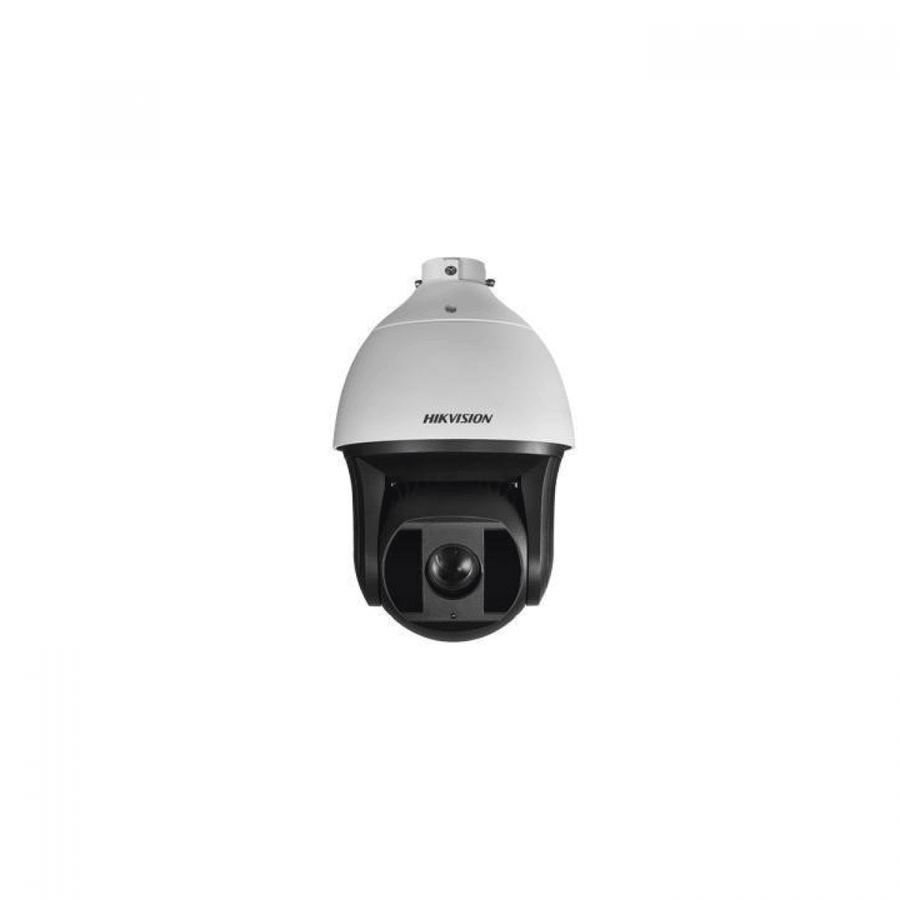

HIKVISION
SKU:BK0188
Couldn't load pickup availability
Recently viewed products
WE DELIVER ANYWHERE
2 - 3 WORKING DAY NATIONWIDE DELIVERY
GREAT PRICES
FOUND IT CHEAPER? LET US KNOW
FIVE STAR SERVICE
OUR SUPPORT TEAM IS ONLY A CLICK AWAY
FLEXIBLE PAYMENT OPTIONS
MULTIPLE PAYMENT OPTIONS
Camera ModuleImage Sensor: 1/1.9" progressive scan CMOSMin. Illumination:Color: 0.002 Lux @(F1.5, AGC ON)B/W: 0.0002 Lux @(F1.5, AGC ON)0 Lux with IRShutter Time: 1/1 s to 1/30,000 sWhite Balance:�Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/FluorescentLamp/Sodium LampAGC: Auto/ManualDay & Night: IR cut filterDigital Zoom: 16�Privacy Mask: 24 programmable polygon privacy masksFocus Mode: Auto/Semi-automatic/Manual3D DNR: SupportBLC: SupportHLC: SupportWDR: 120dBOptical Defog: SupportEIS: SupportRegional Exposure: SupportRegional Focus: SupportRapid Focus SupportLensFocal Length: 5.7 mm to 142.5 mm, 25� OpticalZoom Speed: Approx. 3.7 s (optical lens, wide-tele)Field of View:Horizontal field of view: 59.8� to 2.8� (wide-tele)Vertical field of view: 33.6� to 1.6� (wide-tele)Diagonal field of view: 68.6� to 3.2� (wide-tele)Working Distance: 10 mm to 1500 mm (wide-tele)Aperture Range: F1.5 to F3.4PTZMovement Range (Pan): 360� endlessPan Speed: Configurable, from 0.1�/s to 210�/s, Preset Speed: 280�/sMovement Range (Tilt): From -20� to 90�Tilt Speed: Configurable, from 0.1�/s to 150�/s, Preset Speed: 250�/sProportional Zoom: SupportPresets: 300Patrol Scan: 8 patrols, up to 32 presets for each patrolPattern Scan: 4 pattern scans, record time over 10 minutes for each scanPower-off Memory: SupportPark Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama ScanPTZ Status Display: SupportPreset Freezing: SupportScheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux OutputSmart FeaturesPerimeter Protection:Intrusion, Line Crossing, Region Entrance, Region ExitingSupport alarm triggering by specified target types (human and vehicle)Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.Event Detection: Face Detection, Audio Exception DetectionSmart Tracking: Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event TrackingSmart Record: ANR (Automatic Network Replenishment), Dual-VCAROI: SupportIRIR Distance: 200 mSmart IR: SupportNetworkMax. Resolution: 1920 � 1080Main Stream:50Hz: 25fps (1920 � 1080, 1280 � 960, 1280 � 720)50fps (1920 � 1080, 1280 � 960, 1280 � 720)60Hz: 30fps (1920 � 1080, 1280 � 960, 1280 � 720)60fps (1920 � 1080, 1280 � 960, 1280 � 720)Sub-Stream:50Hz: 25fps (704 � 576, 640 � 480, 352 � 288)60Hz: 30fps (704 � 480, 640 � 480, 352 � 240)Third Stream:50Hz: 25fps (1920 � 1080, 1280 � 960, 1280 � 720, 704 � 576, 640 � 480, 352 � 288)60Hz: 30fps (1920 � 1080, 1280 � 960, 1280 � 720, 704 � 480, 640 � 480, 352 � 240)ROI: SupportSVC: SupportVideo Compression:Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEGH.264 with Baseline/Main/High ProfileAudio compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCMProtocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, DHCP, PPPoE, BonjourSimultaneous Live View: Up to 20 channelsUser/Host:�Up to 32 users3 levels: Administrator, Operator and UserSecurity Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filteringSystem IntegrationAlarm Interface: 7-ch alarm input/2-ch alarm outputAudio Interface: 1-ch audio input (applicable microphone, plug-in power type), 2 to 2.4 V[p-p], 1 K? � 10%1-ch audio output, line level, impedance: 600 ?Alarm Linkage:Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, SendEmail, etc.Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoECVBS: SupportRS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptiveStorage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR�API: Open-ended, support ONVIF, and CGI, support HIKVISION SDK and Third-PartyManagement PlatformClient: iVMS-4200, iVMS-4500, iVMS-5200, Hik-ConnectWeb Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51GeneralPower:24 VAC (Max. 60 W)Hi-PoE (Max. 50 W)Working Temperature: Outdoor: -40�C to 70�C (-40�F to 158�F)Working Humidity: ? 90%Protection Level: IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient ProtectionDimensions: ? 266.6 mm � 410 mm (?10.50" � 16.14")Weight: Approx. 8 kg (17.64 lb)
�
INCLUDES: 2 YEAR WARRANTY�
