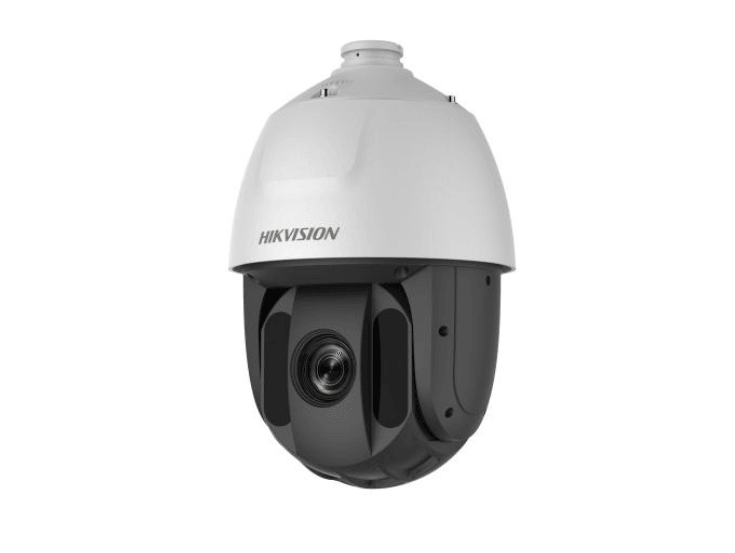

2 MP 25X PTZ Network Speed Dome
Hikvision DS-2DE5225IW-AE Network IR Speed Dome Cameras produce images with a resolution of up to 1920 x 1080 pixels. The embedded 1/2.8" progressive scan CMOS chip supports 120 dB WDR, and the 25x optical zoom allows for greater detail to be collected over more expansive areas.
FEATURES :
- 1/2.8" Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- 24 VAC & PoE (802.3at)
- Efficient H.265+/H.265 compression technology
- Water and dust resistant (IP66) and vandal resistant (IK10)
TECHNICAL SPECIFICATION :
Camera
Image Sensor : 1/2.8″ Progressive Scan CMOS
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON) : Shutter Speed
1 s to 1/30,000 s
Slow Shutter : Yes
Day & Night : IR cut filter
Zoom : 25x optional, 16x digital
Max. Resolution : 1920 × 1080
Lens
Focus : Auto, semi-auto, manual
Focal Length : 4.8 mm to 120 mm
Zoom Speed : Approx. 3.6 s
FOV : Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture : Max. F1.6
PTZ
Movement Range (Pan) : 360°
Movement Range (Tilt) : -5° to 90° (auto flip)
Pan Speed : Pan speed : configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed : Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan : Yes
Presets : 300
Patrol Scan : 8 patrols, up to 32 presets for each patrol
Pattern Scan : 4 pattern scans
Power-Off Memory : yes
Park Action : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning : yes
PTZ Status Display : yes
Preset Freezing : yes
Scheduled Task : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression : Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline profile/Main profile/High profile
H.265 Type : Main profile
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region Of Interest (ROI) : 8 fixed regions for each stream
Network
Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API : Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live View : Up to 20 channels
User/Host : Up to 32 users; 3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Client : iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser : IE11, Chrome57+, Firefox52+, Safari11
Day/Night Switch : Day, Night, Auto, Schedule
Image Enhancement : BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) : 120 dB
Defog : Digital Defog
Regional Exposure : Yes
Regional Focus : Yes
Image Settings : Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch : Yes
Privacy Mask : 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR : ＞52 dB
Interface
Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm : 2 inputs, 1 output
Audio : 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset : Yes
Event
Basic Event : Motion detection, video tampering alarm, exception, alarm input and output
Smart Event : line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture : Yes
General
Operating Condition : -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power : 24 VAC, Max. 20 W; PoE (802.3at)
Material : Metal
Dimension : Ø 220 mm × 280 mm (Ø 8.66" × 11.02")
Approx. 3.0 kg (6.61 lb.)
