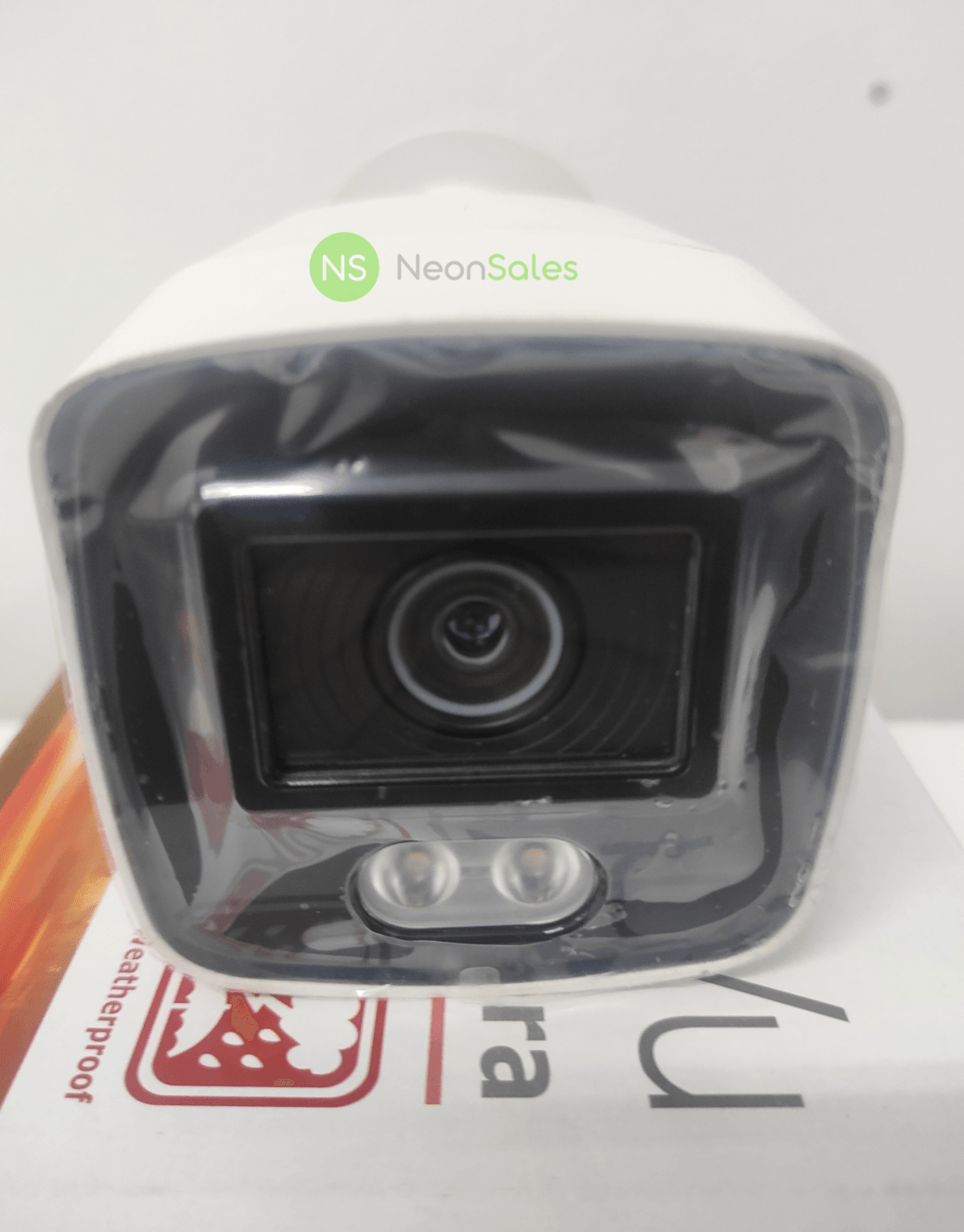

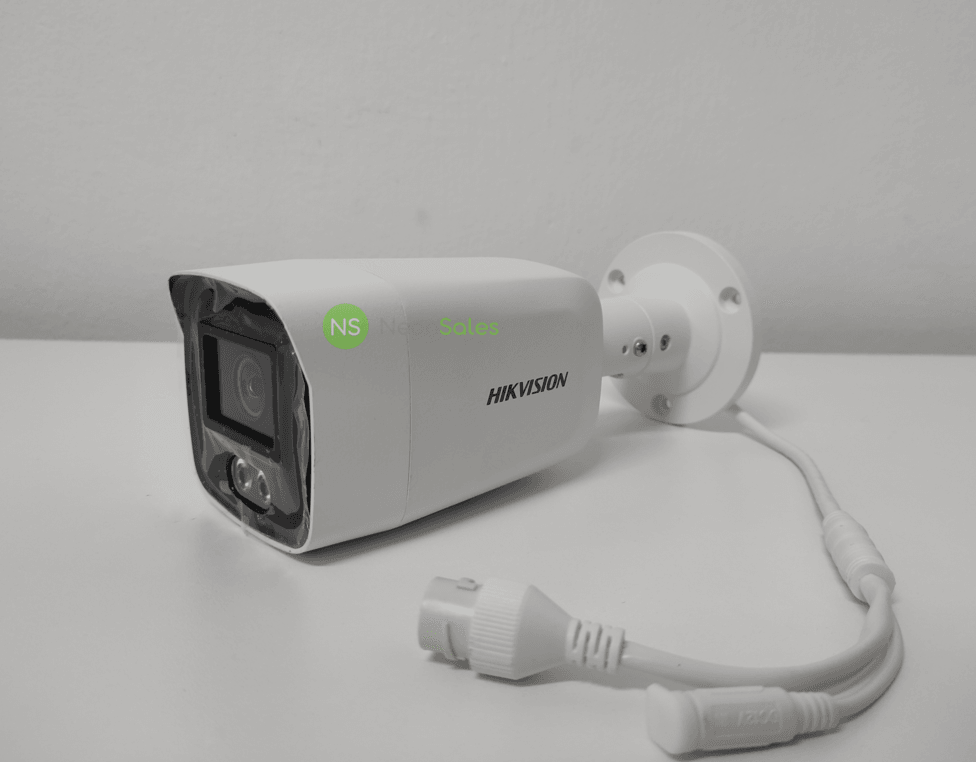

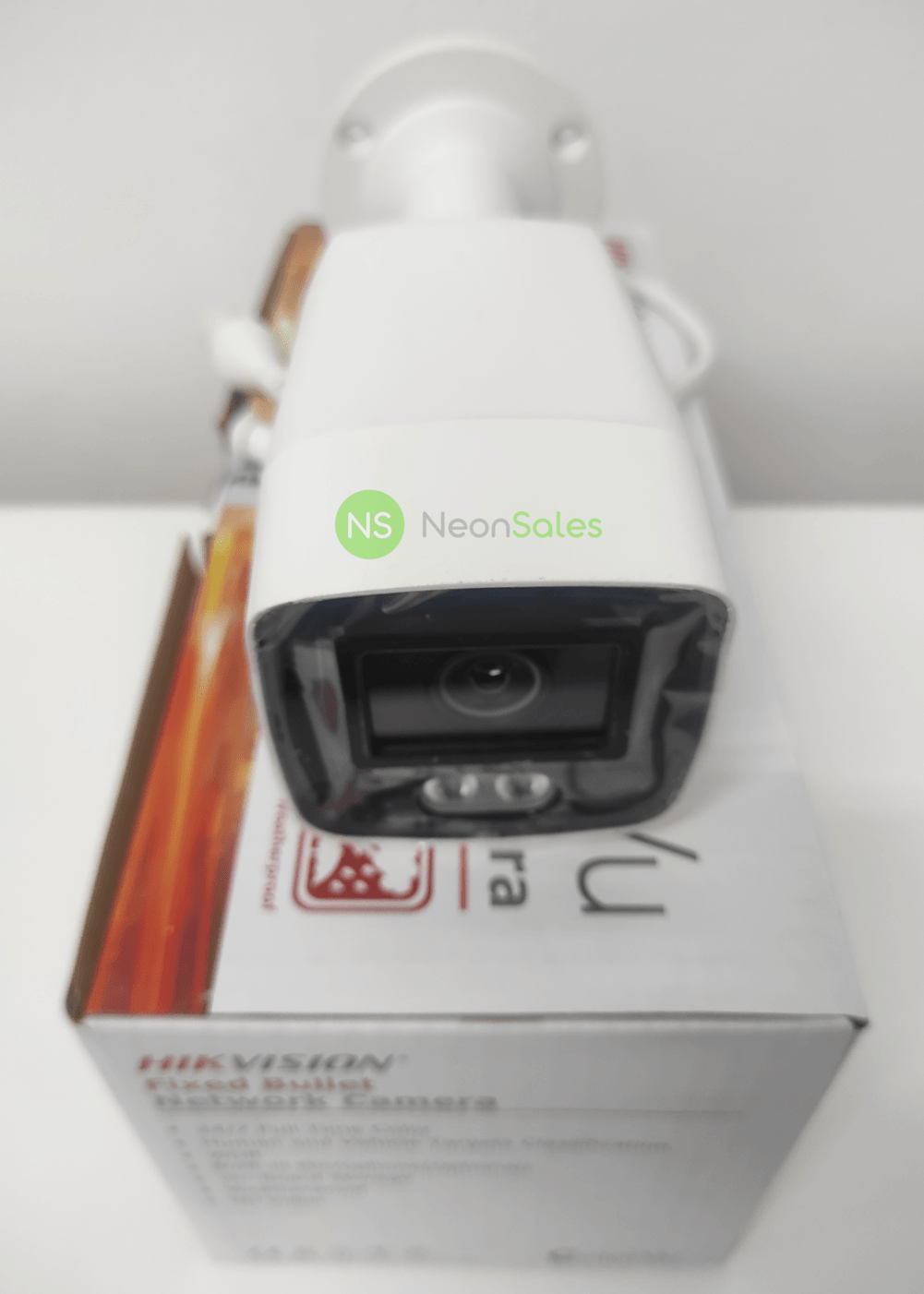

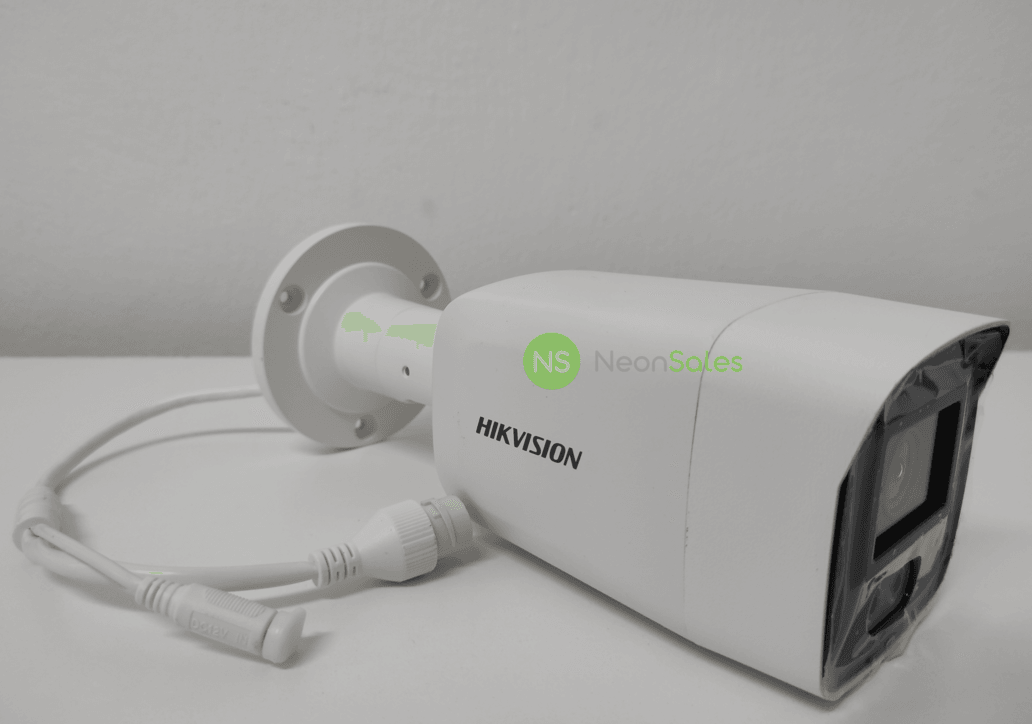

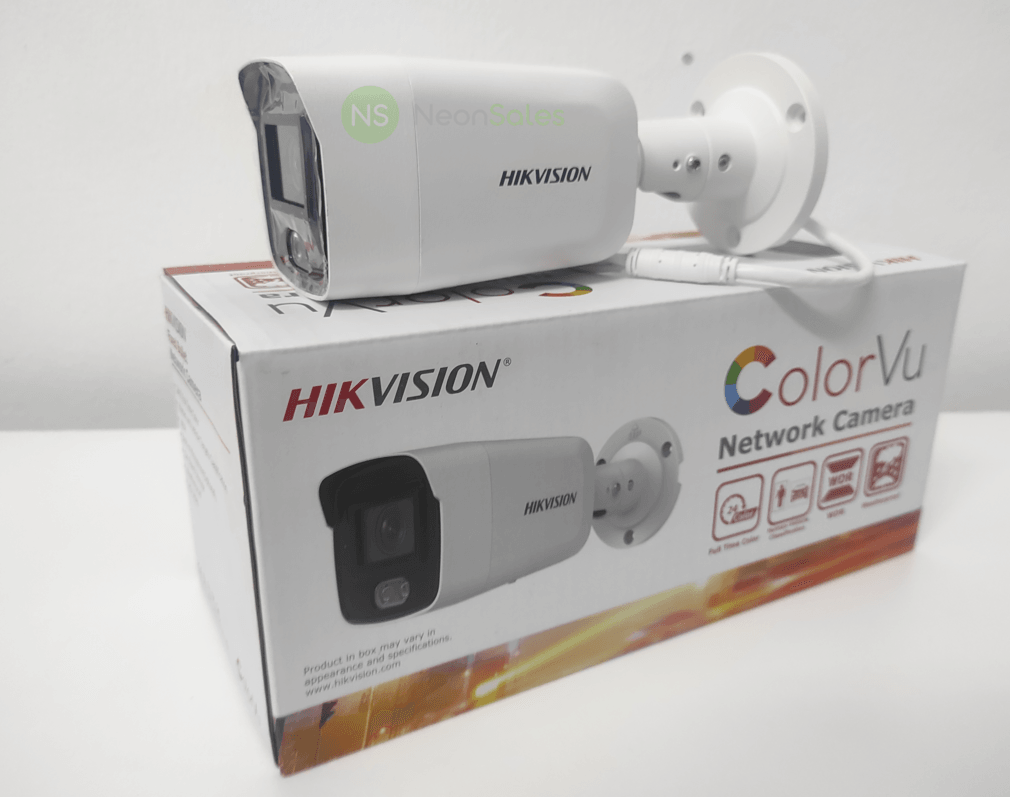

This is a very high quality camera by Hikvision, Please Note that this camera is an IP camera and will work on an NVR system. The qualities of this camera are firstly, it offer you ColorVu, Hikvision have implemented a camera that can give you colour during the day and at night when you need it the most even when it is completely dark.
With a 4MP at 2K (1440p) Resolution you will be assured to get the crisp and clear picture this camera produces
Wide Dynamic Range (WDR) technology improves the camera's image quality under high-contrast lighting conditions where both dimly and brightly lit areas are present in the field of view. It enables the camera to capture details clearly in both the poorly and strongly illuminated areas of the video.
Human-Vehicle Detection has been a game changer with identification of humans and vehicles makes it easier for you to go directly to the footage rather than being false alarmed with other cameras which triggers during bad weather, falling leaves or wildlife. This camera provides smart deep learning of human and vehicle targets.
An IP67 rating which means that you will not have to worry about the harsh weather conditions as its Water and Dust Resistant.
Technical Specifications :
Camera
Image Sensor : 1/1.8" Progressive Scan CMOS
Max. Resolution : 2688 × 1520
Min. Illumination : Color : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time : 1/3 s to 1/100,000 s

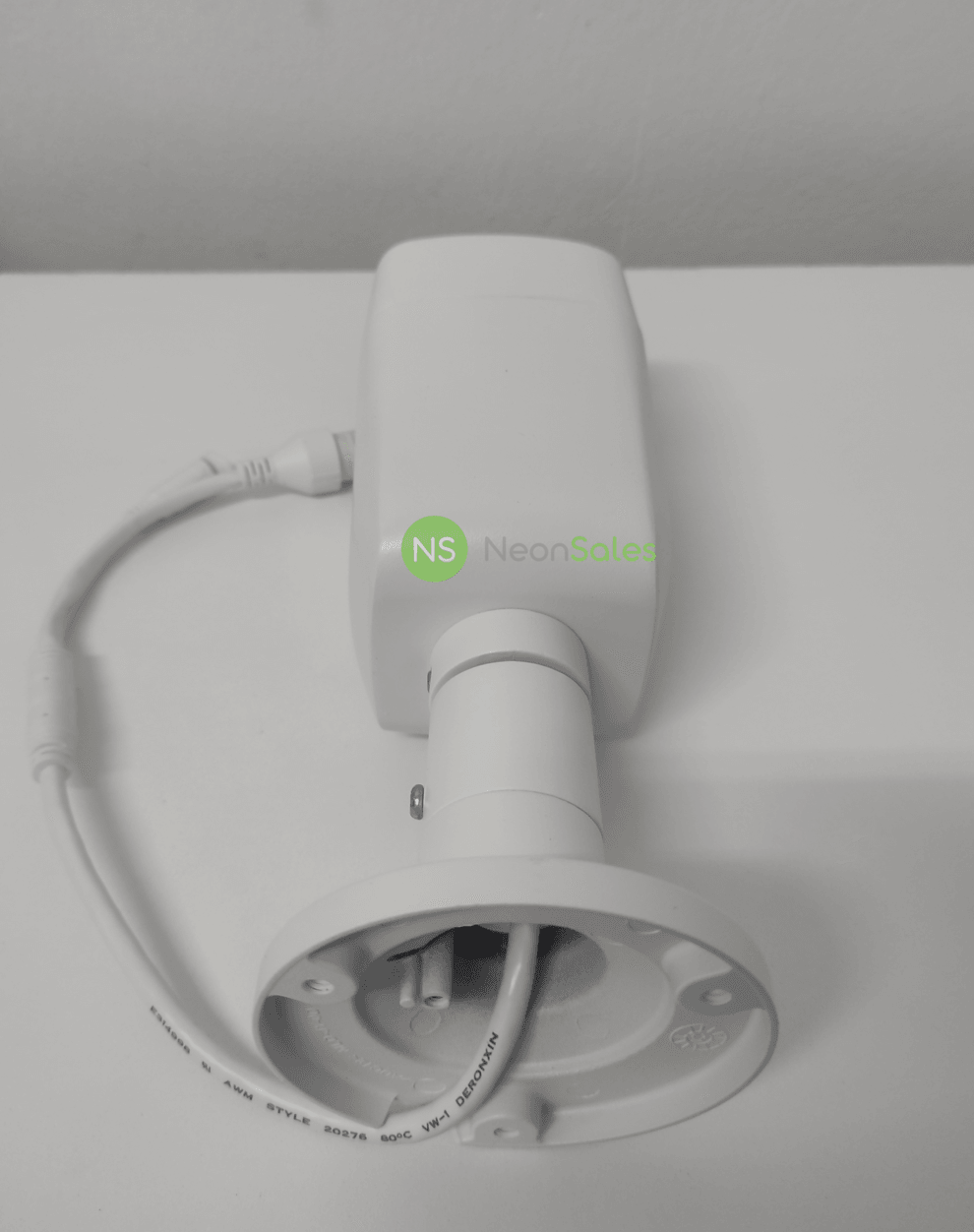

Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type : Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens Mount : M16
Iris Type : Fixed
Aperture F1.0
Depth Of Field : 2.8 mm, 2.5 m to ∞
4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞
Illuminator
Supplement Light Type : White Light
Supplement Light Range : 40 m
Smart Supplement Light : Yes
Video
Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression : Main stream: H.265/H.264/H.265+/H.264+
Sub-stream : H.265/H.264/MJPEG
Third stream : H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR/VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region Of Interest (ROI) : 1 fixed region for main stream and sub-stream
Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK : User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage

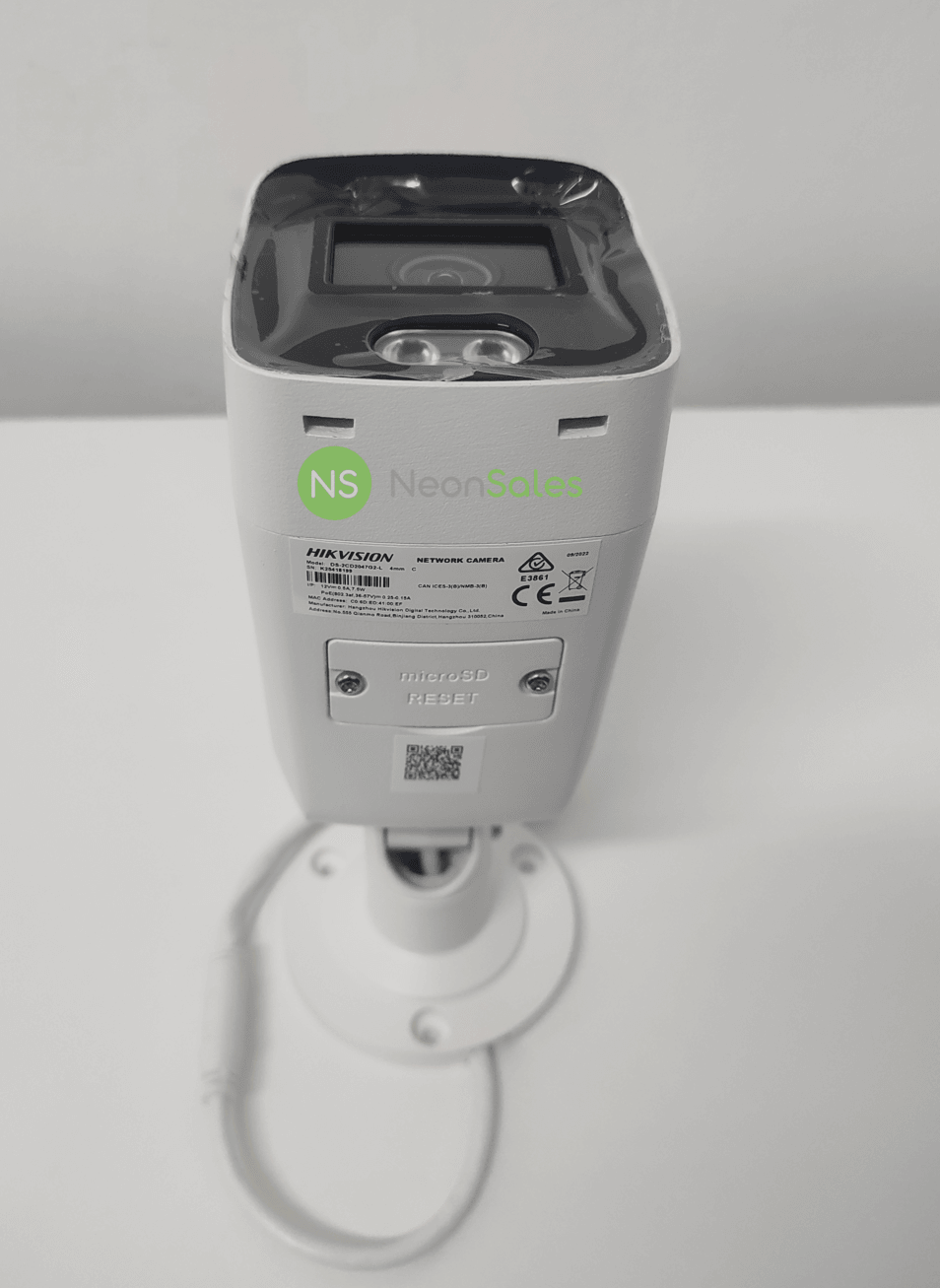

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch : Yes
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch : Auto, Schedule
Wide Dynamic Range (WDR) : 130 dB
SNR : ≥ 52 dB
Image Enhancement : BLC, HLC, 3D DNR
Event
Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Linkage : Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture : Yes
General

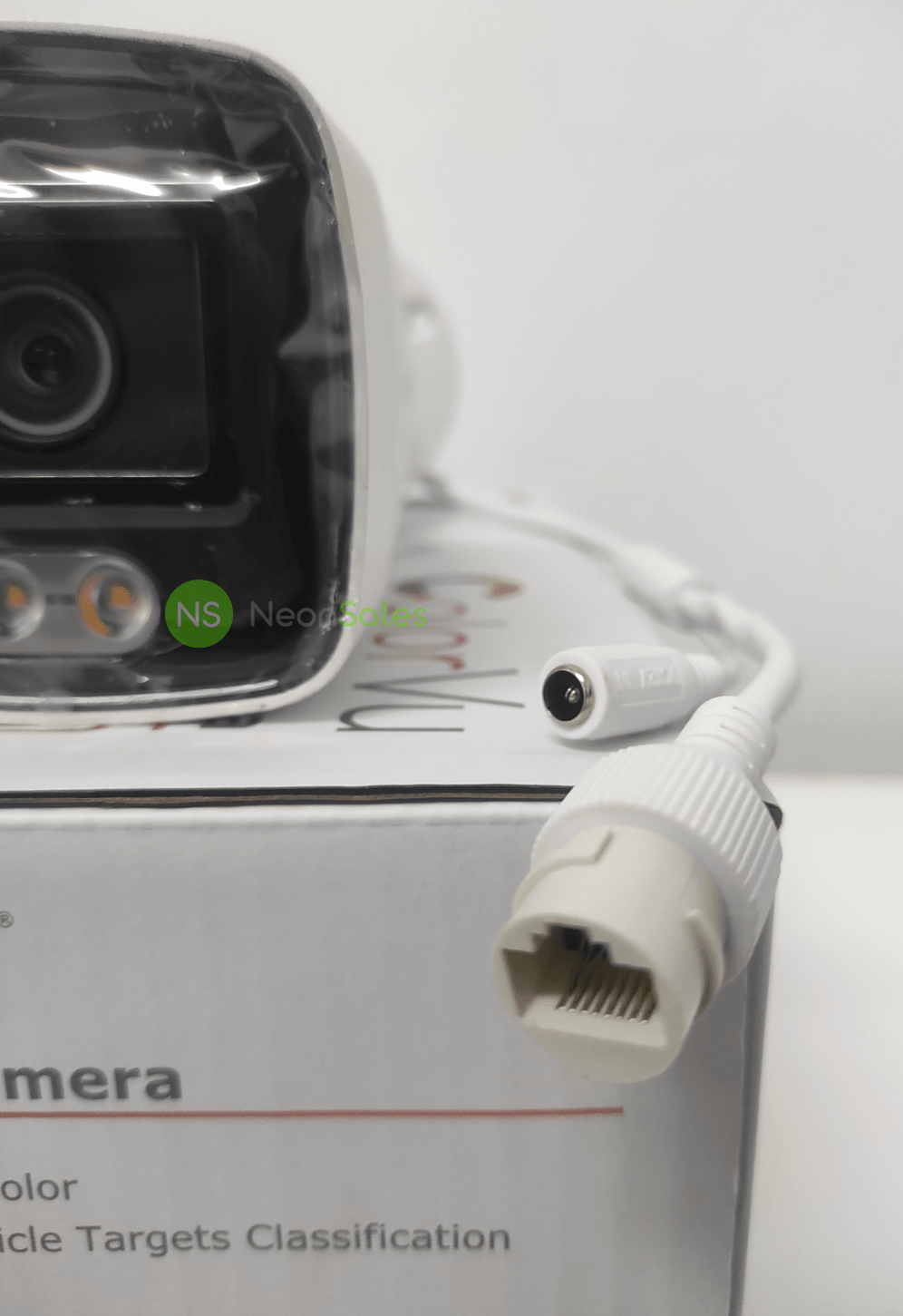

Power : 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension : 215.2 mm × 78.8 mm × 78.6 mm (8.5" × 3.1" × 3.1")
Package Dimension : 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Approx. 695 g (1.5 lb.) : With Package Weight
Approx. 1090 g (2.4 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Protection : IP67 rating

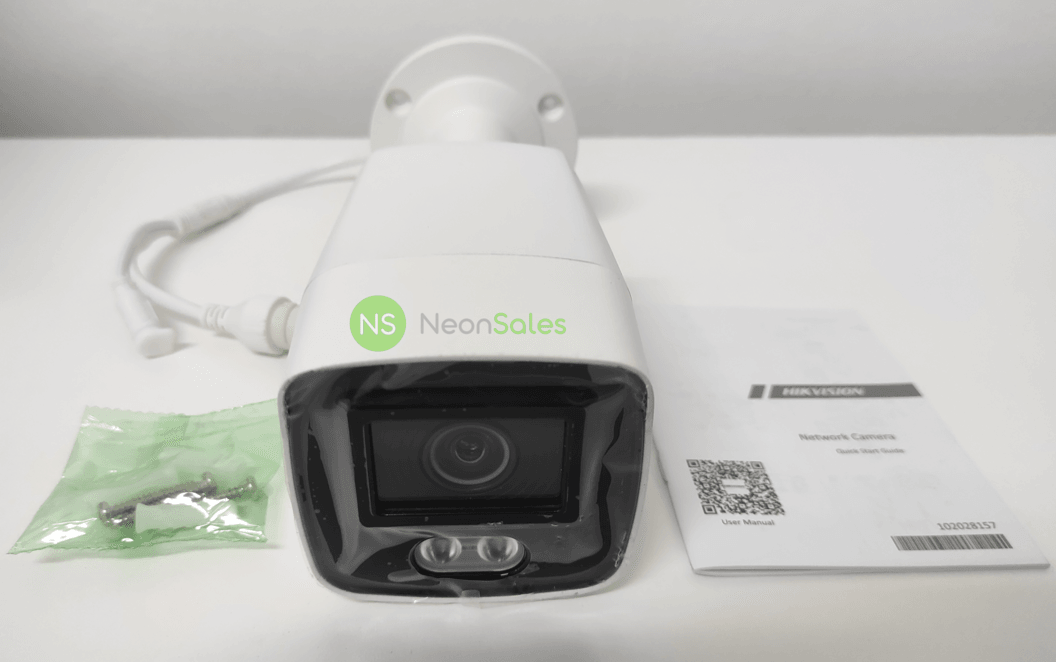

What's Included :
1 X Hikvision 4MP DS-2CD204G2-L 4MM ColorVu IP Camera
1 X Quick Start Up Guide
1 X Drill Template
