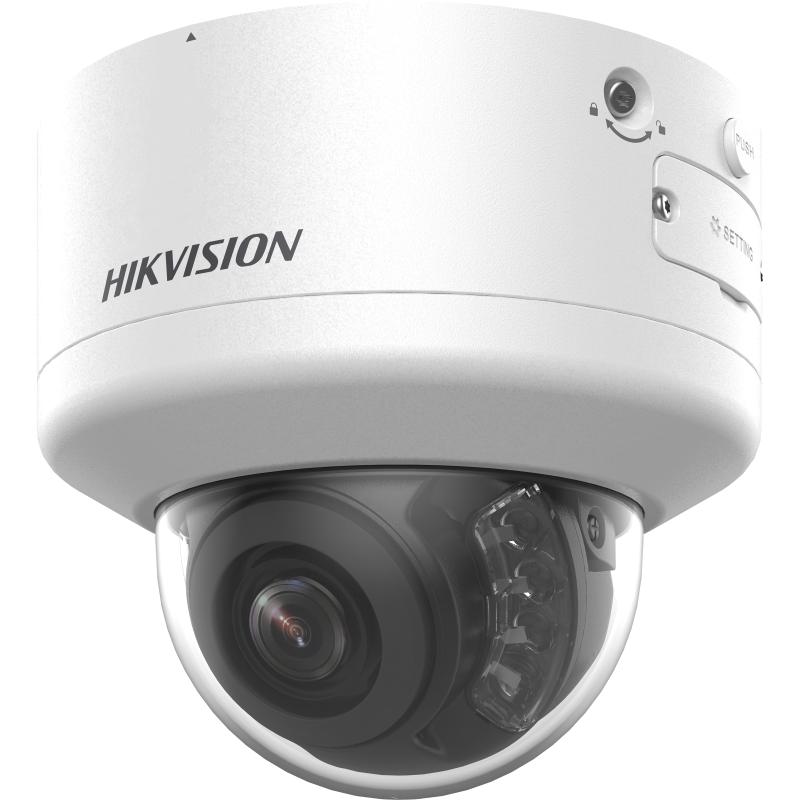

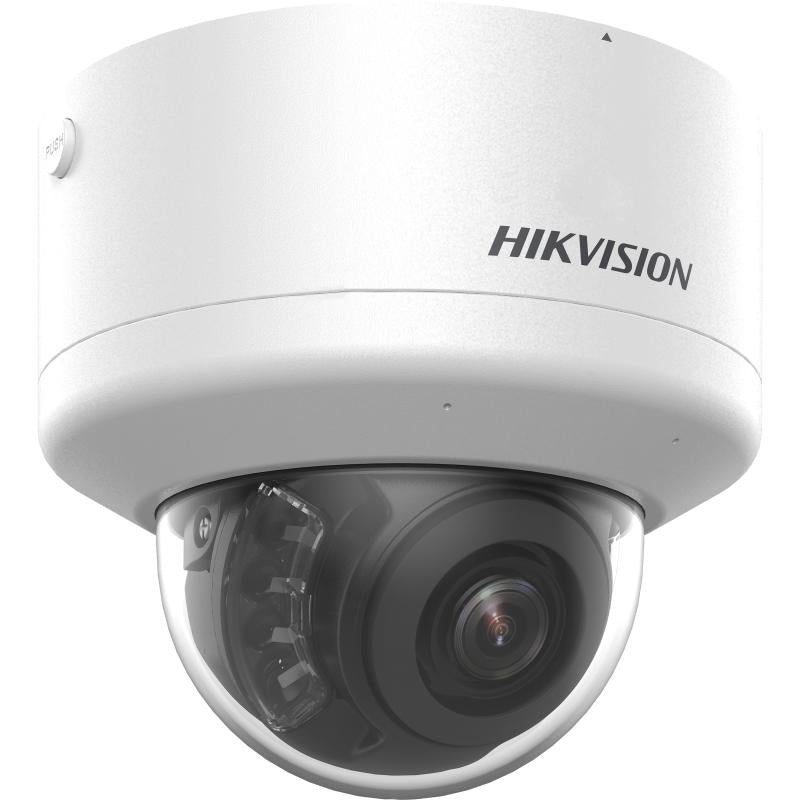

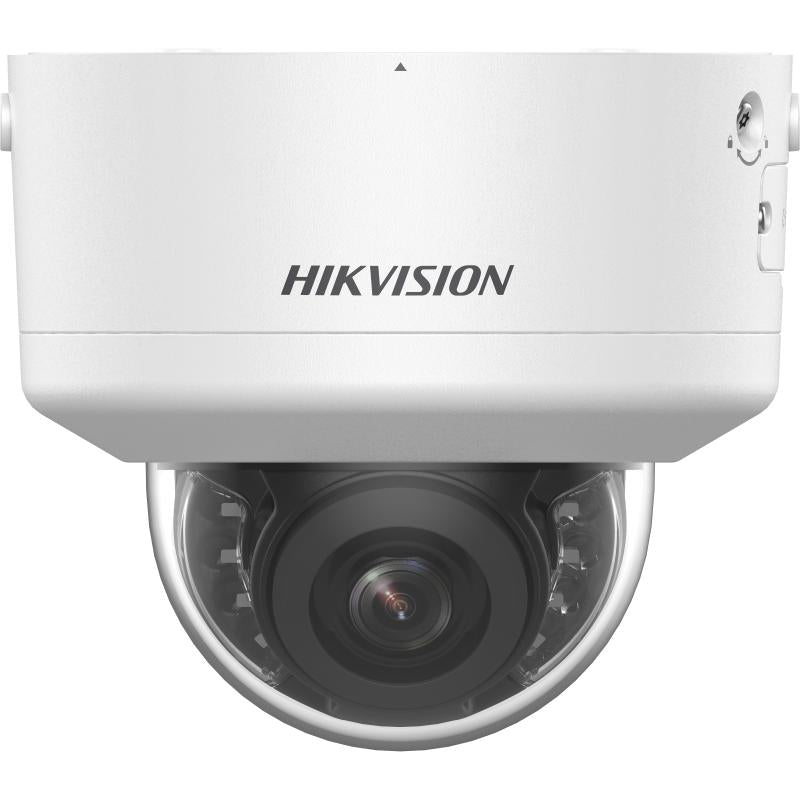

Premium 4 MP network dome camera with motorized zoom, IR/white-light hybrid illumination and AI analytics for professional surveillance. The Hikvision DS-2CD3746G2H-LIZSU-Y (PTRZ) delivers clear 2688 × 1520 resolution footage, a versatile 2.7-13.5 mm motorized varifocal lens, up to 40 m smart light range and deep-learning capabilities — making it perfect for South African installations needing clarity, flexibility and intelligent monitoring.
Why this camera stands out
-
4 MP resolution: Captures 2688 × 1520 pixels for crisp detail across large scenes.
-
Motorized varifocal lens (2.7-13.5 mm): Adjust the field of view from wide to narrow (114.6° to 41.8° horizontal) remotely — ideal for doors, parking lots and perimeter walls.
-
Smart hybrid light (IR + white): Hybrid illumination with smart switching ensures usable footage in low-light and full-colour output when needed.
-
Deep-learning analytics: With 1.5 TOPS computing power and recurrent AI structures, the camera supports advanced target detection (human/vehicle) and platform apps.
-
Professional build: Designed for outdoor use (-30 °C to +60 °C) with up to 40 m illumination range, and remote pan/tilt/rotate (PTRZ) design for flexible mounting.
Specifications & features
| Model |
DS-2CD3746G2H-LIZSU-Y (PTRZ) |
| Image sensor |
1/1.8″ Progressive Scan CMOS |
| Max. resolution |
2688 × 1520 (4 MP) |
| Lens |
2.7-13.5 mm motorized varifocal, F1.2 |
| Motorized zoom / PTRZ |
Pan ±175°, Tilt 0-85°, Rotate 0-350° |
| Illumination |
IR & white light hybrid, up to 40 m range |
| Deep learning / computing power |
1.5 TOPS, Smart RAM 400 MB, eMMC 2 GB |
| Operating conditions |
-30 °C to +60 °C |
| Streaming |
Main: 30 fps @ 2688×1520; Sub-stream etc. |
Installation & usage tips
- Mount the camera in a secure place, ideally under an eave or mounting hood to protect from direct rain and extreme sunlight.
- Use the motorized zoom to optimize the scene after installation — professionally set your field of view: wide for area overview, tele for entry/exit point detail.
- For coloured output at night, set the white-light mode active; for stealth surveillance switch to IR mode.
- If paired with a compatible NVR, enable deep-learning analytics (human/vehicle) for more accurate alerts and fewer false alarms.
- Ensure good network bandwidth if sending 4 MP streams; consider H.265+ compression if supported in your NVR to save storage.
Frequently asked questions
Is this camera suitable for outdoor use?
Yes — with a temperature range of -30 °C to +60 °C and weather-resistant housing, it’s built for external deployment in South African conditions. Make sure to mount it under some protection if exposed to heavy rain.
Do I need separate lighting at night?
Not necessarily — the hybrid IR/white-light supports low-light and collectible colour footage after dark. However for large distances or very dark zones you may still incorporate supplemental lighting.
Ready to step up your video-security? Add the Hikvision DS-2CD3746G2H-LIZSU-Y (PTRZ) to your cart today for clear imaging, intelligent analytics and future-proof performance.
