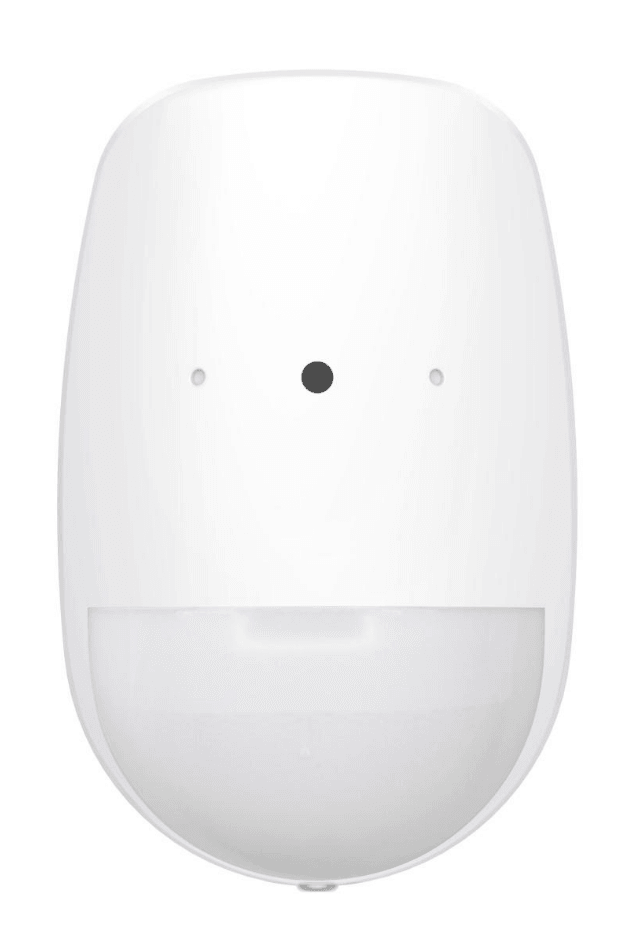

HIK AX PRO WIRELESS PIR GLASS BREAK DETECTOR
DS-PDPG12P-EG2-WE
Upgrade your security with HIK AX PRO WIRELESS PIR GLASS BREAK DETECTOR! With a PIR detection range of 12m/85.9° and glass break range of 8m 120°, this detector offers full protection for your home or business.
Enjoy the convenience of remote configurability through our user-friendly app and choose from multiple enrollment methods for easy installation. Plus, with pet immunity up to 30kg and a bulletproof battery design, you can trust in the reliability of this product. Keep your space safe with HIK AX PRO WIRELESS PIR GLASS BREAK DETECTOR - order now!
FEATURES:
-
PIR Detection Range: 12m/85.9°
-
Glass Break Range: 8m 120°
-
Up to 30kg pet immunity
-
Fully remote configurable through APP
-
Multiple enrollment method and easy installation design
-
Easy replaceable battery with PCB protected
SPECS:
- Detection Performance
-
Detection MethodPassive Infrared;Acoustic Sensor
-
Detection Range12m
-
Detection Angle85.9°
-
Detection Zones52
-
Detectable Speed0.3~2m/s
-
Pet Immunity30Kg
-
PIR SensitivityAuto, high, pet
-
White Light Filter6500lux
-
Glass Break Range8m
-
Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
-
Glass Break Sensitivity 2m, 4m, 6m, 8m
-
Glass Thickness 2.4 mm to 6.4 mm
- Digital Temperature Compensation Support
-
Glass Size0.3 m × 0.3 m to 3 m × 3 m
- Creep Zone Protection Support
- Feature
- Digital Processing Support
- Sealed Optics Support
-
Tamper Protection Front;Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
- Interface
-
Power Switch Power up unenrolling
-
LED Indicator Green(PIR), Red(BG), Blue(alarm)
- Transmission
-
Transmission Technology Tri-X Wireless
-
Transmission Method Two-Way RF Wireless
- Transmission Frequency 868MHz
-
Transmission Security AES-128 Encryption
-
Transmission Range(Free Space)1.6Km
- Frequency Hopping Support
-
Enrolling Method Power up;Remote ID;QR Code
- Electrical Characteristics
-
Standard Battery Life Up to 4 years (standby time)
-
Power Supply Battery powered
-
Battery Type CR123A × 2
- Typical Voltage 3V
- General
-
Operation Temperature-10°C to 55°C (14°F to 131°F)
-
Storage Temperature-20°C to 60°C (-4°F to 140°F)
-
Operation Humidity 10% to 90%
-
Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
- Weight 134g
-
Mounting Height 1.8 m to 2.4 m
- Mounting Method Wall
- Application Scenario Indoor
- Bracket Optional wall & ceiling accessory
