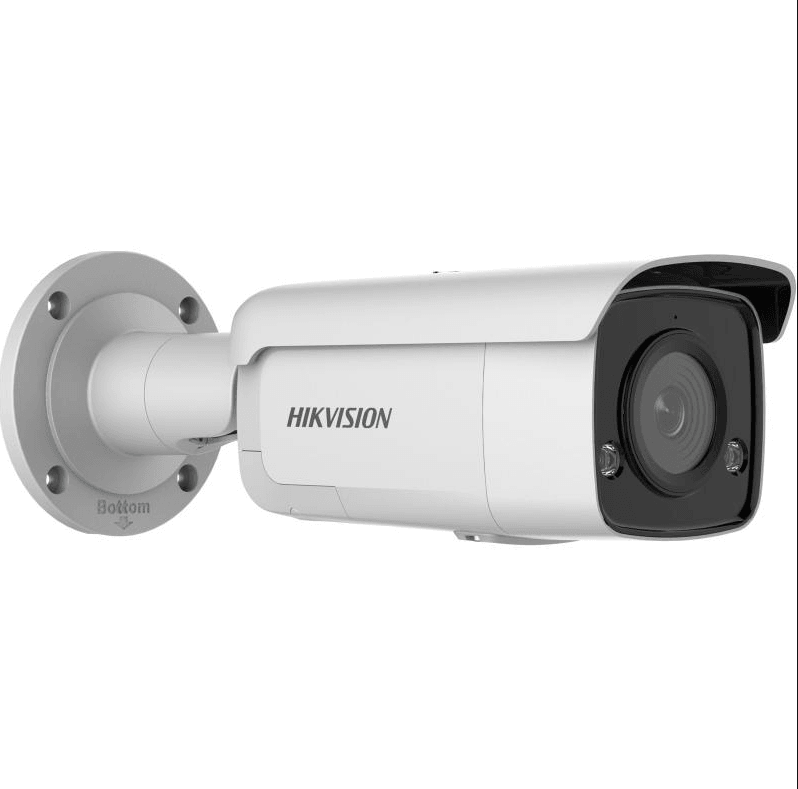

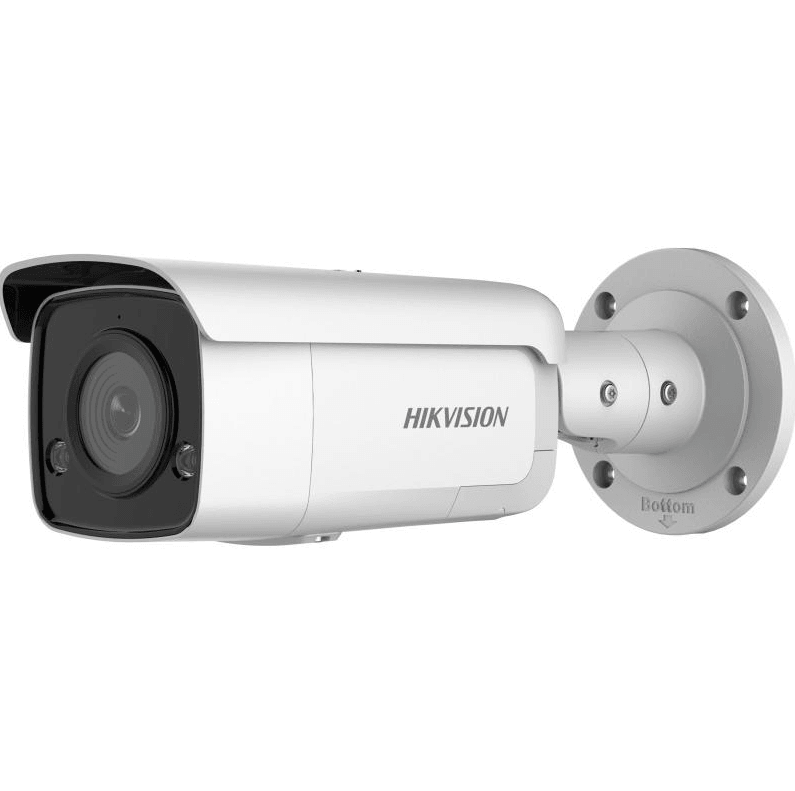

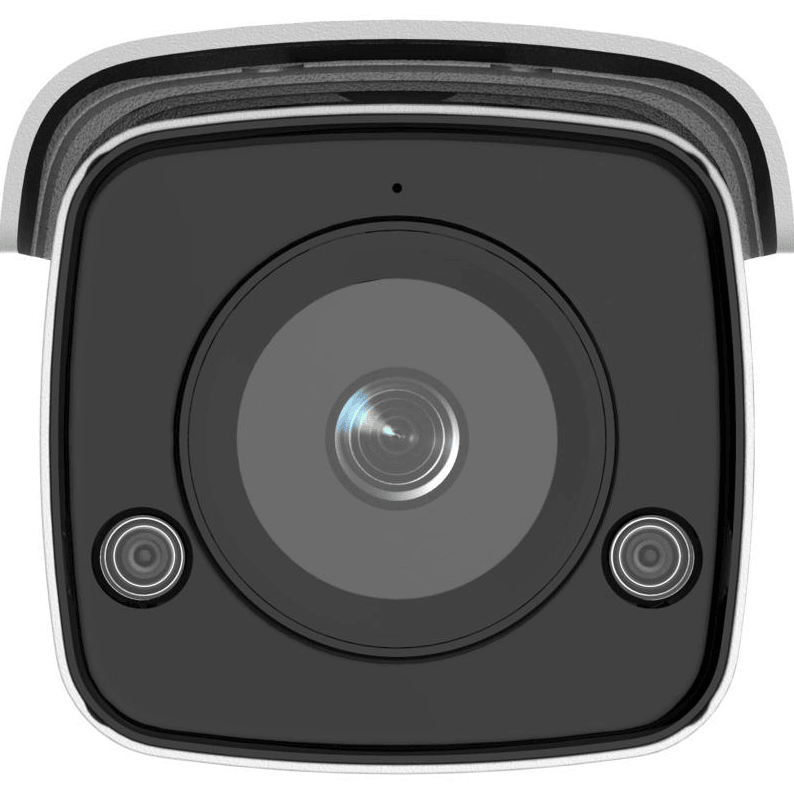

HIK ACUSENSE 4MP BULLET CAMERA W/ STROBE 4MM
Tapping into the power of advanced deep learning algorithms, Hikvision AcuSense technology revolutionizes target classification alarms for both front- and back-end devices.
Elevating the system's focus to human and vehicle targets, it dramatically enhances alarm efficiency and effectiveness. Discover the incredible capabilities of the HIK ACUSENSE 4MP BULLET CAMERA W/ STROBE 4MM.
FEATURES:
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 1/3" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
- Lens MountM12
- Iris Type Fixed
- ApertureF1.4
- DORI
-
DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In MicrophoneYes
- Built-In SpeakerPower: 2 W. Max. sound pressure level: 10 cm: 97 dB.
-
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:2.2 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 10 Ω, interface type: non-equilibrium
-
Alarm
Visual alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning
- Deep Learning Function
- Face CaptureYes
- General
-
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max: 12 W
- DimensionØ105 mm × 287.6 mm (Ø4.1" × 11.3")
- Package Dimension386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")
- WeightApprox. 1135 g (2.5 lb.)
- With Package WeightApprox. 1624 g (3.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
