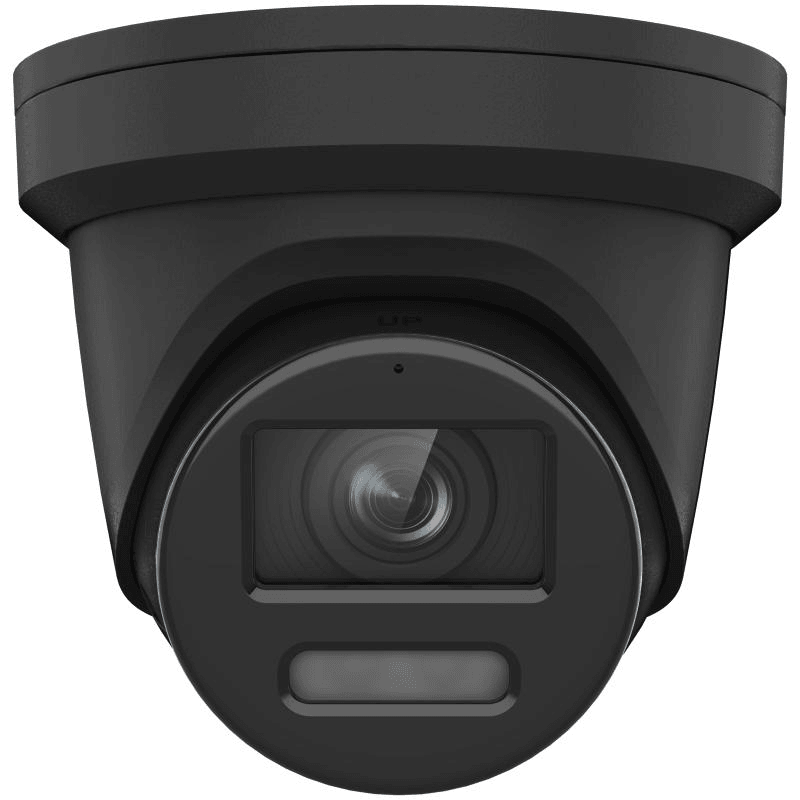

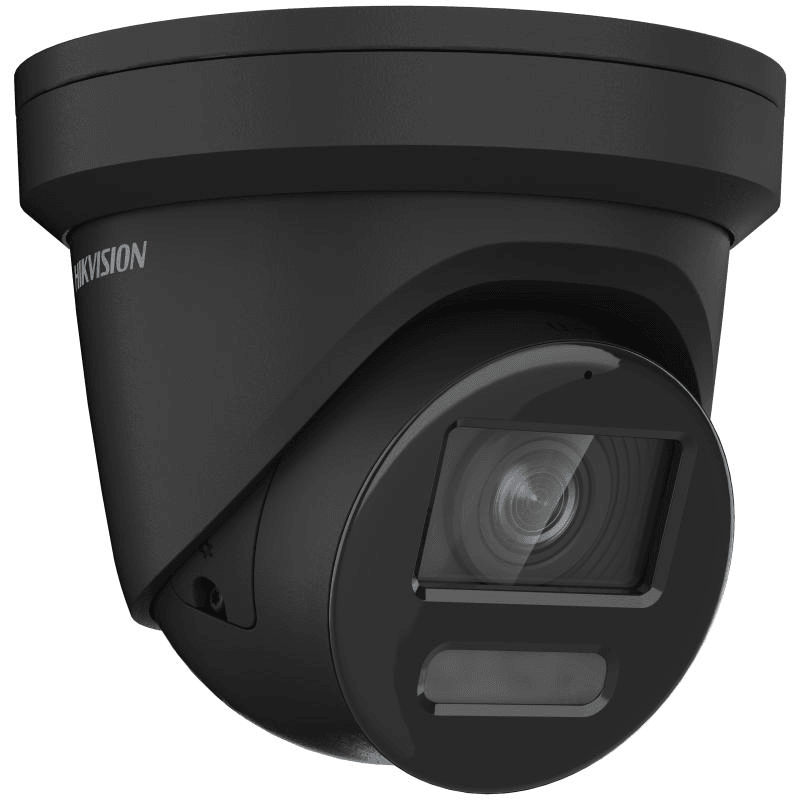

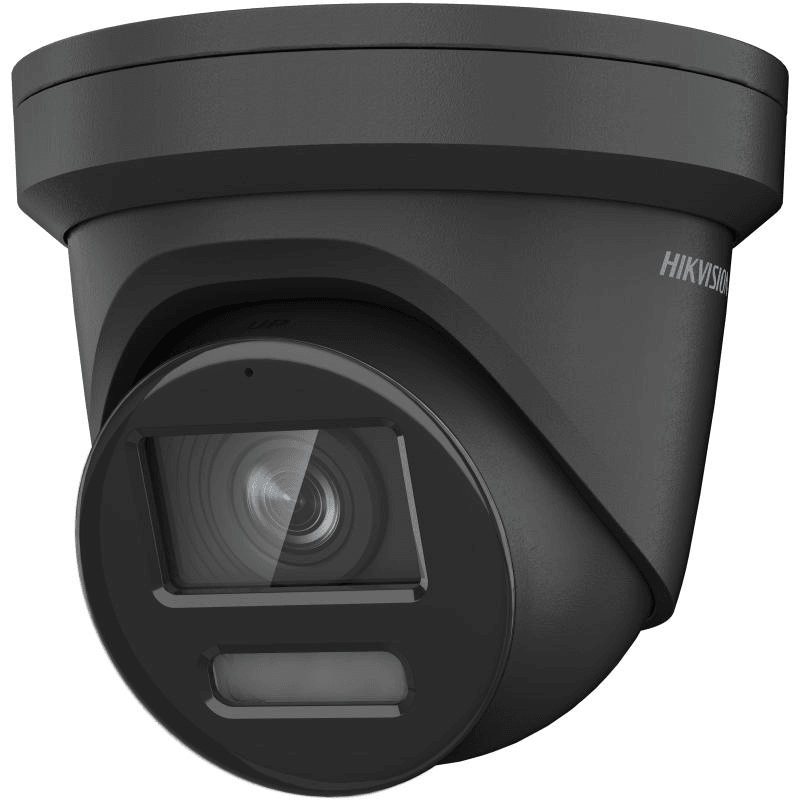

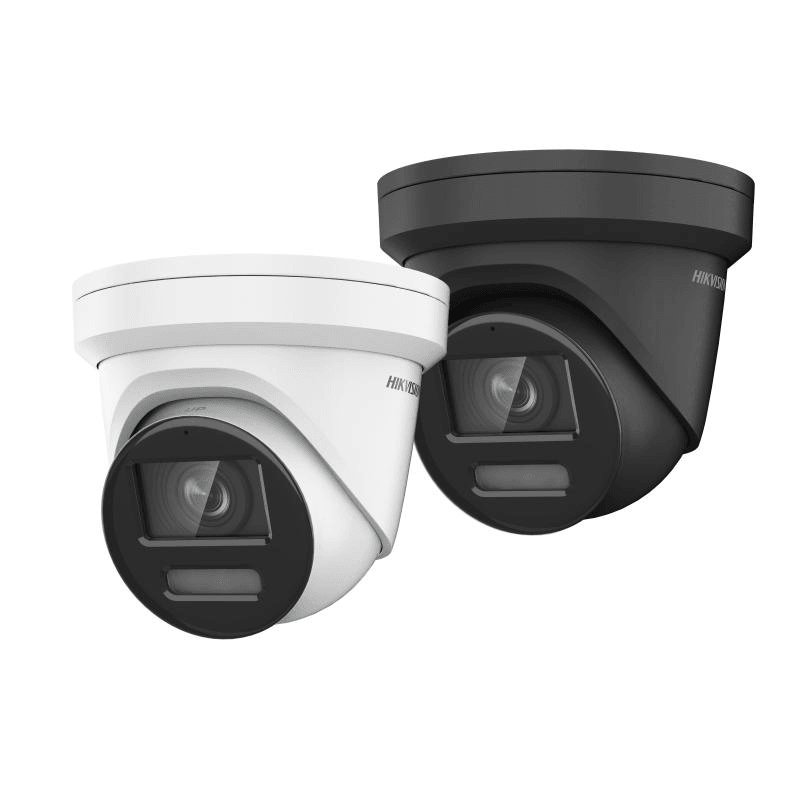

HIK 8MP COLORVU DOME 2.8MM DS-2CD2387G2-LU - BLK

HIK 8MP COLORVU DOME 2.8MM DS-2CD2387G2-LU - BLK

DS-2CD2387G2-LU(2.8mm)(C)(BLACK)

Experience vivid and colorful 24/7 imaging with the Hikvision ColorVu technology, featuring F1.0 advanced lenses and high-performance sensors. The F1.0 super-aperture captures more light, resulting in brighter images. With advanced sensor technology, maximum use of available light is guaranteed.

FEATURES:

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor
1/1.2″ Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color：0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
24/7 Color imaging
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm: 3.1 m to ∞

4 mm: 3.6 m to ∞

DORI
DORI
2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz:

25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering
-U: Yes
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)
130 dB
Privacy Mask
8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-In Microphone
-LU: Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection

Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Deep Learning Function
Face Capture
Yes
General
Power
-L:

12 VDC, 0.42 A, max. 5 W

PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W

-LU:

12 VDC, 0.46 A, max. 5.5 W

PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

Material
Cover: metal, main body: metal
Dimension
Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 870 g (1.9 lb.)
With Package Weight
Approx. 1160 g (2.6 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function
Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
Software Reset
Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)

Safety
UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment
CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

Protection
IP67: IEC 60529-2013
