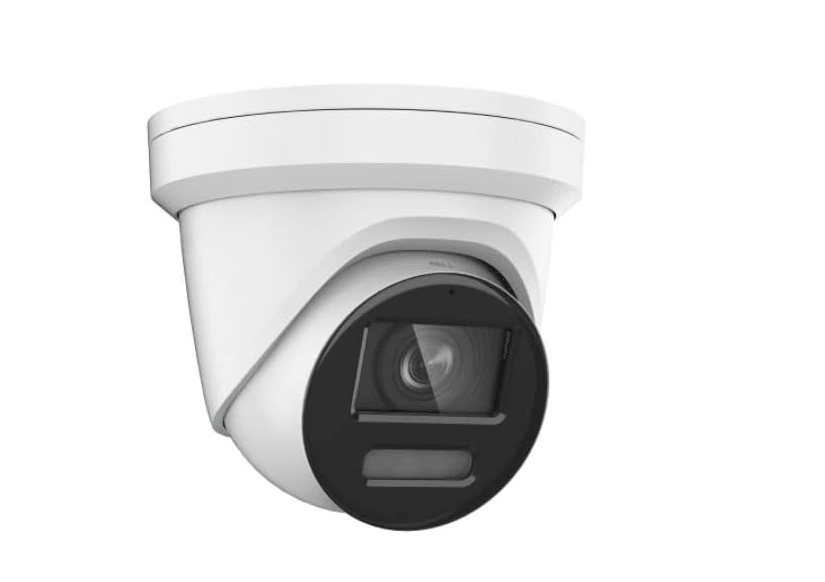

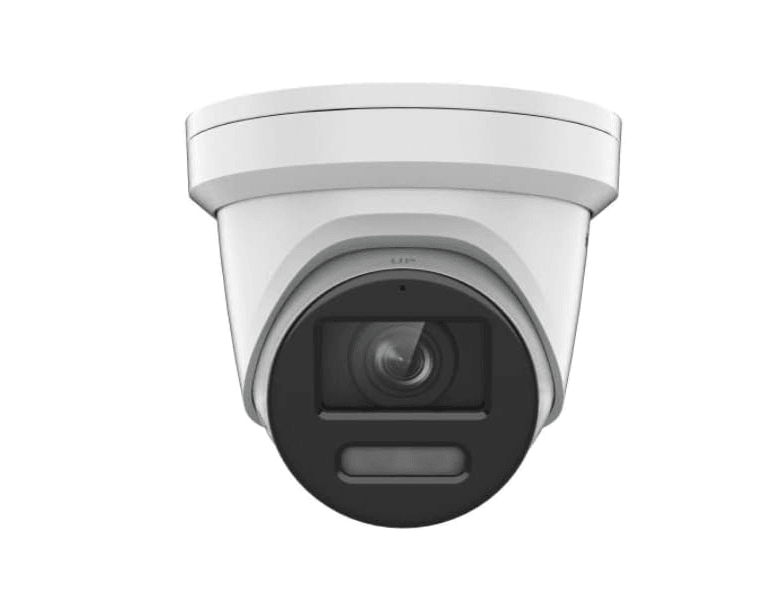

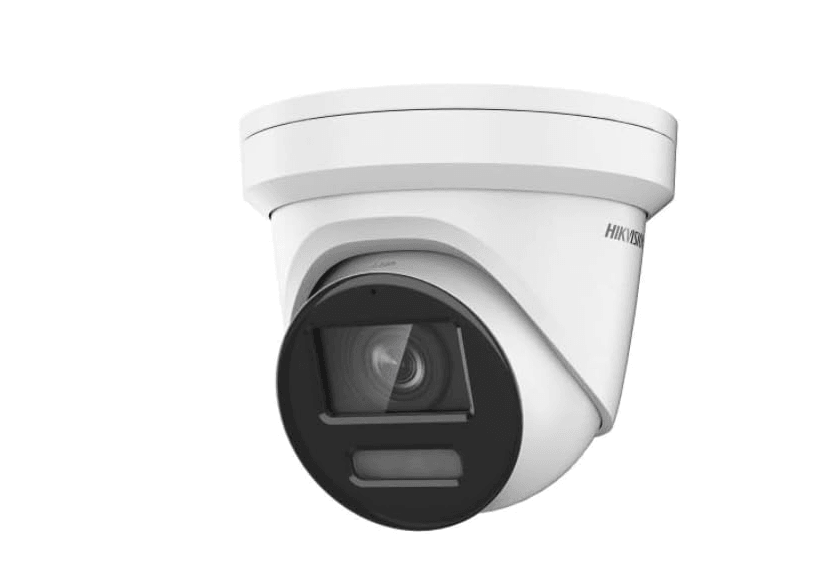

HIK 8MP COLORVU DOME 2.8MM DS-2CD2387G2-L
HIK 8MP COLORVU DOME 2.8MM DS-2CD2387G2-L
DS-2CD2387G2-L(2.8mm)(C)
Experience 24/7 vivid, colorful images with Hikvision ColorVu dome camera! Featuring F1.0 advanced lenses and high performance sensors, this camera captures brighter images with its F1.0 super-aperture that collects more light. With advanced sensor technology, you can optimize available light for unparalleled clarity and detail.
FEATURES:
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Built-in microphone for real-time audio security(-U)
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 1/1.2″ Progressive Scan CMOS
- Max. Resolution 3840x2160
- Min. IlluminationColor:0.0005 Lux @ (F1.0, AGC ON)
- Shutter Speed 1/3 s to 1/100,000 s
- Day & Night 24/7 Color imaging
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
-
Depth Of Field
2.8 mm: 3.1 m to ∞
4 mm: 3.6 m to ∞
- DORI
-
DORI
2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Illuminator
- Supplement Light Type White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- Video
-
MainStream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Mainstream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bitrate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bitrate Control CBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering-U: Yes
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression-U: G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate-U: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Network
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
- Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)130 dB
- Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
- Built-In Microphone-LU: Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
- Deep Learning Function
- Face Capture Yes
- General
-
Power
-L:
12V DC, 0.42 A, max. 5 W
PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W
-LU:
12 VDC, 0.46 A, max. 5.5 W
PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
- Material Cover: metal, main body: metal
- DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
- Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- Weight Approx. 870 g (1.9 lb.)
- With Package Weight Approx. 1160 g (2.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
- Software Reset Yes
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
-
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
-
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- Protection IP67: IEC 60529-2013
