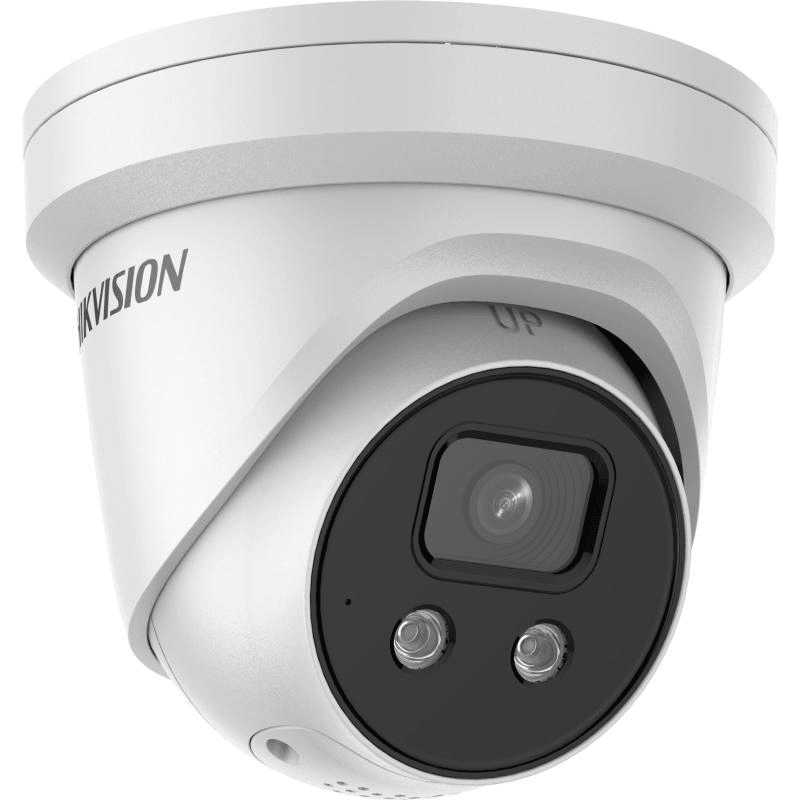

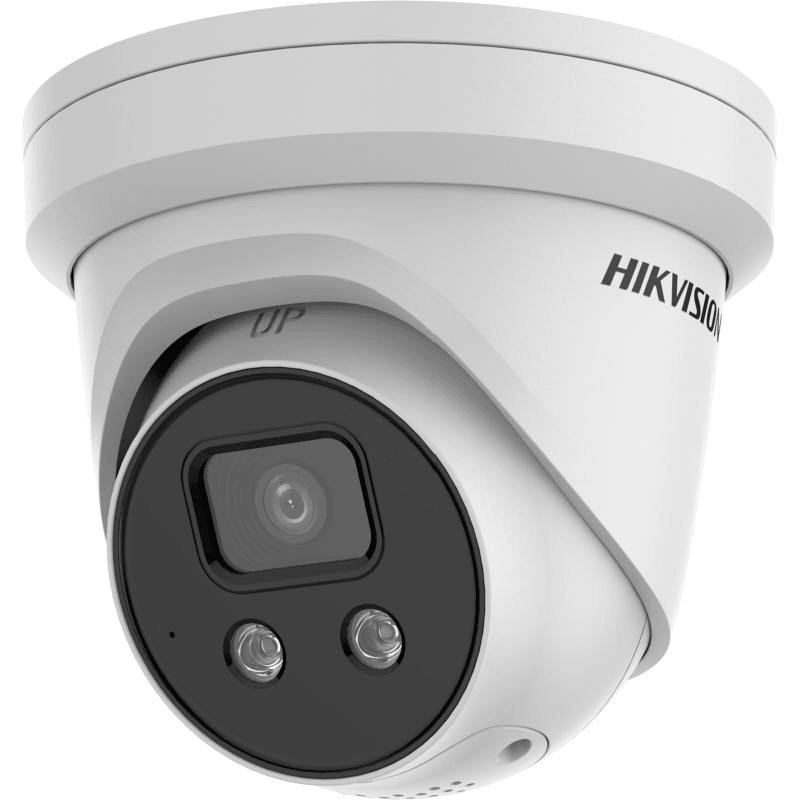

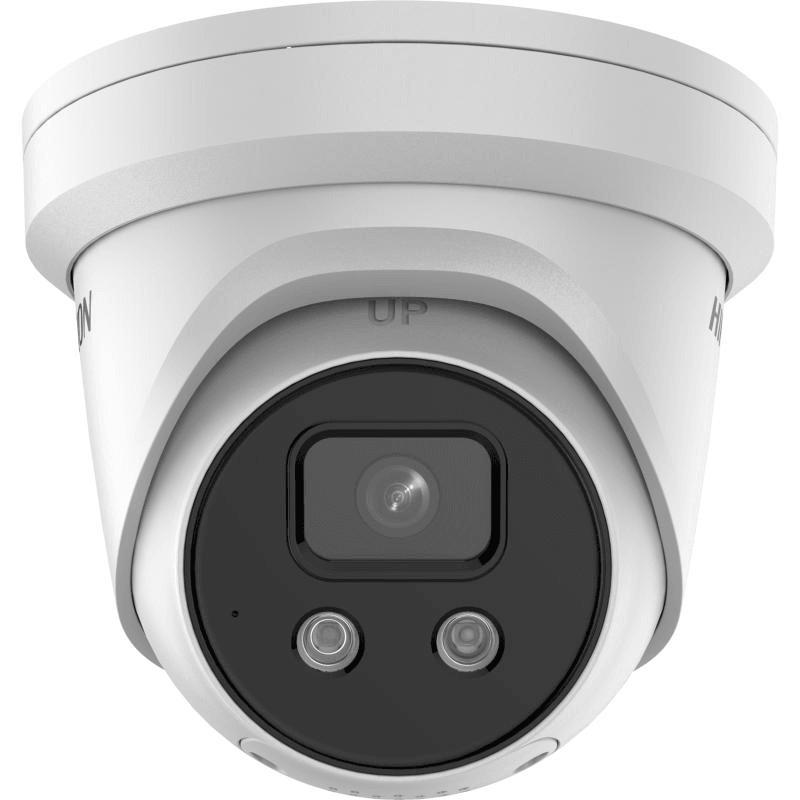

HIK 8MP ACUSENSE IP DOME 4MM DS-2CD2386G2-ISU/SL


HIK 8MP ACUSENSE IP DOME 4MM DS-2CD2386G2-ISU/SL

R 4,389.00
Unit price  per
history

Safe & Secure Payment Options

HIK 8MP ACUSENSE IP DOME 4MM DS-2CD2386G2-ISU/SL

DS-2CD2386G2-ISU/SL(4mm)(C)

Unleash the power of deep learning algorithms with the Hikvision AcuSense IP Dome camera. With advanced technology, it is able to accurately classify human and vehicle targets, providing reliable alarms on both front- and back-end devices. Improve your security system with this unbeatable efficiency and effectiveness.

FEATURES:

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
P/N
P/N
Wide Dynamic Range
120 dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Max. Resolution
3840 × 2160
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type
Fixed
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°

Aperture
F1.6
Lens Mount
M12
DORI
DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator
Supplement Light Type
IR
IR Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Visual Alarm
Yes
Supplement Light Range
Up to 30 m
Video
Max. Resolution
3840 × 2160
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

SNR
≥ 52 dB
Target Cropping
Yes
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Interface
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;

1 built-in speaker, 1 built-in microphone

Built-In Microphone
Yes
Built-In Speaker
Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification

Scene change detection

Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Deep Learning Function
Face Capture
Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification

General
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Web Client Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software Reset
Yes
Firmware Version
V5.5.112
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, Class 3

Power Consumption And Current
12 VDC, 0.75 A, max. 9 W

PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W

Power Interface
Ø5.5 mm coaxial power plug
Camera Material
Metal except for trim ring
Camera Dimension
Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9")
Package Dimension
170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
Camera Weight
Approx. 840 g (1.9 lb.)
With Package Weight
Approx. 1160 g (2.6 lb.)
Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
