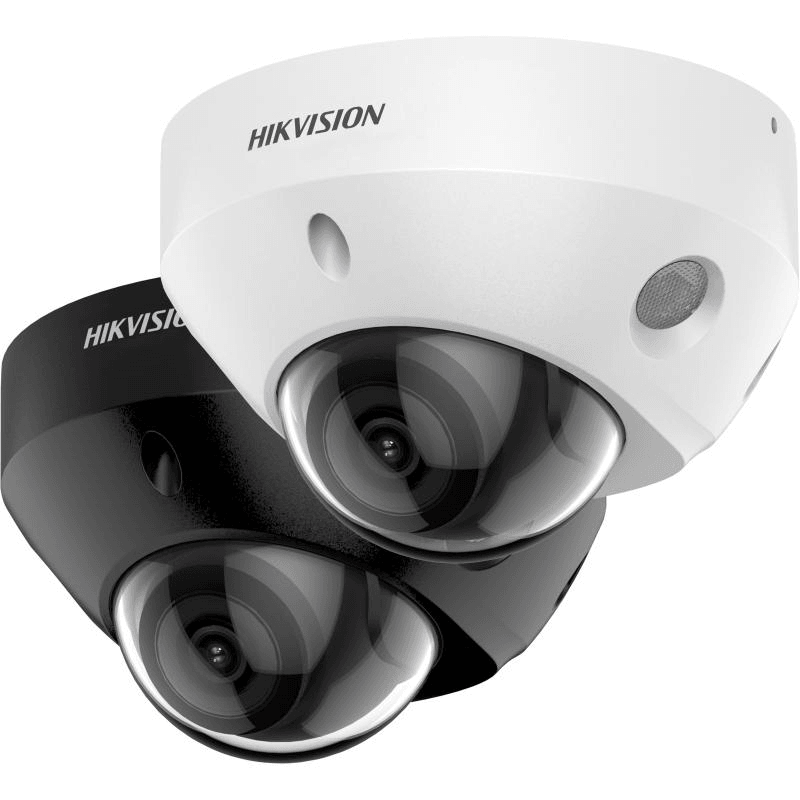

HIK 8MP ACUSENSE IP DOME 2.8MM DS-2CD2586G2-IS

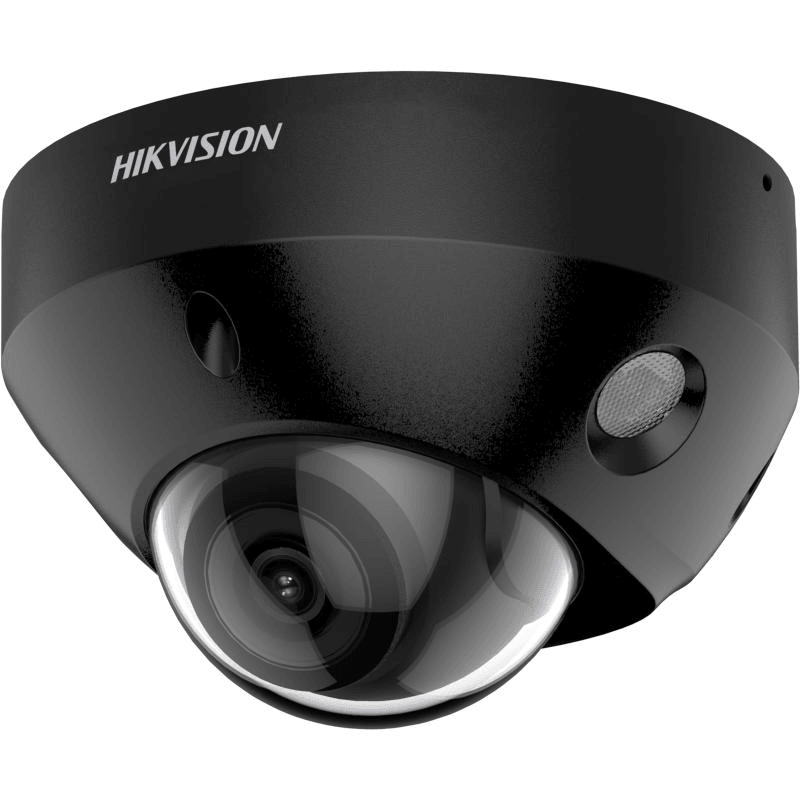

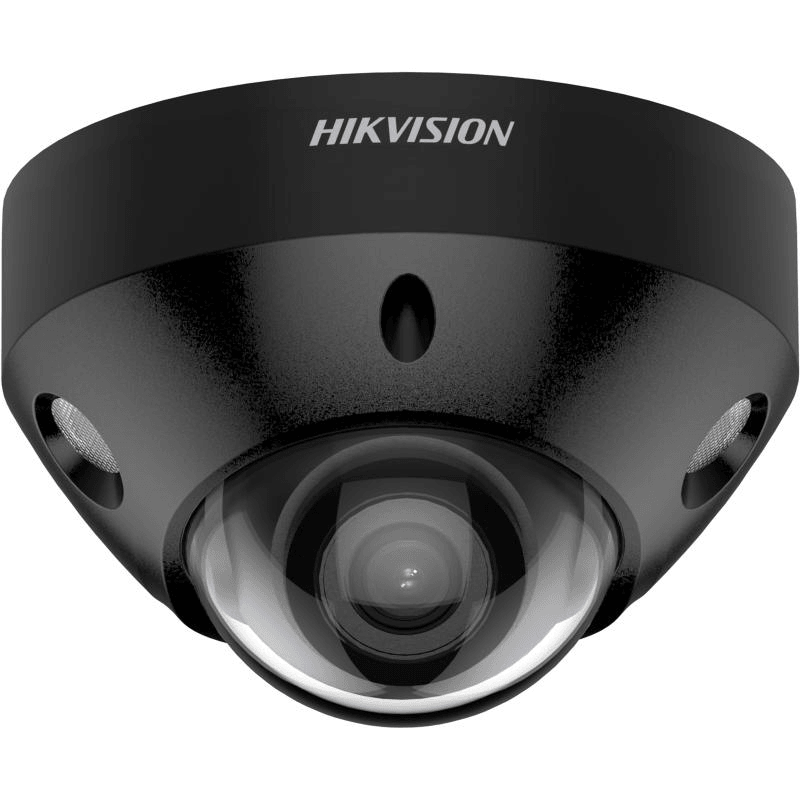

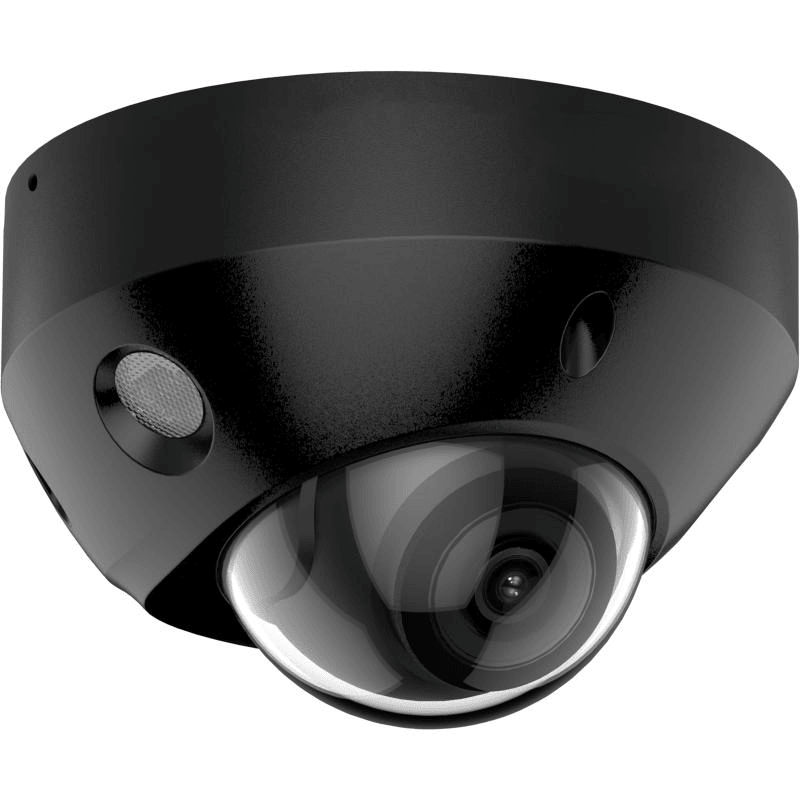

DS-2CD2586G2-IS(2.8mm)(C)(BLACK)
The power of deep learning algorithms in Hikvision AcuSense technology provides enhanced classification alarms for human and vehicle targets on front- and back-end devices. This advanced system specifically detects human and vehicle targets, significantly boosting alarm efficiency and effectiveness.
FEATURES:
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Focusing on human and vehicle classification based on deep learning
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK08)
SPECS:
- Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Max. Resolution 3840x2160
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°
4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
-
Depth Of Field
2.8 mm: 2.2 m to ∞
4 mm: 2.6 m to ∞
- DORI
-
DORI
2.8 mm:
D: 89 m
O: 35 m
R: 18 m
I: 9 m
4 mm:
D: 99 m
O: 39 m
R: 20 m
I: 10 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 30m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Mainstream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Mainstream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bitrate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bitrate Control CBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8khz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
- Built-In Microphone Yes
-
Audio
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm
-IS：
1 input, 1 output (max. 12 VDC, 20 mA)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- Deep Learning Function
- Face Capture Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W
- Material Base: aluminum, cover: plastic
- DimensionØ113.6 mm × 72.6 mm (Ø4.5" × 2.9")
- Package Dimensions 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight Approx. 400 g (0.9 lb.)
- With Package Weight Approx. 635 g (1.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
-
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
-
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
