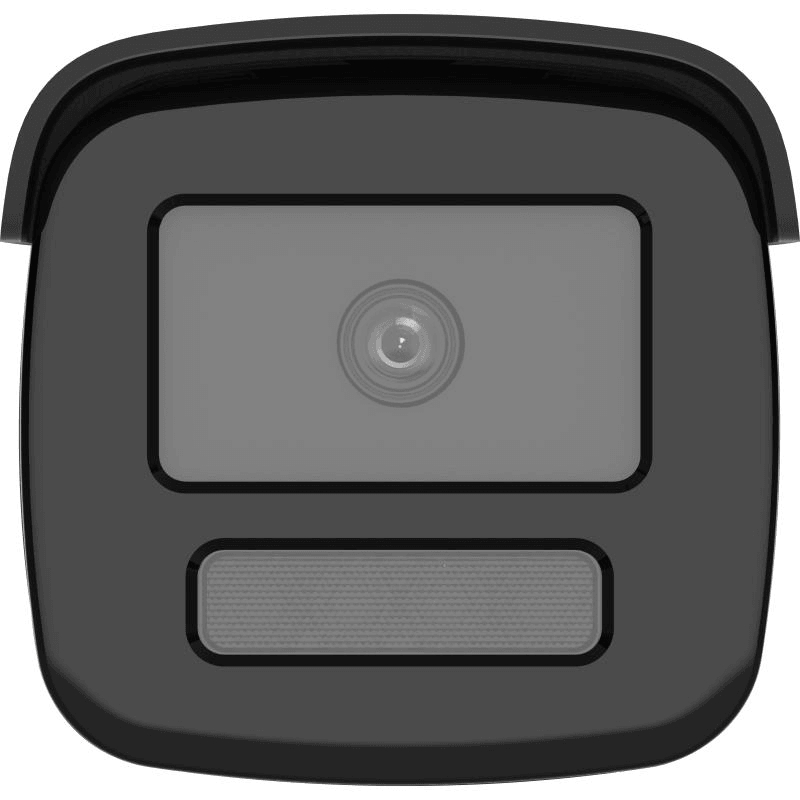

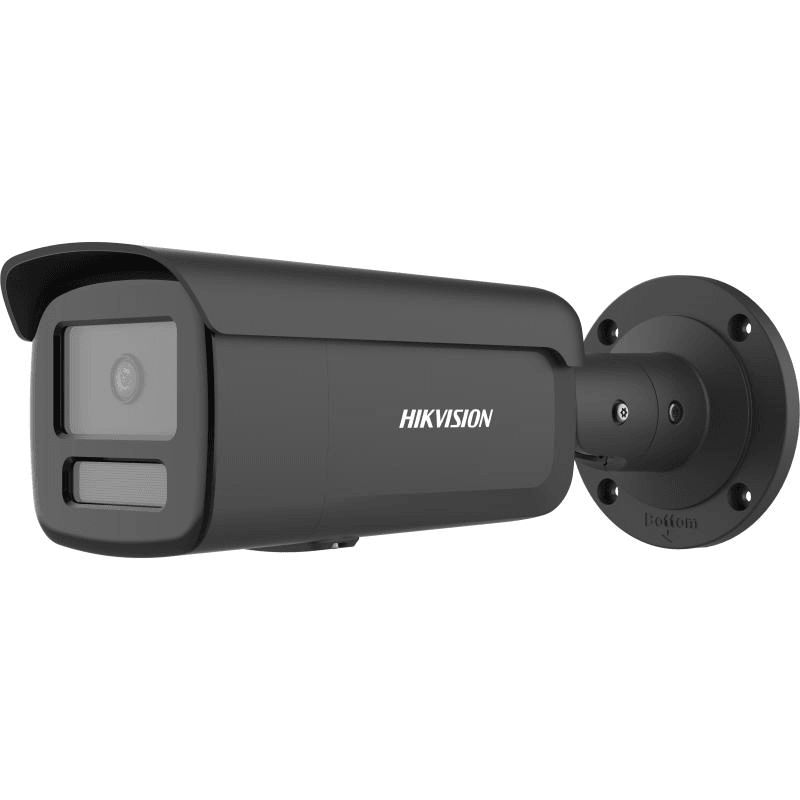

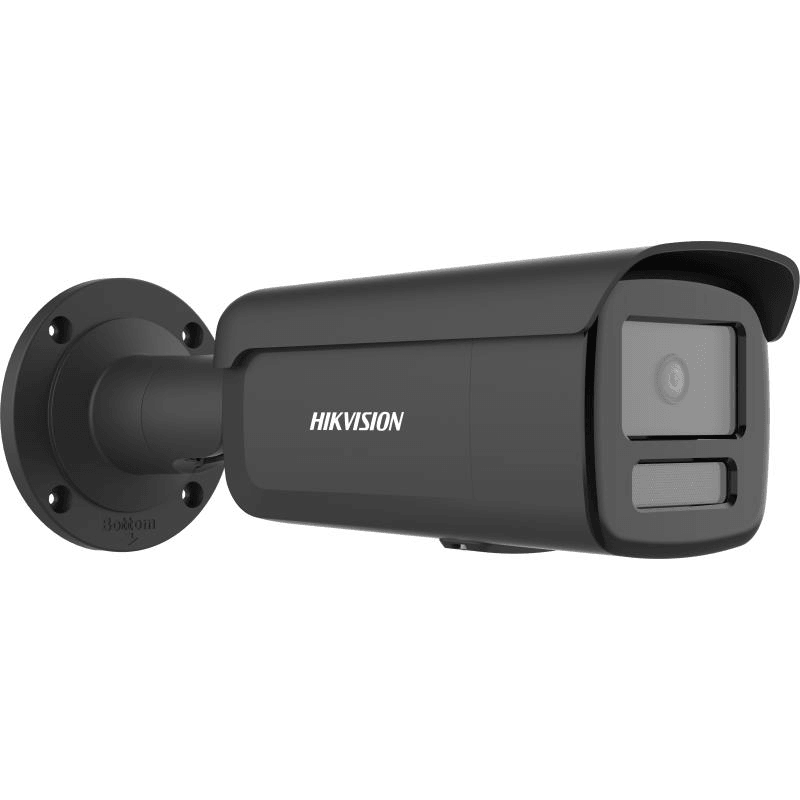

HIK 8MP ACUSENSE F1.0 BULLET 2.8MM DS-2CD2T86G2H-4
DS-2CD2T86G2H-4I(2.8mm)(eF)/BLACK
Capture stunning images at 8MP resolution with incredible low-light capabilities using powered-by-DarkFighter technology. Say goodbye to washed out images thanks to 120 dB WDR technology, while efficient H.265+ compression technology saves space without sacrificing quality.
With deep learning-based human and vehicle classification, you can easily focus on what matters most. Plus, with its IP67 water and dust resistance, the HIK 8MP ACUSENSE F1.0 BULLET 2.8MM DS-2CD2T86G2H-4 is built to withstand even the toughest conditions.
FEATURES:
SPECS:
CameraImage Sensor1/1.8" Progressive Scan CMOSMax. Resolution3840 × 2160Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IRShutter Time1/3 s to 1/100,000 sDay & NightIR cut filterAngle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°LensLens TypeFixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
Lens MountM16Iris TypeFixedApertureF1.0Depth Of Field2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
DORIDORI2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
IlluminatorSupplement Light TypeIRSupplement Light Range2I: up to 60 m; 4I: up to 80 mSmart Supplement LightYesIR Wavelength850nmVideoMainstream50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMainstream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Video Bit Rate32 Kbps to 16 MbpsH.264 TypeBaseline Profile,Main Profile,High ProfileH.265 TypeMain ProfileBit Rate ControlCBR,VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTPSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUPUser/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)ClientiVMS-4200,Hik-Connect,Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImageImage Parameters SwitchYesImage SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browserDay/Night SwitchDay,Night,Auto,ScheduleImage EnhancementBLC,HLC,3D DNRSNR≥ 52 dBWide Dynamic Range (WDR)120 dBPrivacy Mask4 programmable polygon privacy masksInterfaceEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYesEventBasic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exceptionLinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger captureSmart EventScene change detectionDeep Learning FunctionFace CaptureYesPerimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
GeneralPower-2I: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W 4I: 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 WMaterialFront cover: metal, body: metal, bracket: metalDimension286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")WeightApprox. 1180 g (2.6 lb.)With Package WeightApprox. 1829 g (4.3 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-bandingLanguage33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApprovalEMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32: 2015
SafetyCB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
