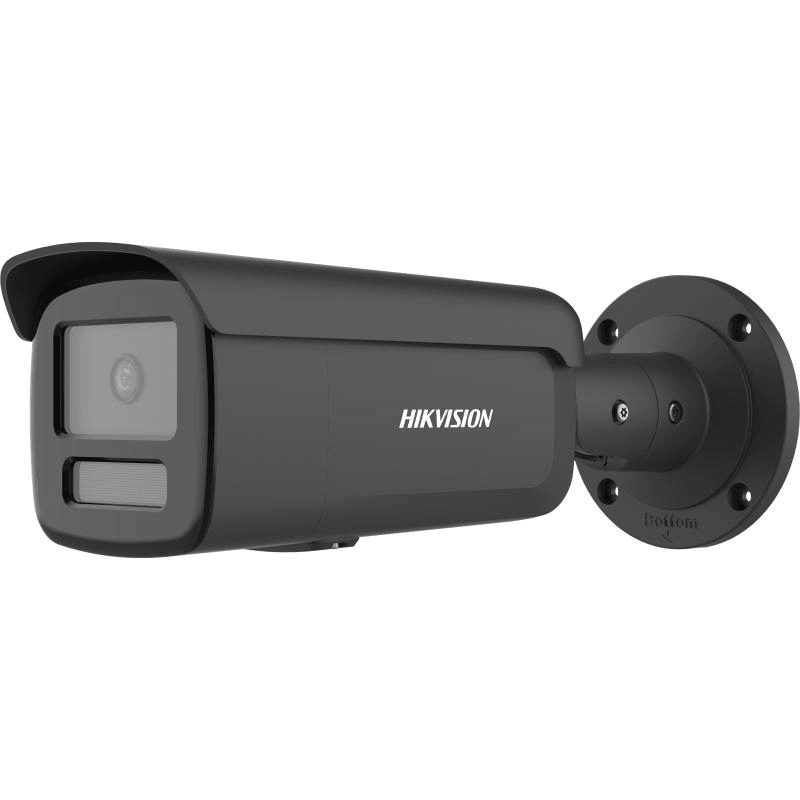

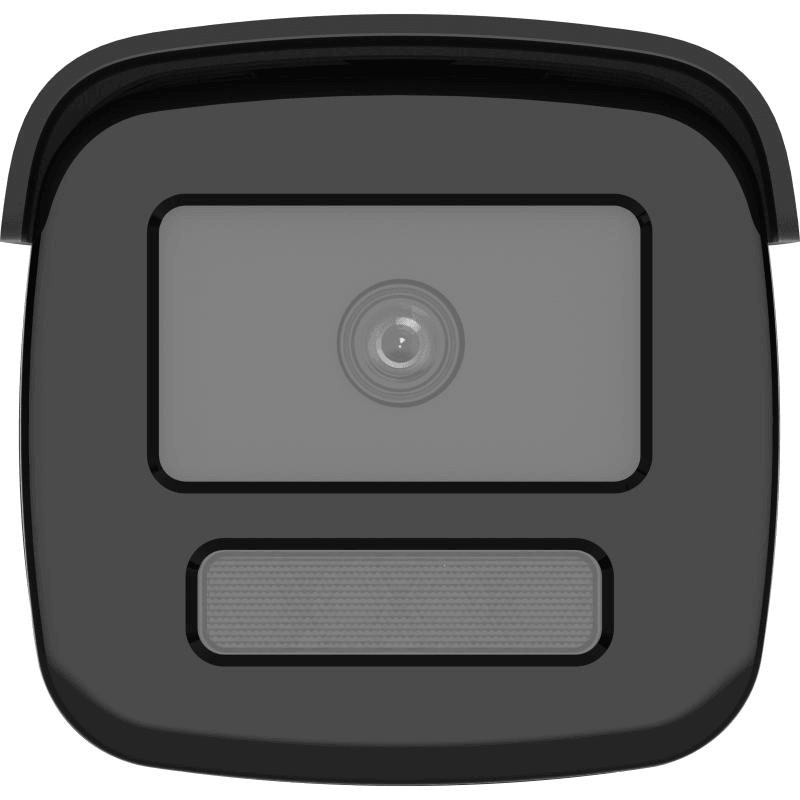

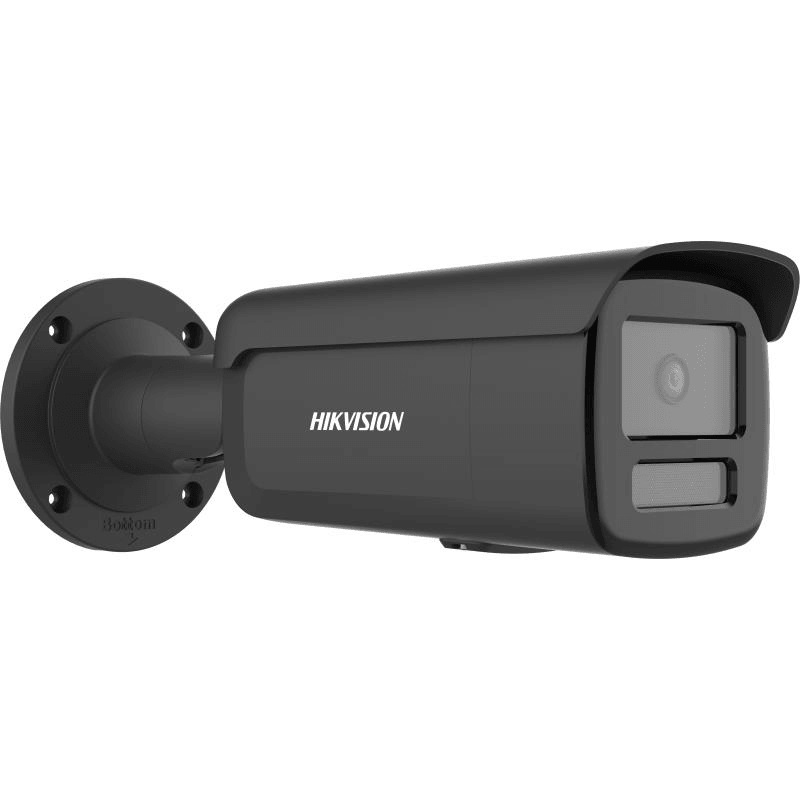

HIK 8MP ACUSENSE F1.0 BULLET 2.8MM DS-2CD2T86G2H-2
DS-2CD2T86G2H-2I(2.8mm)(eF)/BLACK
Experience stunning 8 MP resolution and superior low-light performance with the power of DarkFighter technology. Capture clear images even in strong backlight thanks to 120 dB WDR technology. With advanced H.265+ compression, this camera efficiently stores your footage.
Plus, its deep learning capabilities allow for precise human and vehicle classification. Designed to withstand any weather, it's water and dust resistant (IP67). Say hello to the HIK 8MP ACUSENSE F1.0 BULLET 2.8MM DS-2CD2T86G2H-2, the ultimate security solution.
FEATURES:
- High quality imaging with 8 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back light due to 120 dB WDR technology
-
Efficient H.265+ compression technology
-
Focus on human and vehicle classification based on deep learning
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 3840x2160
-
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
-
Shutter Time1/3 s to 1/100,000 s
-
Day & Night IR cut filter
-
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
-
Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
-
Depth Of Field
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
- DORI
-
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Illuminator
-
Supplement Light Type IR
-
Supplement Light Range 2I: up to 60 m; 4I: up to 80 m
-
Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Mainstream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Mainstream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
-
Video Bitrate 32 Kbps to 16 Mbps
-
H.264 Type Baseline Profile,Main Profile,High Profile
-
H.265 TypeMain Profile
-
BitRate Control CBR,VBR
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
-
Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Deep Learning Function
- Face Capture Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power-2I: 12V DC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W 4I: 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material Front cover: metal, body: metal, bracket: metal
- Dimension 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
-
Package Dimensions 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight Approx. 1180 g (2.6 lb.)
-
With Package Weight Approx. 1829 g (4.3 lb.)
-
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
General Function Heartbeat,mirror,password reset via email,pixel counter,anti-banding
-
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32: 2015
-
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
