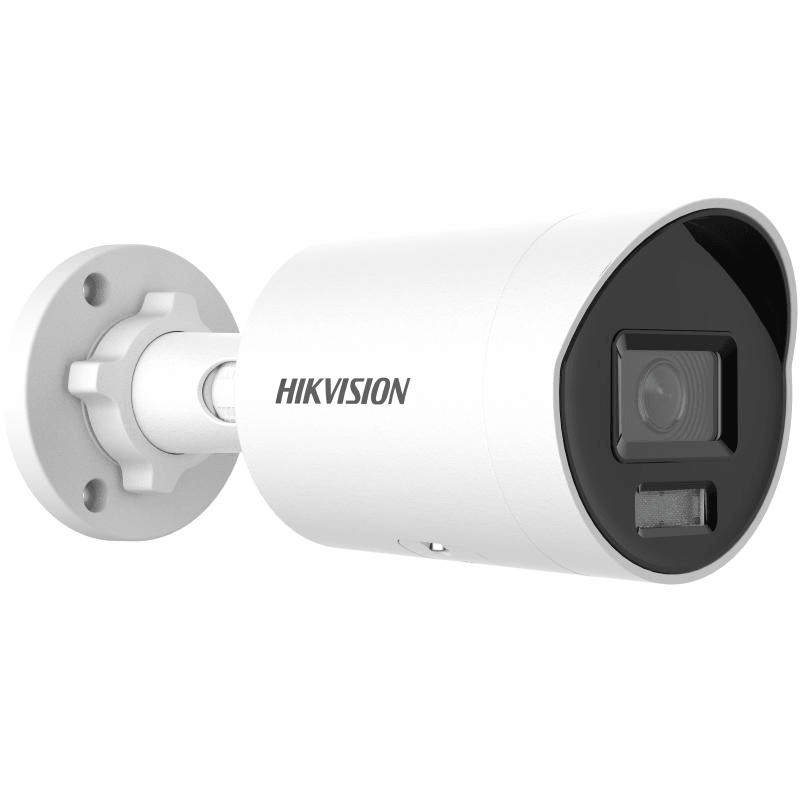

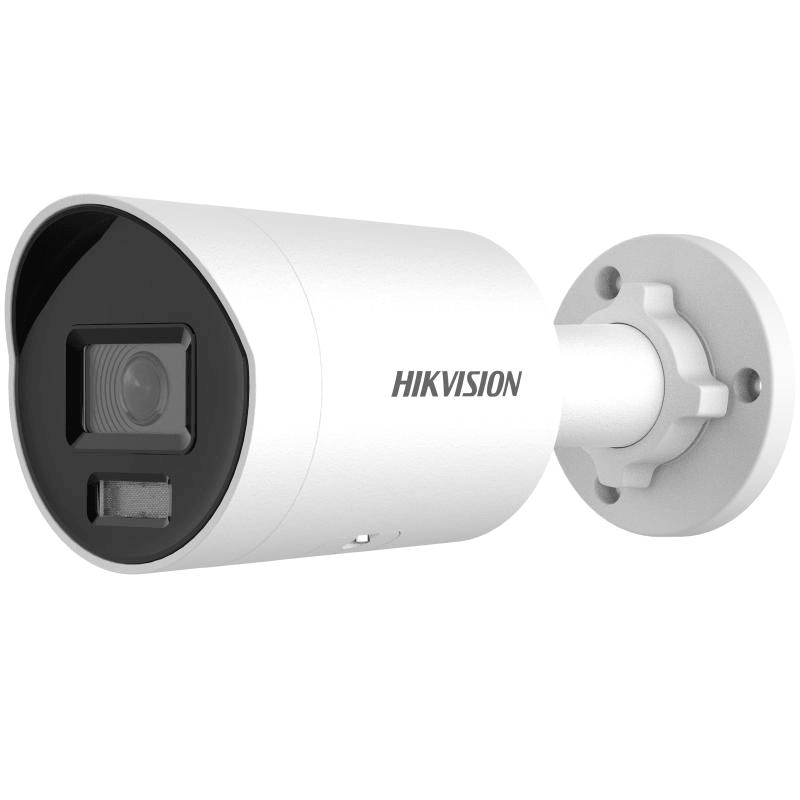

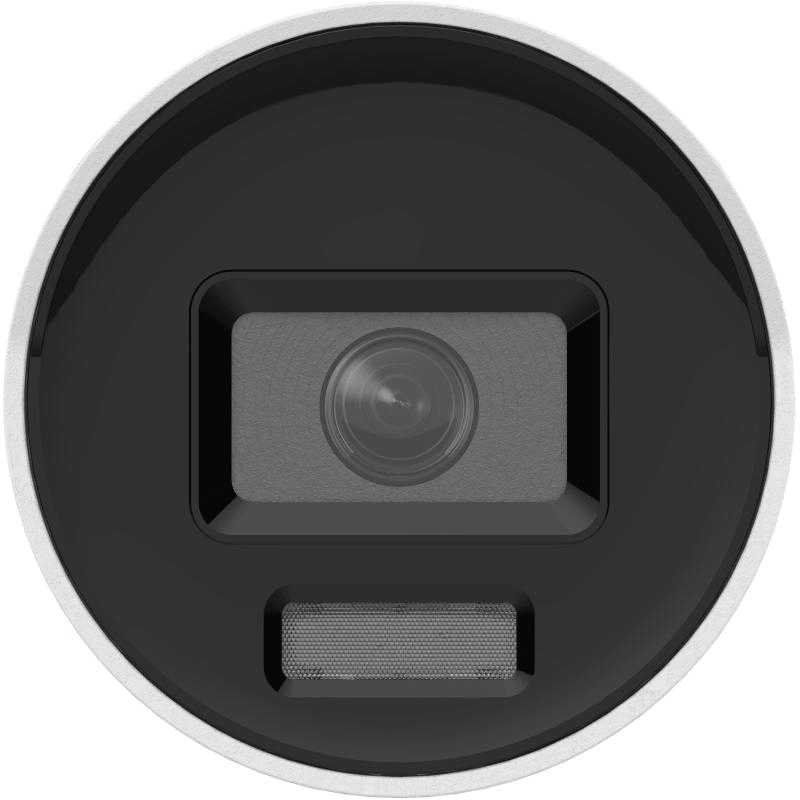

HIK 8MP ACUSENSE F1.0 BULLET 2.8MM DS-2CD2086G2H-I
DS-2CD2086G2H-IU(2.8mm)(eF)
Experience the power of Hikvision AcuSense technology, utilizing deep learning algorithms to detect and classify human and vehicle targets. With increased efficiency and effectiveness, our system brings advanced alarms to both front- and back-end devices, revolutionizing security measures.
FEATURES:
- High quality imaging with 8 MP resolution
-
Excellent low-light performance via powered-by-DarkFighter technology
-
Clear imaging against strong back light due to 120 dB WDR technology
-
Efficient H.265+ compression technology
-
Focus on human and vehicle classification based on deep learning
-
-U: Built-in microphone for real-time audio security
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 3840x2160
-
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
-
Shutter Time1/3 s to 1/100,000 s
-
Day & Night IR cut filter
-
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
-
Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
-
Depth Of Field
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
- DORI
-
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Illuminator
-
Supplement Light Type IR
-
Supplement Light Range Up to 40 m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Mainstream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Mainstream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
-
Video Bitrate 32 Kbps to 16 Mbps
-
H.264 Type Baseline Profile,Main Profile,High Profile
-
H.265 TypeMain Profile
-
Bitrate Control CBR,VBR
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
-
Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate-U: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
-
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Environment Noise Filtering-U: Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
-
Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Deep Learning Function
- Face Capture Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
- Material Front cover: metal, body: metal, bracket: Metal
-
DimensionØ74.4 mm × 179.2 mm (Ø2.9" × 7.1")
-
Package Dimensions 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
- Weight Approx. 525 g (1.2 lb.)
-
With Package Weight Approx. 750 g (1.7 lb.)
-
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32: 2015
-
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
