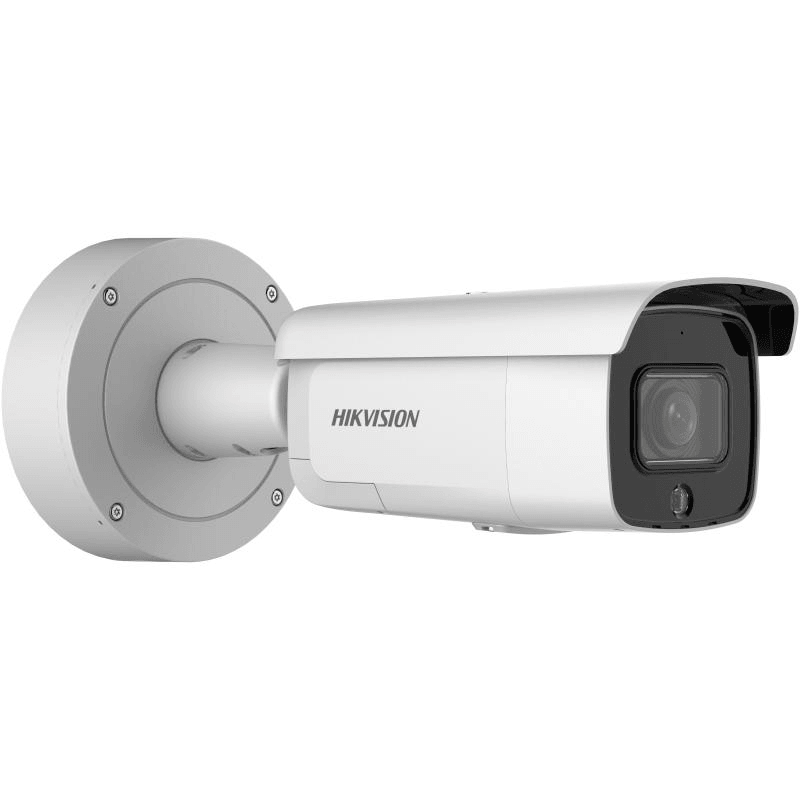

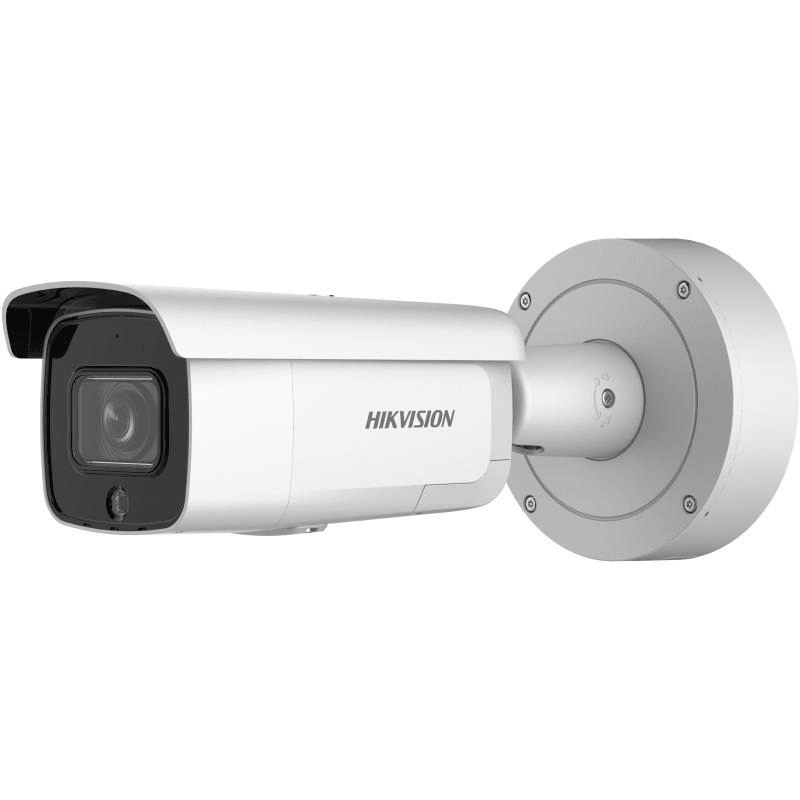

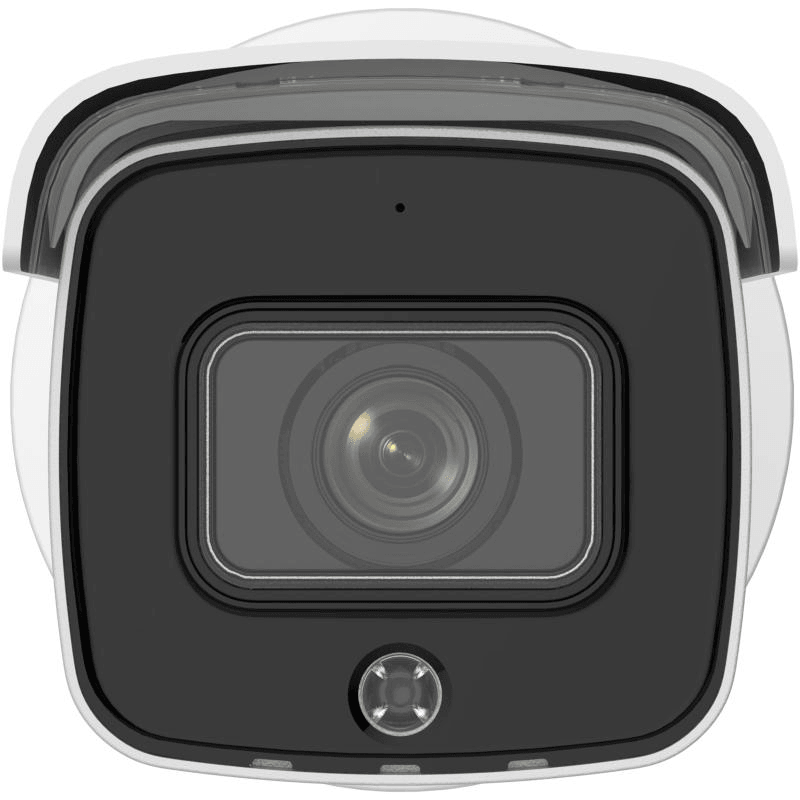

HIK 8MP 4K ACUSENSE VARIFOCAL BULLET 2.8-12MM
HIK 8MP 4K ACUSENSE VARIFOCAL BULLET 2.8-12MM
DS-2CD2686G2-IZSU/SL(2.8-12mm)(C)
Harnessing the power of deep learning algorithms, Hikvision AcuSense technology delivers advanced classification alerts for human and vehicle targets on both front-end and back-end devices. This revolutionary system specifically targets humans and vehicles, greatly enhancing the efficiency and effectiveness of alarms.
FEATURES:
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP66) and vandal resistant (IK10)
SPECS:
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 3840x2160
- Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
- Lens MountØ14
- Iris Type Fixed
- Aperture F1.4
- DORI
-
DORI
2.8 to 12mm:
Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
MainStream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Mainstream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bitrate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bitrate Control CBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Target Cropping Yes
- Audio
- Audio Type Mono sound
- Audio Compression G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate 8khz/16kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Built-In Microphone Yes
- Built-In SpeakerPower: 2 W. Max. sound pressure level: 10 cm: 97 dB.
-
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm
Visual alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
- Deep Learning Function
- Face Capture Yes
- General
-
Power
12V DC ± 25%, 1.21 A, max. 14.5 W, two-core terminal block
PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W
- DimensionØ144.1 mm × 342.7 mm (Ø5.7" × 13.6")
- Package Dimensions 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
- Weight Approx. 1450 g (3.2 lb.)
- With Package Weight Approx. 2541 g (5.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
